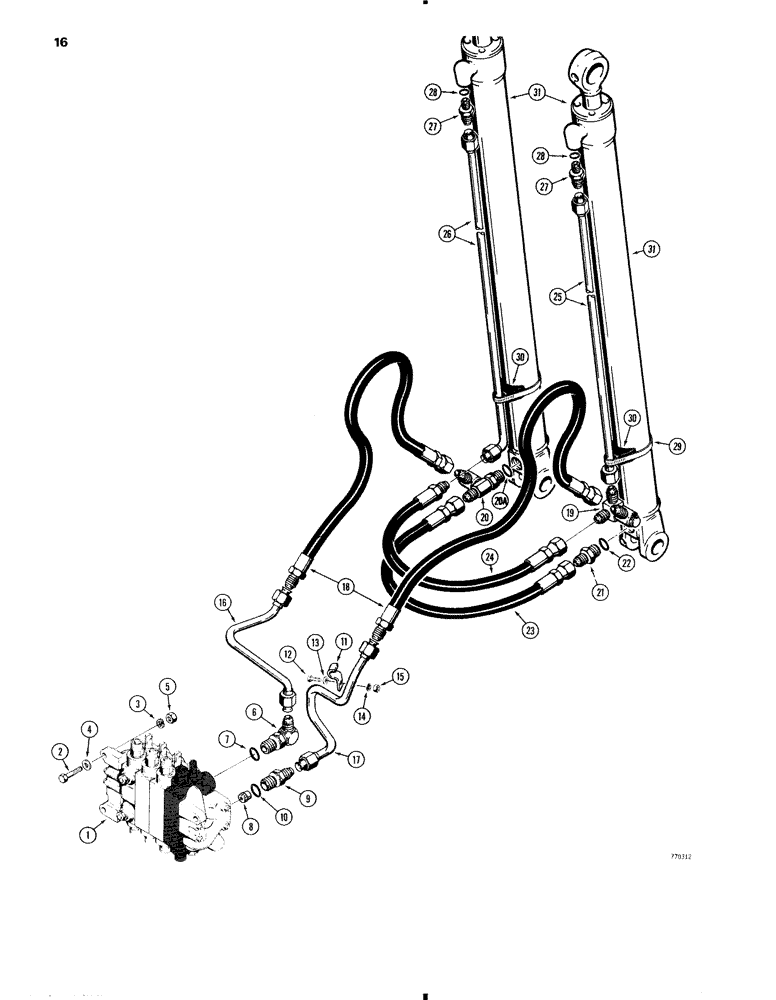

Запчасти Case 35 (016) - BOOM CYLINDER HYDRAULICS, BEFORE BACKHOE SN 5356938

1

REF

INSTRUCTION

VALVE - backhoe control, parts list Figure 30

1шт.

2

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

92-8

LOCK WASHER,1/2"

3шт.

4

95-8

WASHER,1/2"

flat 1/2"

3шт.

5

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

6

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - 90 degree, adjustable, upper port, Includes: Ref. 7

1шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

8

D56252

FITTING

RESTRICTOR - check

1шт.

9

L55143

FITTING

FITTING - special adapter, lower port, Includes: Ref. 10

1шт.

10

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

11

D41165

CLAMP,19mm ID, 10.5mm Bolt Hole, J Type

- tube

2шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

13

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

16

D73053

TUBE

- upper valve port

1шт.

17

D73055

TUBE

- lower valve port

1шт.

18

D55562

HOSE,15.88mm ID x 965.2mm L, SAE 100R2

- to cylinders, 38" (965 mm) long

2шт.

19

D60947

FITTING

- swivel, RH, parts list Figure 40

1шт.

20

D60948

JOINT

FITTING- swivel, LH, parts list Figure 40, Includes: Ref. 20A

1шт.

20a

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

21

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITING - straight, male adapter, Incl. Ref. 22

1шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

23

CASD50053

HOSE - crossover, closed end circuit, 23" (584 mm) long

1шт.

24

D55563

HOSE

- crossover, rod end circuit, 21" (533 mm) long

1шт.

25

D55564

TUBE

- to rod end of RH cylinder

1шт.

26

D55566

TUBE

- to rod end of LH cylinder

1шт.

27

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - straight, male adapter, Includes: Ref. 28

2шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

29

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - cylinder tube

2шт.

30

D38648

BLOCK

SPACER - clamp

2шт.

31

REF

INSTRUCTION

CYLINDER - boom, parts list Figure 56 or 58

2шт.
