Запчасти Case 35 (112) - DECALS AND SMV EMBLEM

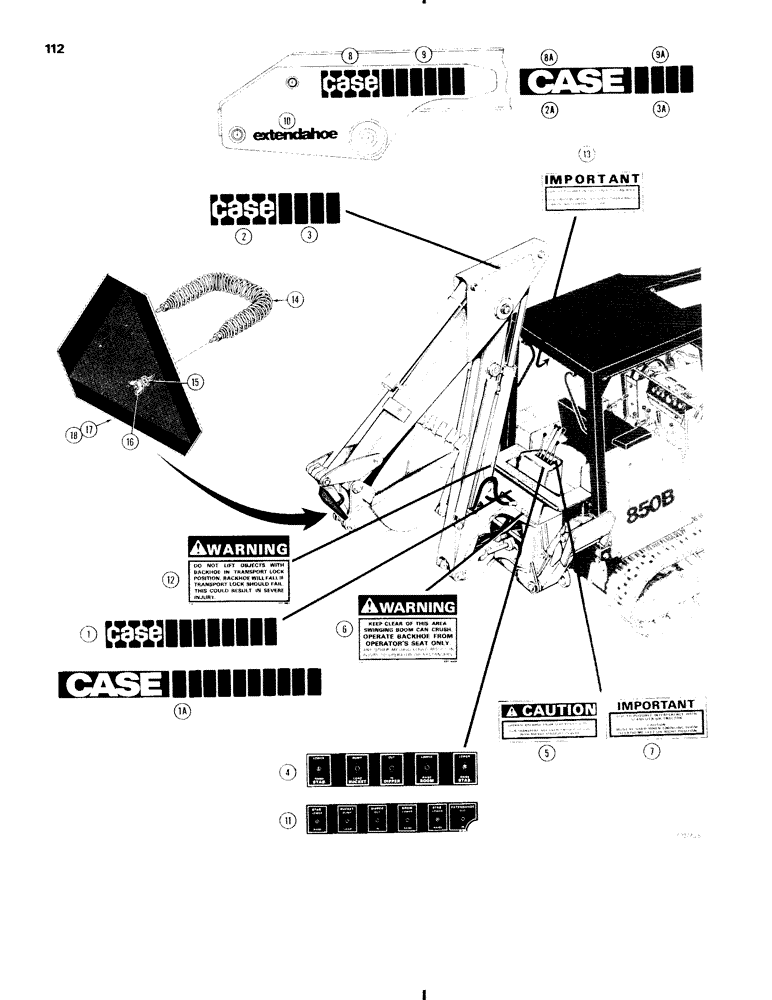

Схема запчастей Case 35 - (112) - DECALS AND SMV EMBLEM

Артикул

Название

Примечание

Количество

1

321-3109

DECAL

- "case'', with tread, if used

1шт.

1a

321-5066

DECAL

- "CASE'', with tread, if used

1шт.

2

321-3182

DECAL

- "case'', with tread, RH, standard backhoe dipper

1шт.

2a

321-5129

DECAL

- "CASE'', with tread, RH, standard backhoe dipper, if used

1шт.

3

321-3183

DECAL

- "case'', with tread, LH, standard backhoe dipper

1шт.

3a

321-5130

DECAL

- "CASE'', with tread, LH, standard backhoe dipper, if used

1шт.

4

321-2192

DECAL

- operator's instructions

1шт.

5

321-3056

DECAL

- caution, transport

1шт.

6

321-4481

DECAL

- warning, swing

2шт.

7

321-3058

DECAL

- important, swing

1шт.

8

321-3135

DECAL

- "case'', with tread, LH, extendable dipper, if used

1шт.

8a

321-5129

DECAL

- "CASE'', with tread, LH, extendable dipper, if used

1шт.

9

321-3134

DECAL

- "case'', with tread, RH, extendable dipper, if used

1шт.

9a

321-5130

DECAL

- "CASE'', with tread, RH, extendable dipper, if used

1шт.

10

321-3139

DECAL

- "Extendahoe''

2шт.

11

321-3975

DECAL

- operators instructions, extendahoe

1шт.

12

321-4681

DECAL

- warning, craning

1шт.

13

321-3170

DECAL

- important, extendable dipper

1шт.

14

D52564

SPRING

- SMV emblem retaining

1шт.

15

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

2шт.

16

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

2шт.

17

D52581

TRAFFIC SIGN

EMBLEM - plate and decal, Includes: Ref. 18

1шт.

18

321-1751

DECAL

- emblem

1шт.

19

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Used when storing emblem only, not shown Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

20

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Used when storing emblem only, not shown

2шт.

Выбрано товаров: 25
