Запчасти Case 35 (110) - *EXTENDABLE DIPPER CONTROL, 850 AND 850B ONLY

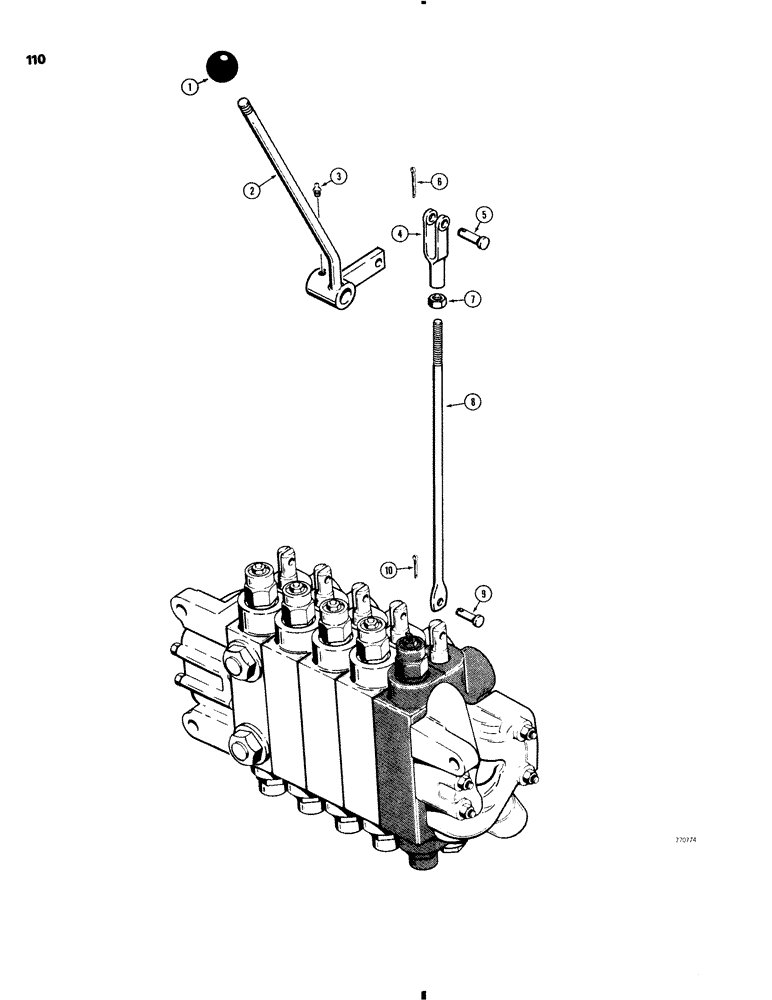

Схема запчастей Case 35 - (110) - *EXTENDABLE DIPPER CONTROL, 850 AND 850B ONLY

Артикул

Название

Примечание

Количество

1

D59912

KNOB

- lever

1шт.

2

D67768

HANDLE

LEVER - control, extendable dipper

1шт.

3

219-4

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

4

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - rod, 3/8"

1шт.

5

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

6

132-26

COTTER PIN

PIN - cotter, 3/32" x 5/8"

1шт.

7

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF

1шт.

8

D67783

ROD

- extendable dipper

1шт.

9

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

1шт.

10

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

Выбрано товаров: 10
