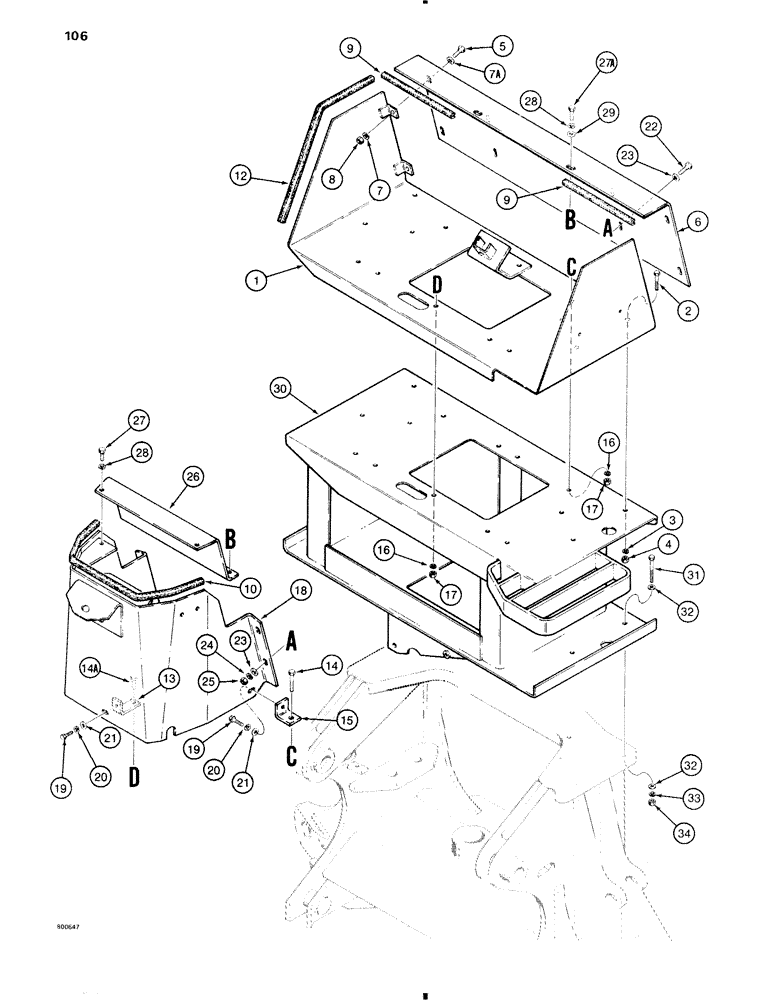

Запчасти Case 35 (106) - BACKHOE CONTROL TOWER, W14 LOADER

1

L100414

SPARE PART AND FOOT SHIELDS - top

1шт.

2

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

25-106

NUT,3/8"-16, G5

4шт.

5

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

6

L100426

SPARE PART Console and foot shields

1шт.

7

92-6

LOCK WASHER,3/8"

4шт.

7a

195-25

WASHER,3/8"

4шт.

8

25-106

NUT,3/8"-16, G5

4шт.

9

REF

INSTRUCTION

TRIM - edge, 10-1/2" (268 mm) long, cut from D52812, see below

2шт.

10

REF

INSTRUCTION

TRIM - edge, 26" (660 mm) long, cut from D52812, see below

1шт.

12

D35424

LINING

TRIM - edge, 16" (406 mm) long

2шт.

13

D52697

STRAP

BRACKET - center panel anchor

1шт.

14

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

15

D50287

SUPPORT

BRACKET - mounting, center panel

1шт.

16

92-6

LOCK WASHER,3/8"

3шт.

17

25-106

NUT,3/8"-16, G5

3шт.

18

L100412

SPARE PART PANEL, center

1шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

20

92-6

LOCK WASHER,3/8"

3шт.

21

915-25

WASHER - flat, 3/8"

3шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

23

195-25

WASHER,3/8"

8шт.

24

92-6

LOCK WASHER,3/8"

4шт.

25

25-106

NUT,3/8"-16, G5

4шт.

26

D67782

PANEL

Console, top

1шт.

27

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

27a

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

2шт.

28

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

29

195-25

WASHER,3/8"

8шт.

30

L100413

SPARE PART BASE - foot shield

1шт.

31

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.

32

195-25

WASHER,3/8"

8шт.

33

192-21

LOCK WASHER,3/8"

4шт.

34

25-106

NUT,3/8"-16, G5

4шт.

D52812

RUBBER STRIP

TRIM - edge, 83" (2108 mm) long

1шт.
