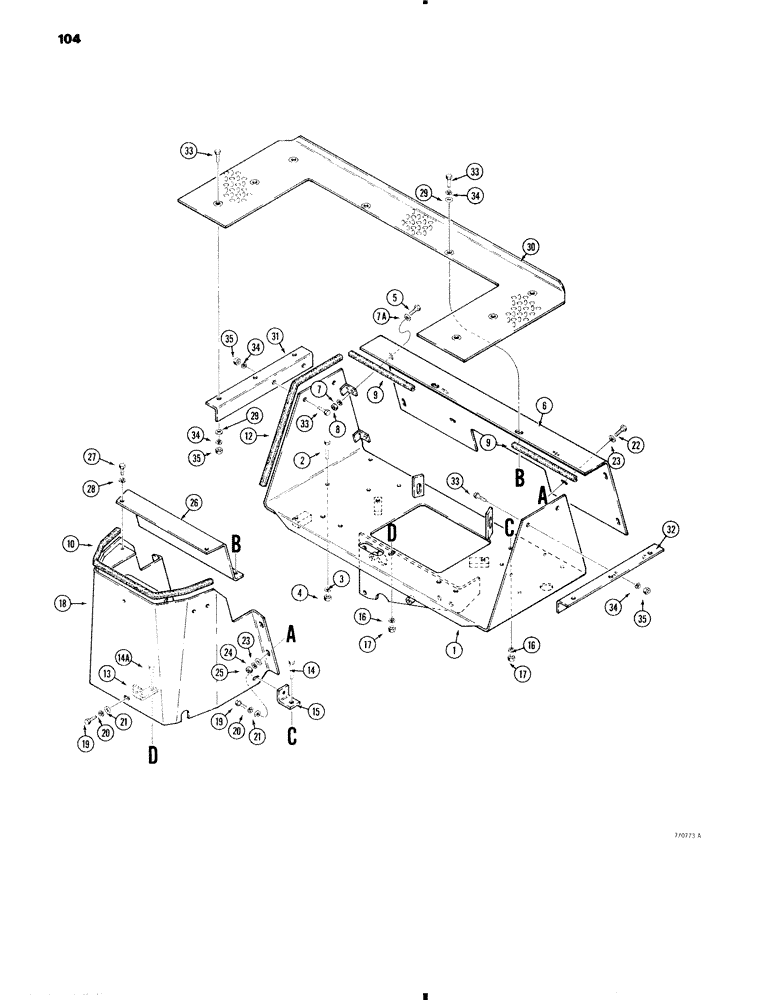

Запчасти Case 35 (104) - BACKHOE CONTROL TOWER, CRAWLER MODELS

1

D67788

PLATE AND FOOT SHIELDS - mounting frame, top

1шт.

2

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

5

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

6

D67779

PANEL

- console and foot shields

1шт.

7

92-6

LOCK WASHER,3/8"

4шт.

7a

195-25

WASHER,3/8"

- flat, 3/8"

4шт.

8

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

9

D49094

LINING

GUARD - edge, 10-1/2" (268 mm) long

2шт.

10

REF

INSTRUCTION

GUARD - edge, 26" (660 mm) long, cut from D52812, see below

1шт.

For W14 Backhoe Control Tower, see Figure 106.

1шт.

11

RESERVED

1шт.

12

D35424

LINING

GUARD - edge, 16" (406 mm) long

2шт.

13

D52697

STRAP

BRACKET - center panel anchor

1шт.

14

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

14a

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

15

D78232

BRACKET - mounting, center panel

2шт.

16

92-6

LOCK WASHER,3/8"

3шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

18

D67778

CONSOLE

PANEL - console, center

1шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

20

92-6

LOCK WASHER,3/8"

3шт.

21

195-25

WASHER,3/8"

- flat, 3/8"

3шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

23

195-25

WASHER,3/8"

- flat, 3/8"

8шт.

24

92-6

LOCK WASHER,3/8"

4шт.

25

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

26

D67782

PANEL

- console, top

1шт.

27

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

28

92-6

LOCK WASHER,3/8"

4шт.

29

195-25

WASHER,3/8"

- flat, 3/8"

2-10шт.

30

R38625

PLATFORM - control tower, 850 and 850B

2шт.

30

R43047

PLATFORM - control tower, 450 and 450B, not shown

1шт.

31

R38631

BRACKET - platform, LH, 850 and 850B

1шт.

31

R43043

BRACKET - platform, LH, 450 and 450B, not shown

1шт.

32

R38630

BRACKET - platform, RH, 850 and 850B

1шт.

32

R43044

BRACKET - platform, RH, 450 and 450B, not shown

1шт.

33

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2-12шт.

33

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

If used Hex, 3/8"-16 x 1 1/4", G5, Full Thd

8шт.

34

92-6

LOCK WASHER,3/8"

10-12шт.

35

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

8-10шт.

D52812

RUBBER STRIP

GUARD - edge, 83" (2108 mm) long

1шт.

For W14 Backhoe Control Tower, see Figure 106.

1шт.
