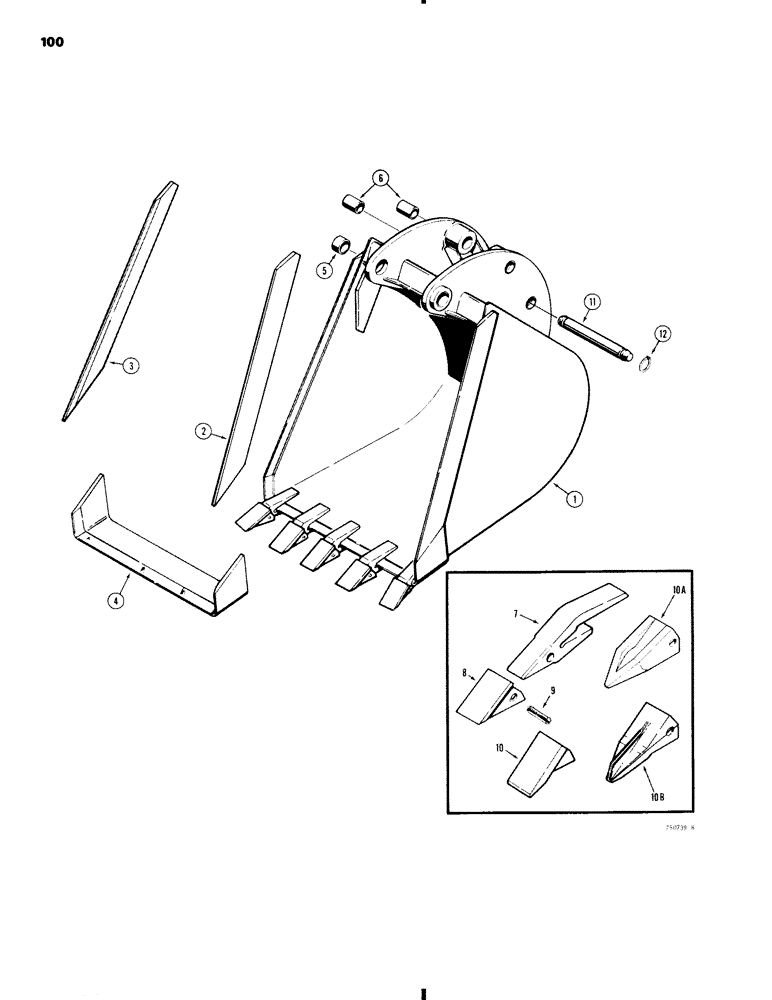

Запчасти Case 35 (100) - BACKHOE BUCKETS, TRENCHING BUCKETS - HEAVY DUTY, TOOTH ASSEMBLY, D41679 PIN KIT

1

D57546

BUCKET

- 18 inch (457 mm) machinery item - see Figure 2 for ordering, Includes: Ref. 2 - 6

1шт.

2

D57550

EDGE, CUTTING

BLADE - cutting, RH side

1шт.

3

D57551

EDGE, CUTTING

BLADE - cutting, LH side

1шт.

4

D57594

EDGE, CUTTING

BLADE - cutting, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, at bucket link

4шт.

1

D57544

BUCKET

- 24 inch (610 mm) machinery item - see Figure 2 for ordering, Includes: Ref.

1шт.

2

D57550

EDGE, CUTTING

BLADE - cutting, RH side

1шт.

3

D57551

EDGE, CUTTING

BLADE - cutting, LH side

1шт.

4

D57591

EDGE, CUTTING

BLADE - cutting, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, at bucket link

4шт.

1

D57543

BUCKET

- 30 inch (762 mm) machinery item - see Figure 2 for ordering, Includes: Ref. 2 - 6

1шт.

2

D57550

EDGE, CUTTING

BLADE - cutting, RH side

1шт.

3

D57551

EDGE, CUTTING

BLADE - cutting, LH side

1шт.

4

D57559

EDGE, CUTTING

BLADE - cutting, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, at bucket link

4шт.

1

D57545

BUCKET

- 36 inch (914 mm) machinery item - see Figure 2 for ordering, Includes: Ref. 2 - 6

1шт.

2

D57550

EDGE, CUTTING

BLADE - cutting, RH side

1шт.

3

D57551

EDGE, CUTTING

BLADE - cutting, LH side

1шт.

4

D57595

EDGE, CUTTING

BLADE - cutting, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, at bucket link

4шт.

D48035

TOOTH

ASSEMBLY - heavy duty bucket only, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

SHANK - tooth assy.

1шт.

8

D39093

TOOTH

POINT - tooth assy.

1шт.

9

D39094

BUCKET TOOTH KEY

FLEX PIN - point assy.

1шт.

10

D44193

TOOTH

POINT - tooth, heavy duty, flat end, service option assy.

1шт.

10a

D80119

TOOTH

POINT - tooth, heavy duty, point end, service option assy.

1шт.

10b

D79100

TOOTH

POINT - tooth, heavy duty, star point, service option assy.

1шт.

D41679

KIT

- pin, bucket, Includes: Ref. 11 and 12

1шт.

11

D30899

PIVOT PIN,38.1mm OD x 338.14mm L

PIN - bucket to bucket link D41679 kit

1шт.

12

D25279

SNAP RING,M35, Int

RING - snap D41679 pin kit

2шт.
