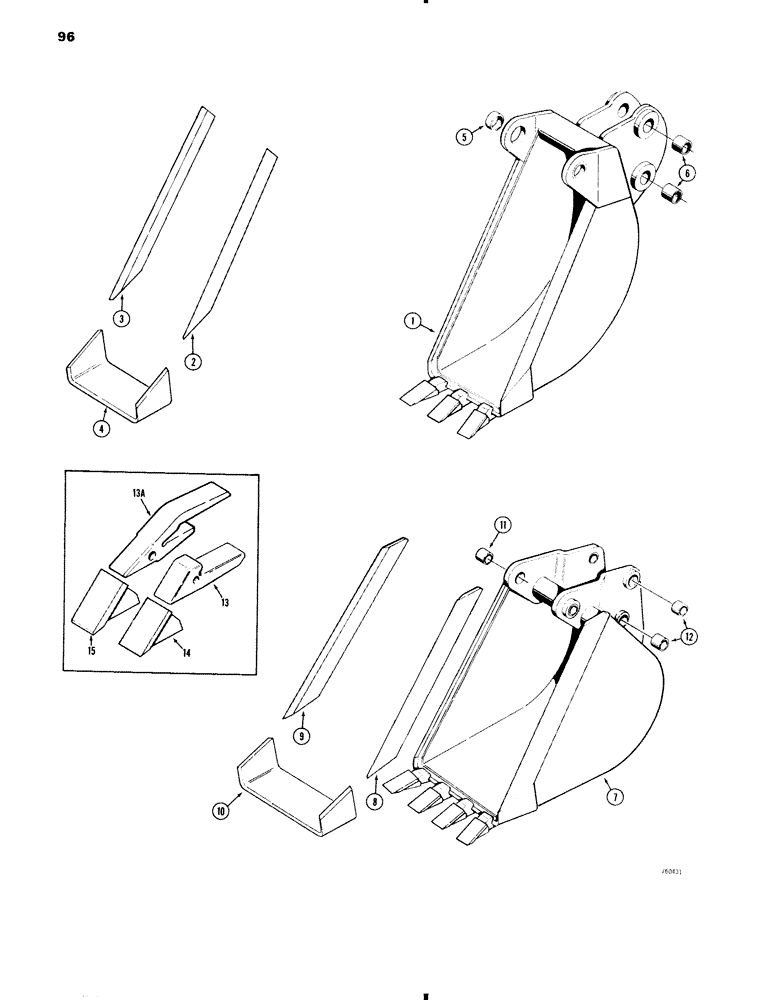

Запчасти Case 35 (096) - BACKHOE BUCKETS, TRENCHING BUCKETS

1

D52642

BUCKET

- 12 inch (305 mm) machinery item - see Figure 2 for ordering, Includes: Ref. 2 - 6

1шт.

2

D29424

EDGE, CUTTING

BLADE - cutting, RH side

1шт.

3

D29423

EDGE, CUTTING

BLADE - cutting, LH side

1шт.

4

D37464

EDGE, CUTTING

BLADE - cutting, center

1шт.

5

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

- bucket, at dipper arm

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole

4шт.

7

D37473

BUCKET

- 18 inch (457 mm) machinery item - see Figure 2 for ordering, Includes: Ref. 8 - 12

1шт.

8

D21606

EDGE, CUTTING

BLADE - cutting, RH side

1шт.

9

D21605

EDGE, CUTTING

BLADE - cutting, LH side

1шт.

10

D37642

EDGE, CUTTING

BLADE - cutting, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, upper and lower bucket link pin hole

4шт.

7

D37474

BUCKET

- 24 inch (610 mm) machinery item - see Figure 2 for ordering

1шт.

8

D21606

EDGE, CUTTING

BLADE - cutting, RH side

1шт.

9

D21605

EDGE, CUTTING

BLADE - cutting, LH side

1шт.

10

D37505

EDGE, CUTTING

BLADE - cutting, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, upper and lower bucket link pin hole

4шт.

7

D37475

BUCKET

- 30 inch (762 mm) machinery item - see Figure 2 for ordering

1шт.

8

D21606

EDGE, CUTTING

BLADE - cutting, RH side

1шт.

9

D21605

EDGE, CUTTING

BLADE - cutting, LH side

1шт.

10

D37471

EDGE, CUTTING

BLADE - cutting, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, upper and lower bucket link pin hole

4шт.

7

D37476

BUCKET

- 36 inch (914 mm) machinery item - see Figure 2 for ordering, Includes: Ref. 8 - 12

1шт.

8

D21606

EDGE, CUTTING

BLADE - cutting, RH side

1шт.

9

D21605

EDGE, CUTTING

BLADE - cutting, LH side

1шт.

10

D37507

EDGE

BLADE - cutting, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, upper and lower bucket link pin hole

4шт.

13

D26368

SUPPORT

SHANK - tooth, original equipment

1шт.

13a

D58499

SUPPORT

SHANK - tooth, service option

1шт.

14

D58576

TOOTH

POINT - tooth, H and L manufactured, 4-7/8" long (124 mm)

1шт.

14

D58577

TOOTH

POINT - tooth, Fabco manufactured, 4-3/4" long (121 mm)

1шт.

15

D58592

TOOTH

POINT - tooth, H and L manufactured, heavy duty service option, 4-7/8" (124 mm) long

1шт.

15

D58593

TOOTH

POINT - tooth, Fabco manufactured, heavy duty service option, 4-7/8" (124 mm) long

1шт.
