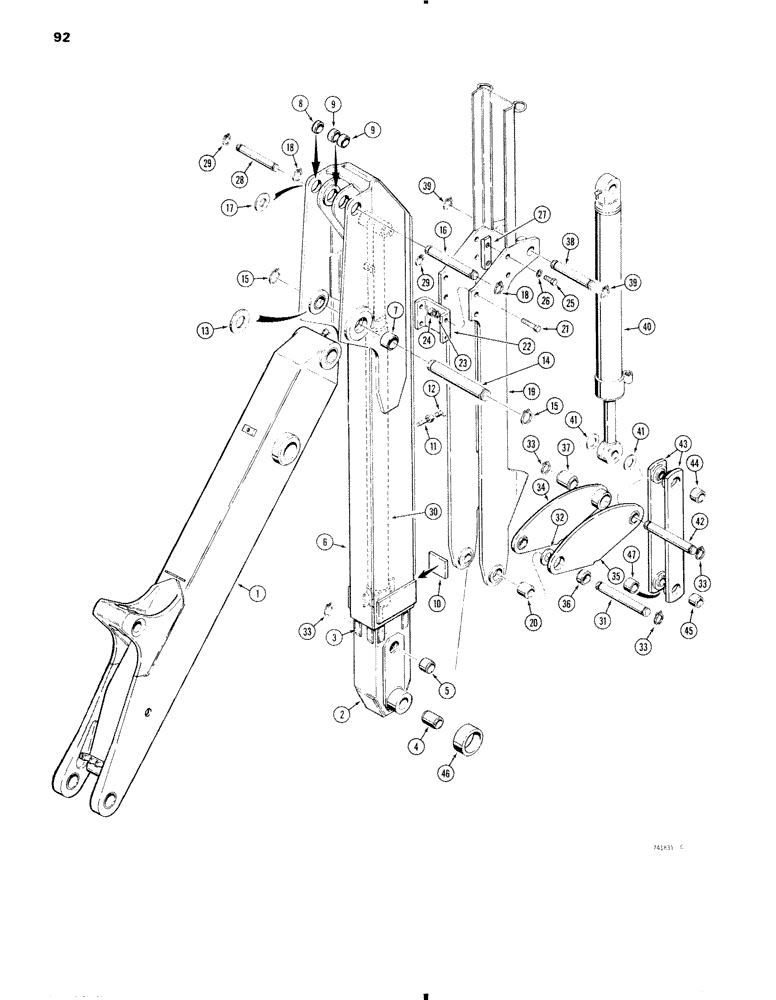

Запчасти Case 35 (092) - EXTENDABLE DIPPER, 850 AND 850B ONLY

1

REF

INSTRUCTION

BOOM - backhoe, see Figure 86

1шт.

2

D55727

ARM

DIPPER ARM ASSEMBLY - extension, Includes: Ref. 3 - 5

1шт.

3

D55688

STRIP

WEAR STRIP - dipper slide, steel

8шт.

4

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

- dipper arm, at bucket

2шт.

5

D37443

BUSHING,44.68mm ID x 57.15mm OD x 50.8mm L

- dipper arm, at bucket link

2шт.

D73826

COVER

KIT - dipper housing, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - dipper, Includes: Ref. 7 - 9

1шт.

7

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- at boom

2шт.

8

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- at dipper cylinder, LH side plate

1шт.

9

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

- dipper cylinder, inner plate

2шт.

10

D61708

BLOCK

- stop

1шт.

11

219-107

NOZZLE CAP

NOZZLE - extension, grease fitting

1шт.

12

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , If used 90º, 1/8" NPT x .84" lg

1шт.

12

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

FITTING - grease, 45º, 1/8" NPT, if used

1шт.

13

D53561

BUSHING

SPACER - dipper housing to boom, 3/4" (19 mm) thick, if used

2шт.

13

D81915

BUSHING

SPACER - dipper housing to boom, 3/8" (10 mm) thick, if used

4шт.

14

D45034

PIN

- dipper, Serial Range: housing-boom

1шт.

15

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

16

D37611

PIVOT PIN,44.45mm OD x 255.59mm L

PIN - dipper cylinder to dipper housing

1шт.

17

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat

4шт.

18

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

19

D61744

ARM

EXTENSION ASSEMBLY - dipper, Includes: Ref. 20

1шт.

20

D52521

BUSHING,44.68mm ID x 57.15mm OD x 26.92mm L

- bucket link pin

2шт.

21

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2" - 13 NC x 1-3/4"

4шт.

22

D61701

BRACE

PLATE - guide

1шт.

23

92-8

LOCK WASHER,1/2"

4шт.

24

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

25

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

26

92-8

LOCK WASHER,1/2"

4шт.

27

D54095

BLOCK

- guide

2шт.

28

D44882

PIN,38.1mm OD x 203.2mm L

- extension, Serial Range: cylinder-housing

1шт.

29

D25279

SNAP RING,M35, Int

RING - pin retaining

2шт.

30

REF

INSTRUCTION

CYLINDER - hydraulic, dipper extension, see Figures 68 or 70 for proper cylinder

1шт.

31

D53818

PIN,44.45mm OD x 278.89mm L

- dipper and dipper extension to bucket links

1шт.

32

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- plain, bucket link to extension

1шт.

33

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

34

D61088

LINK

- dipper and extension to dump links, LH

1шт.

35

D61087

LINK

- dipper and extension to dump links, RH, Includes: Ref. 36 and 37

1шт.

36

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

- link, at dipper arm

1шт.

37

D42788

BUSHING,44.68mm ID x 53.98mm OD x 28.57mm L

- link, at bucket cylinder

1шт.

38

D37602

PIN

- bucket cylinder to dipper extension

1шт.

39

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

40

REF

INSTRUCTION

CYLINDER - hydraulic, bucket, see Figures 64 or 66 for proper cylinder

1шт.

41

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- plain, bucket cylinder to links

1шт.

42

D53818

PIN,44.45mm OD x 278.89mm L

- bucket, Serial Range: cylinder-links

1шт.

43

D61244

LINK

- bucket dump, Includes: Ref. 44 and 45

2шт.

44

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- link, at cylinder

1шт.

45

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- link, at bucket

1шт.

46

D52578

BUSHING

SPACER - dipper arm to bucket, if used

2шт.

47

D37450

SPACER,40.89mm ID x 48.26mm OD x 63.5mm L

SPACER - bucket link

1шт.
