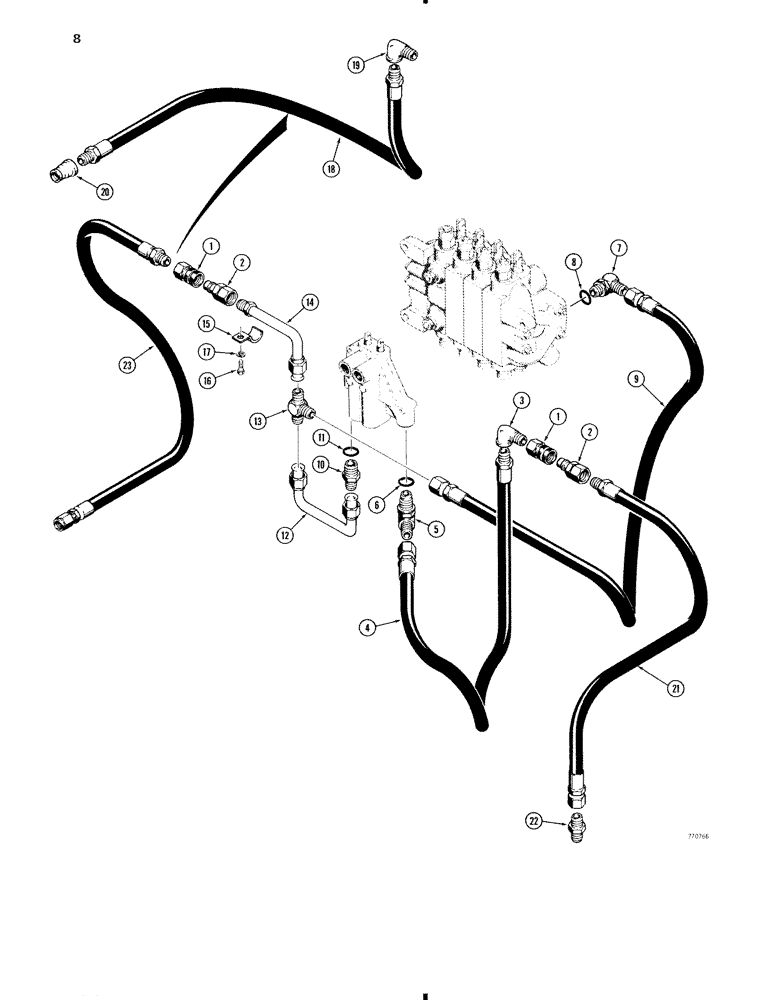

Запчасти Case 35 (008) - *TRACTOR TO BACKHOE HYDRAULICS, 850 AND 850B ONLY, USED ON 850 ONLY, USED ON 850B ONLY

1

D52800

COUPLING, QUICK, FEM

COUPLING - disconnect, female, parts list Figure 42

2шт.

2

D52694

QUICK MALE COUPLING

COUPLING - disconnect, male, parts list Figure 42

2шт.

3

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

4

D56094

HOSE

- to stabilizer valve inlet, 39" (991 mm) long

1шт.

5

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Includes: Ref. 6 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

7

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

adjustable, Incl. Ref. 8 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

8

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

9

D67792

HOSE

- backhoe valve return, models without extendable dipper, 32" (813 mm) long

1шт.

9

D73346

HOSE

- backhoe valve return, models with extendable dipper, 34" (864 mm) long

1шт.

10

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - male, straight adapter, Includes: Ref. 11

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

12

D68315

TUBE

- stabilizer valve return

1шт.

13

218-590

TEE,37º, 1 5/16"-12 x 1 1/16"-12, Run

FITTING - tee, backhoe return

1шт.

14

D72091

HYD TUBE,1" OD x 4.1, 5.1" L

TUBE - backhoe return

1шт.

15

D55880

CLAMP

- tube

1шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

17

92-6

LOCK WASHER,3/8"

1шт.

18

R36579

HOSE - backhoe return to tractor, 30" (762 mm) long, used on 850 only

1шт.

19

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street, Used on 850 only 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

20

221-354

FITTING - straight, adapter, used on 850 only

1шт.

21

R35843

HOSE - pressure, from tractor relief valve, 15" (381 mm) long, used on 850 only

1шт.

22

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - straight, adapter, used on 850 only; Incl. 237-6016 O-Ring

1шт.

23

L25634

FLEXIBLE HOSE

HOSE - backhoe return to tractor, 53" (1346 mm) long, used on 850 only

1шт.
