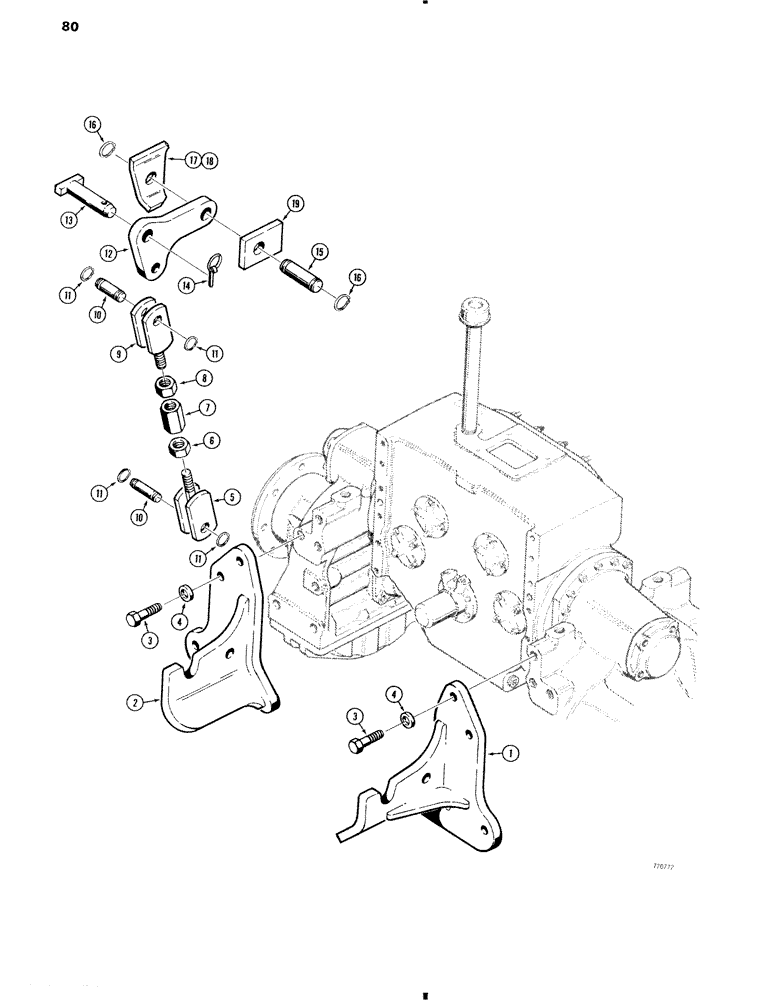

Запчасти Case 35 (080) - BACKHOE MOUNTING PARTS, 850B ONLY

1

R38040

ARM - support, lower, RH

1шт.

2

R38039

ARM - support, lower, LH

1шт.

3

13-1644

BOLT,Hex, 1" - 8 x 2-3/4", Gr 5

- hex, 1" - 8 NC x 2-3/4"

8шт.

4

D30196

WASHER

- hardened

8шт.

5

R36824

ROD

- tension, RH threads

2шт.

6

25-1116

NUT,1"-14, G5

- hex, 1" - 14 NF, RH threads

2шт.

7

R36828

GUARD

ADJUSTER - tension rods

2шт.

8

129-330

NUT,1"-14, G5, LH

2шт.

9

R36826

ROD

- tension, LH threads

2шт.

10

D33816

PIN

- tension rods

4шт.

11

D26918

SNAP RING,#125, Ext

Ring, Snap, , tension rod pins #125, Ext

8шт.

12

R36829

PLATE ASSY.

LINK - support, upper

2шт.

13

D38709

PIN

- link at backhoe

2шт.

14

D33805

PIN

- retaining, self-locking

2шт.

15

D25078

PIN

- link at tractor

2шт.

16

D25279

SNAP RING,M35, Int

RING - pin retaining

4шт.

17

R38073

BRACE

BRACKET - link, RH, welds in place

1шт.

18

R38072

BRACKET - link, LH, welds in place

1шт.

19

R36898

PLATE - reinforcement, welds in place

2шт.
