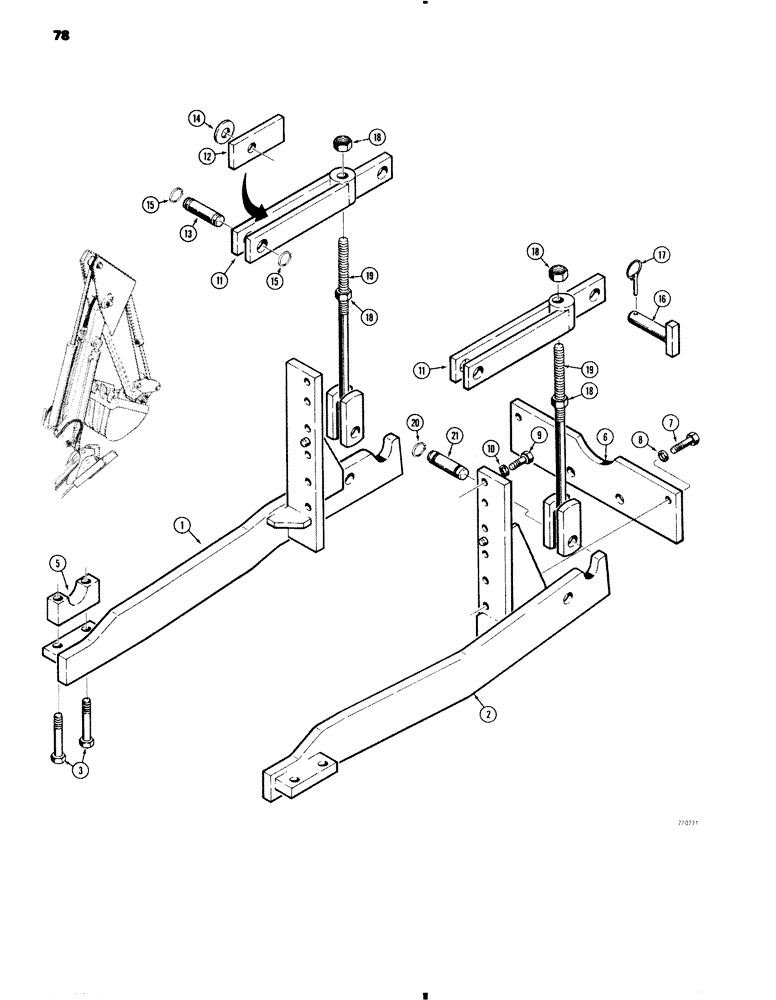

Запчасти Case 35 (078) - BACKHOE MOUNTING PARTS, 850 ONLY

1

R36572

ARM - support, lower, RH

1шт.

2

R36573

ARM - support, lower, LH

1шт.

3

13-1480

BOLT,Hex, 7/8" - 9 x 5", Gr 5

4шт.

5

D39511

CLAMP

- pivot shaft

2шт.

6

D37298

PLATE

- center, RH to LH lower support arm, welds in place

1шт.

7

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4" - 10 NC x 2-1/2", grade 8

2шт.

8

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

2шт.

9

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

10шт.

10

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

10шт.

11

R36580

ARM - support, upper

2шт.

12

D38911

PLATE ASSY.

PLATE - reinforcement, upper, welds in place

2шт.

13

D28037

AXLE PIN

PIN - upper arms at tractor

2шт.

14

D36478

WASHER

- hardened

2шт.

15

D25279

SNAP RING,M35, Int

RING - pin retaining

4шт.

16

D38709

PIN

- anchor, upper arms at backhoe

2шт.

17

D33805

PIN

- retaining, self-locking

2шт.

18

25-1116

NUT,1"-14, G5

- hex, 1" - 14 NF

4шт.

19

D37097

ROD

- tension

2шт.

20

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

4шт.

21

D33816

PIN

- tension rod

2шт.
