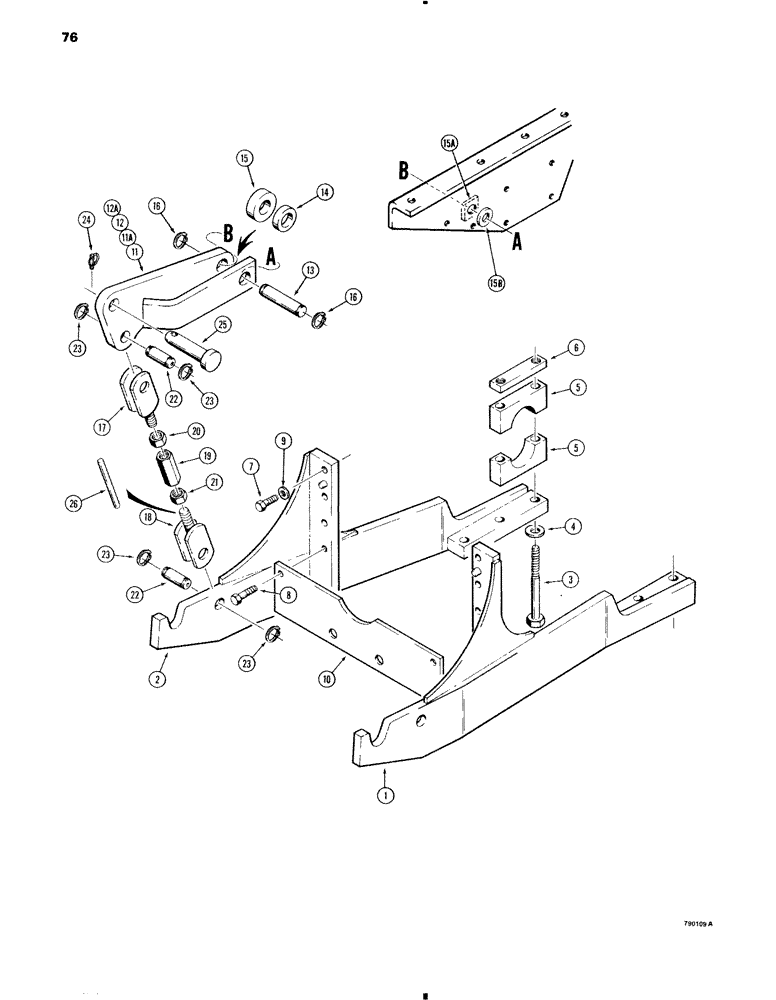

Запчасти Case 35 (076) - BACKHOE MOUNTING PARTS, 450 AND 450B ONLY

1

R41396

ARM

- support, lower, RH

1шт.

2

R41395

ARM

- support, lower, LH

1шт.

3

15-14144

BOLT - hex, 7/8" - 9 NC x 9"

4шт.

4

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

- hardened

4шт.

5

D34663

CLAMP

- support arm mounting

4шт.

6

D34722

BLOCK

- tapped

2шт.

7

26-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

- hex, 3/4" - 10 NC x 1-3/4", grade 8, if used

6шт.

7

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex, 5/8" - 11 NC x 2", grade 8, if used

6шт.

8

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4" - 10 NC x 2-1/2", grade 8, if used

2шт.

8

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex, 5/8" - 11 NC x 2-1/2", grade 8, if used

2шт.

9

A35147

WASHER

- hardend, 5/8", if used

8шт.

10

D37298

PLATE

- center, RH to LH lower support arm

1шт.

11

R41390

BRACKET - support, upper, RH, 450B

1шт.

11a

R40938

BRACKET - support, upper, RH, 450

1шт.

12

R41389

BRACKET - support, upper, LH, 450B

1шт.

12a

R40937

BRACKET - support, upper, LH, 450

1шт.

13

D32930

PIN,38.1mm OD x 127mm L

-, Serial Range: bracket-tractor

2шт.

14

R41394

SPACER - inner , 450B

2шт.

15

R41393

SPACER

- outer, 450B

2шт.

15a

R40934

PLATE - reinforcement, welds to frame, 450

2шт.

15b

95-24

WASHER,1 1/2" x 3 1/2" x .18"

- spacer, 450

4шт.

16

D25279

SNAP RING,M35, Int

- pin retaining

4шт.

17

R36826

ROD

- tension, upper section

2шт.

18

R36824

ROD

- tension, lower section

2шт.

19

R36828

GUARD

ADJUSTER - tension rods

2шт.

20

129-330

NUT,1"-14, G5, LH

2шт.

21

25-1116

NUT,1"-14, G5

- hex, 1" - 14 NF, RH threads

2шт.

22

D33816

PIN

- rod to support arm

4шт.

23

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

8шт.

24

D33805

PIN

- self-retaining

2шт.

25

D38709

PIN

-, Serial Range: bracket-backhoe

2шт.

26

R43871

ROD - hose protection, welds to Ref. 18, 450B only

2шт.
