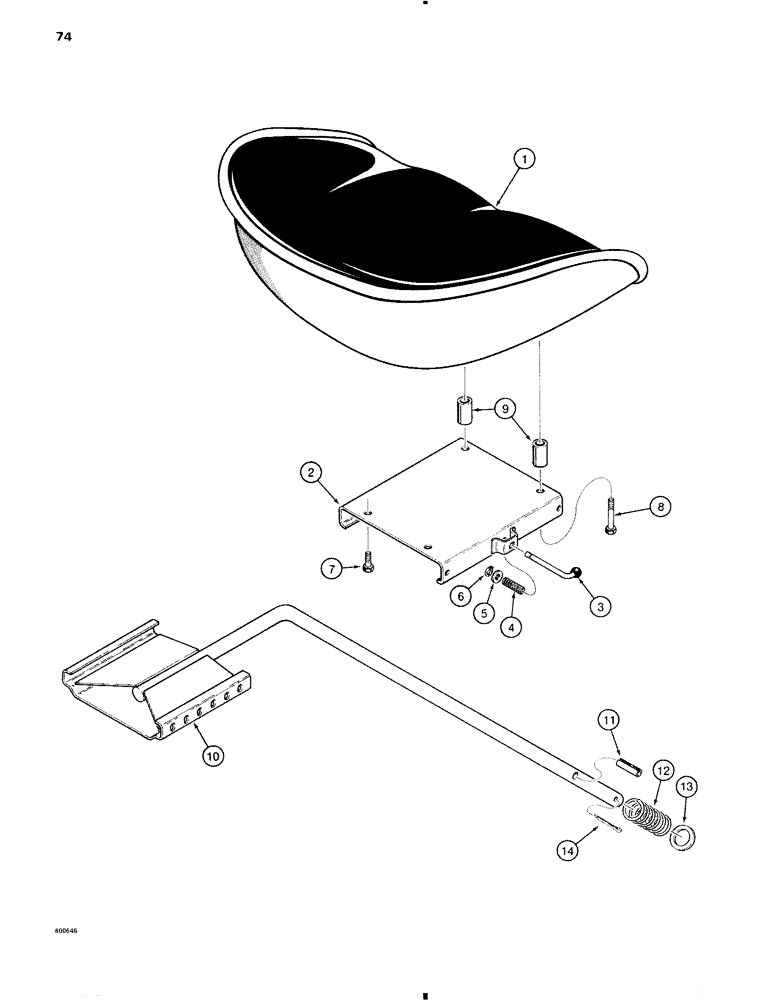

Запчасти Case 35 (074) - BACKHOE SEAT, W14 LOADER ONLY

D31309

SEAT

ASSEMBLY - backhoe, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

SEAT - padded

1шт.

2

D31308

ADJUSTER

SLIDE - seat, upper, Includes: Ref. 3 - 6

1шт.

3

D40765

LEVER

- seat, upper

1шт.

4

D40766

SPRING

- lever

1шт.

5

195-21

WASHER,5/16"

- flat, 5/16"

1шт.

6

A27810

CIRCLIP,#X31, .243" Dia, E-Type

Ring, Retaining, , lever #X31, .243" Dia, E-Type

1шт.

7

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

8

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16" - 18 NC x 1-3/4"

2шт.

9

D31306

SPACER

- slide

2шт.

10

L100721

ROD - seat support

1шт.

11

138-203

LOCK PIN,1/2" x 1 1/2", Slotted

Pin, 1/2" x 1 1/2", Slotted

1шт.

12

D25773

SPRING

- rod

1шт.

13

B18275

WASHER

- spring retaining

1шт.

14

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

1шт.
