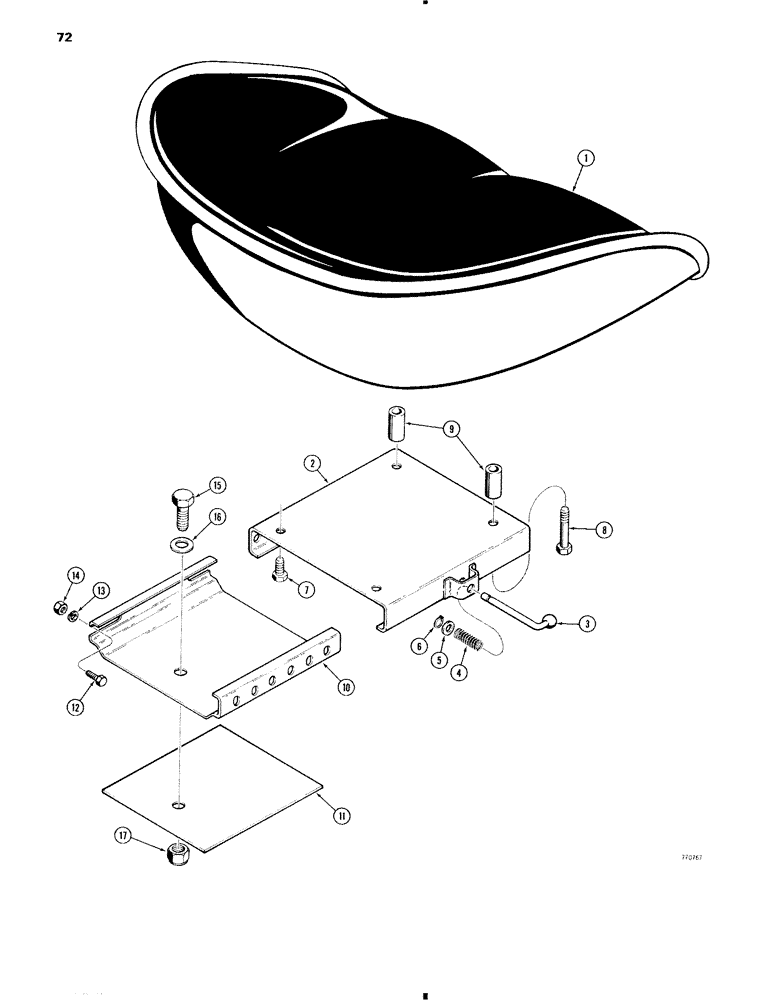

Запчасти Case 35 (072) - BACKHOE SEAT, 450, 450B AND 850 ONLY

D31309

SEAT

ASSEMBLY - backhoe, mounts on tractor, 450, 450B and 850 only, for 850B see note below, Includes: Ref. 1 - 9

1шт.

The seat and seat mounting parts in this Figure are used on 450, 450B and 850 Crawler tractors only. Replacement parts for the combination tractor-backhoe seat used on 850B Crawler tractor may be ordered from parts catalog number 1338. from parts catalog number 1338.

1шт.

1

NSS

NOT SOLD SEPARAT

SEAT - padded

1шт.

2

D31308

ADJUSTER

SLIDE - seat, upper, Includes: Ref. 3 - 6

1шт.

3

D40765

LEVER

- seat adjusting

1шт.

4

D40766

SPRING

- lever

1шт.

5

195-21

WASHER,5/16"

- flat, 5/16"

1шт.

6

A27810

CIRCLIP,#X31, .243" Dia, E-Type

Ring, Retaining, #X31, .243" Dia, E-Type

1шт.

7

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

8

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16" - 18 NC x 1-3/4", Includes: Ref. 9

2шт.

9

D31306

SPACER

- slide

2шт.

10

R36365

BRACKET - seat slide adjusting

1шт.

11

R36363

PLATE - bracket support

1шт.

12

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

25-104

NUT,1/4"-20, G5

2шт.

15

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

16

195-33

WASHER,1/2"

- flat, 1/2"

1шт.

17

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, self lock, 1/2" - 13 NC

1шт.
