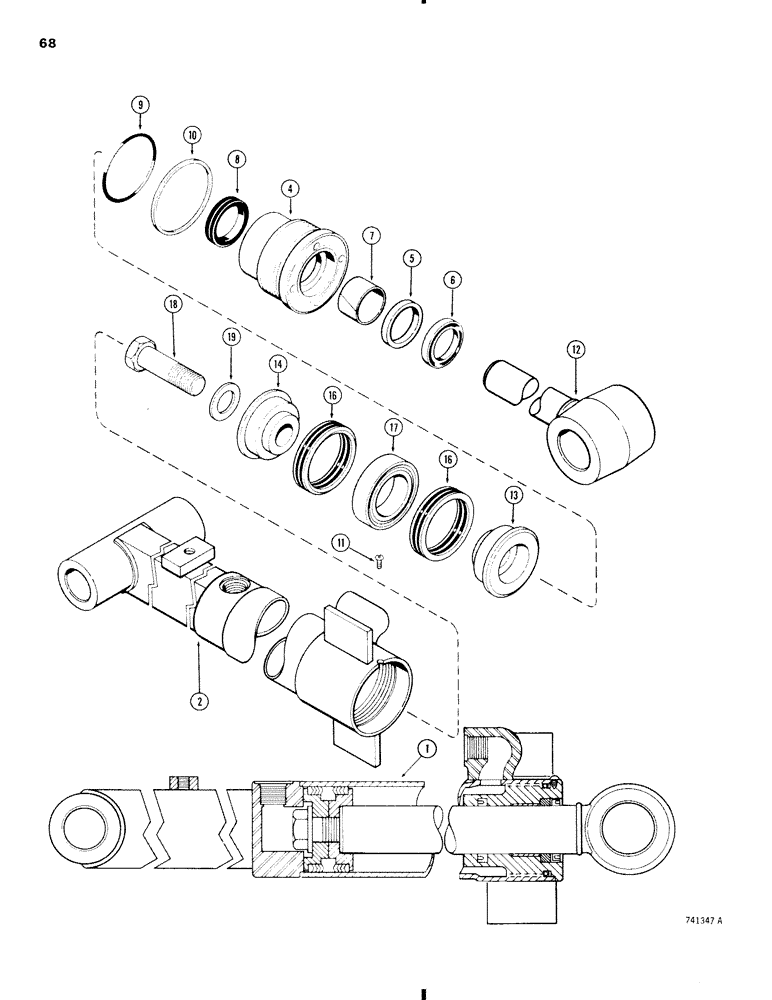

Запчасти Case 35 (068) - G33142 DIPPER EXTENSION CYLINDER, WITH TWO PIECE PISTON

1

G33142

BOOM

CYLINDER ASSEMBLY - dipper extension, 3" (76 mm) ID x 48" (1219 mm) stroke, see footnote, order G101183, Includes: Ref. 2 - 19

1шт.

2

G32699

TUBE,72.80 mm L

- cylinder

1шт.

G34328

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of Seal Kit, P/N G34332

1шт.

7

G34302

BEARING

- center

1шт.

Part of Seal Kit, P/N G34332

1шт.

8

D36969

CUP

SEAL - piston rod

1шт.

Part of Seal Kit, P/N G34332

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit, P/N G34332

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Part of Seal Kit, P/N G34332

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

12

G33143

PISTON ROD

ROD - piston, 1-1/2" (38 mm) dia

1шт.

13

G33150

PISTON

- split, rod end

1шт.

14

D28366

PISTON

- split, bolt end

1шт.

15

RESERVED

1шт.

G33151

PACKING

ASSEMBLY - piston, Includes: Ref. 16 and 17

1шт.

Part of Seal Kit, P/N G34332

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

17

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

18

281240

BOLT - hex, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

G34332

SEAL

KIT - seal, Includes: Ref. 6, 7, 8, 9, 10, and P/N G33151

1шт.

G100776

SEAL

- piston rod, service option, extreme heat or cold

1шт.
