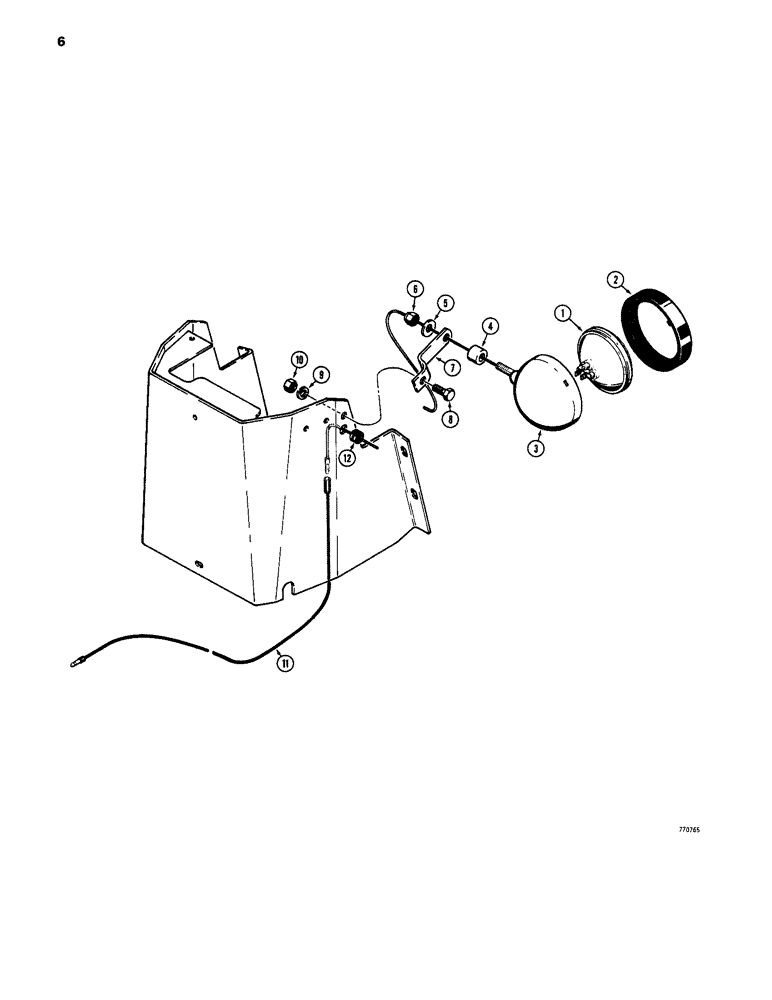

Запчасти Case 35 (006) - REAR LIGHT, *850 ONLY

D35913

LAMP

LIGHT ASSEMBLY - rear, 24 volt, Includes: Ref. 1 - 6

1шт.

1

D37920

LAMP

- sealed beam, no. 4578

1шт.

2

A25210

MOUNTING PARTS

RETAINER - light, rubber

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - light

1шт.

4

D37048

BUSHING

- nylon

1шт.

5

D37049

WASHER

- special

1шт.

6

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex, self lock, 1/2" - 20 NF

1шт.

7

NLS

NO LONGER SERVICED

- light mounting

1шт.

8

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

9

92-8

LOCK WASHER,1/2"

1шт.

10

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

11

G13223

WIRE - light

1шт.

12

D37936

GROMMET

- wire

1шт.
