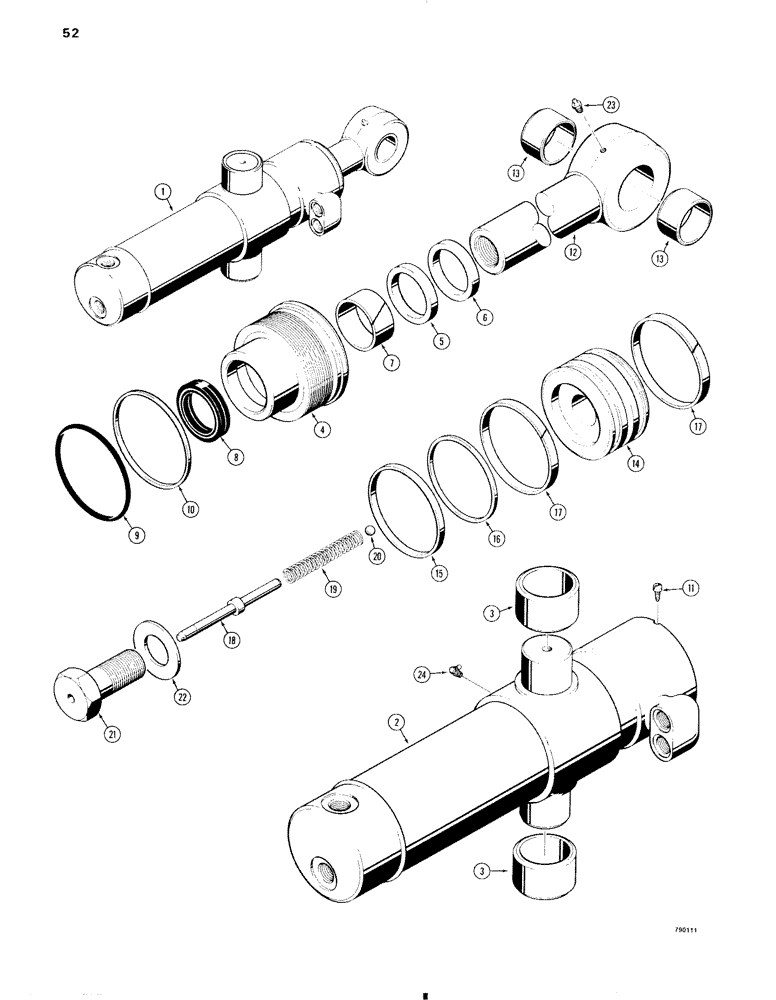

Запчасти Case 35 (052) - G102525 SWING CYLINDER, BACKHOE SN 5411088 AND AFTER, WITH ONE PIECE PISTON

1

G102525

CYLINDER

ASSEMBLY - swing, 4" (102 mm) ID x 11-1/4" (286 mm) stroke, see foot note, Includes: Ref. 2 - 24

2шт.

2

G102576

TUBE,469.89 mm L

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

G34875

BUSHING,50.67mm ID x 60.25mm OD x 33.53mm L

- tube

2шт.

G34331

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube. For models before backhoe SN 5411088 see Figures 48 and 50.

1шт.

Part of seal kit, P/N G102401

1шт.

7

G34322

BEARING

- center

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube. For models before backhoe SN 5411088 see Figures 48 and 50.

1шт.

Part of seal kit, P/N G102401

1шт.

8

D36971

RING

SEAL - piston rod

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube. For models before backhoe SN 5411088 see Figures 48 and 50.

1шт.

Part of seal kit, P/N G102401

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube. For models before backhoe SN 5411088 see Figures 48 and 50.

1шт.

Part of seal kit, P/N G102401

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube. For models before backhoe SN 5411088 see Figures 48 and 50.

1шт.

Part of seal kit, P/N G102401

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

12

G34775

ROD ASSY.

ROD ASSEMBLY - piston, 2" (51 mm) dia, Includes: Ref. 13

1шт.

13

G34854

BUSHING,44.58mm ID x 53.98mm OD x 22.35mm L

- piston rod

2шт.

14

G101309

PISTON

- cylinder

1шт.

15

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- piston

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube. For models before backhoe SN 5411088 see Figures 48 and 50.

1шт.

Part of seal kit, P/N G102401

1шт.

16

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

- backup

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube. For models before backhoe SN 5411088 see Figures 48 and 50.

1шт.

Part of seal kit, P/N G102401

1шт.

17

G100448

RING,101.6mm OD, Ext

- wear

2шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube. For models before backhoe SN 5411088 see Figures 48 and 50.

1шт.

Part of seal kit, P/N G102401

1шт.

18

G102826

PIN

- cushion relief

1шт.

19

D38683

SPRING

- cushion relief

1шт.

20

211-17

BALL,3/4" Dia

- cushion relief spring

1шт.

21

D41359

BOLT,Hex, 1 1/4" - 12 x 63.5mm, Gr 8

- piston and cushion relief

1шт.

22

G32351

WASHER

- hardened

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

24

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G102401

SEAL

KIT - seal, Includes: Ref. 6, 7, 8, 9, 10, 15, 16, 17

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube. For models before backhoe SN 5411088 see Figures 48 and 50.

1шт.

G100778

SEAL

- piston rod, service option - extreme heat or cold

1шт.
