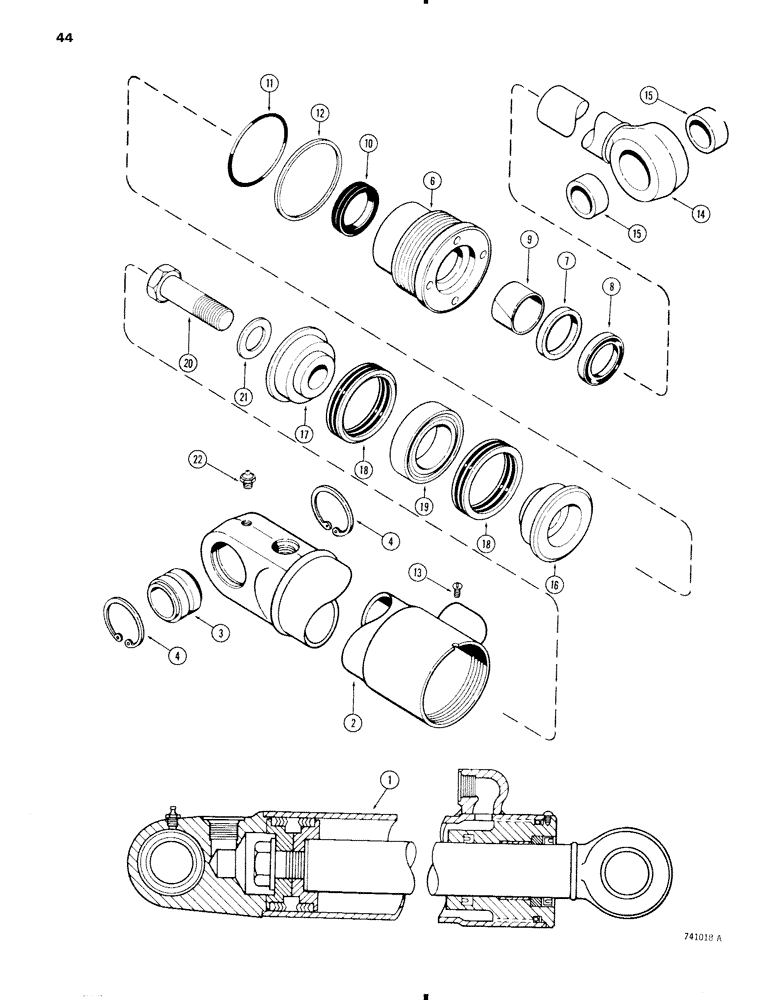

Запчасти Case 35 (044) - G34470 AND G34471 STABILIZER CYLINDERS, WITH TWO PIECE

1

G34470

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - stabilizer, RH, 4" (102 mm) ID x 19-3/8" (492 mm) stroke, see footnote, order G101180, Includes: Ref. 2 - 22

1шт.

1

G34471

CYLINDER ASSY.

CYLINDER ASSEMBLY - stabilizer, LH, 4" (102 mm) ID x 19-3/8" (492 mm) stroke, see footnote, order G101181, Includes: Ref. 2 - 22

1шт.

2

G34468

TUBE,28.47" L

ASSEMBLY - cylinder, RH, Includes: Ref. 3 and 4

1шт.

2

G34469

TUBE,28.47" L

ASSEMBLY - cylinder, LH, Includes: Ref. 3 and 4

1шт.

3

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

- tube, self-aligning

1шт.

4

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, 2.44", Int, #244

2шт.

G34331

GLAND

ASSEMBLY - cylinder, Includes: Ref. 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

7

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

8

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit, P/N G34594

1шт.

9

G34322

BEARING

- center

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit, P/N G34594

1шт.

10

D36971

RING

SEAL - piston rod

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit, P/N G34594

1шт.

11

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit, P/N G34594

1шт.

12

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit, P/N G34594

1шт.

13

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

14

G34475

ROD

ASSEMBLY - piston, 2" (51 mm) dia, Includes: Ref. 15

1шт.

15

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

16

G33159

PISTON

- split, rod end

1шт.

17

D46930

PISTON

- split, bolt end

1шт.

18

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSEMBLY - piston, V-type

2шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit, P/N G34594

1шт.

19

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

20

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8

1шт.

21

G32351

WASHER

- hardened

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G34594

SEAL

KIT - seal, Includes: Ref. 8, 9, 10, 11, 12, 18

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

G100778

SEAL

- piston rod, service option - extreme heat or cold

1шт.
