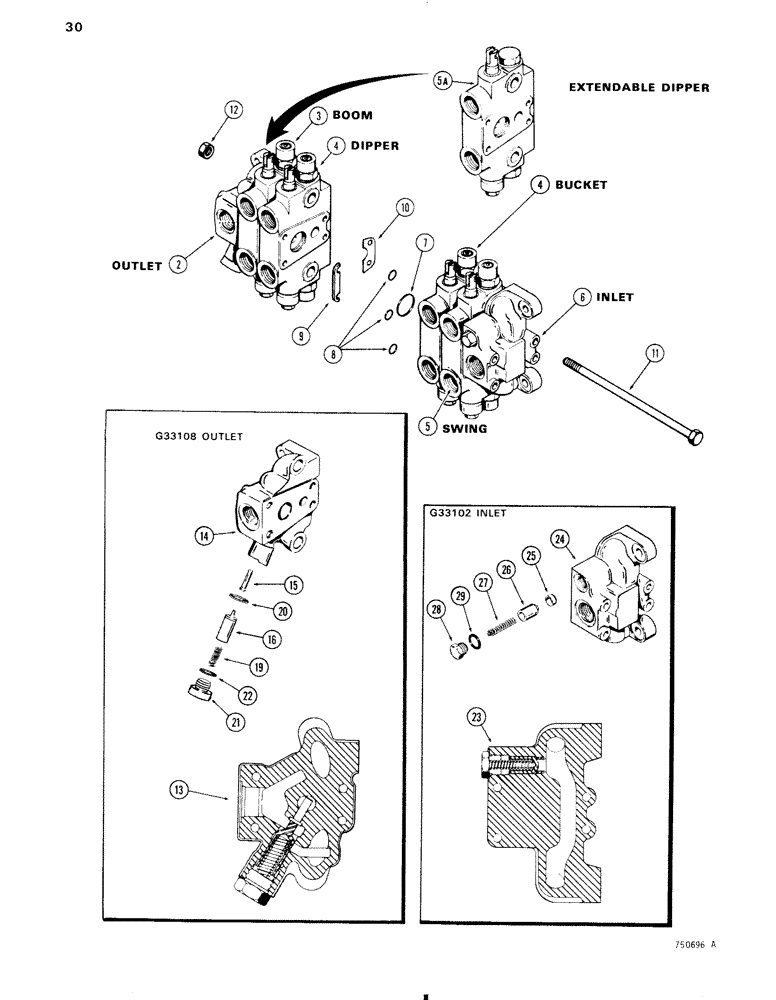

Запчасти Case 35 (030) - BACKHOE CONTROL VALVES, OUTLET SECTION, INLET SECTION

1

G34897

VALVE

ASSEMBLY - control, models without extendable dipper, before backhoe SN 5355084, not shown assembled, Includes: Ref. 2 - 12

1шт.

1

G100244

VALVE

ASSEMBLY - control, models without extendable dipper, backhoe SN 5355084 and after, not shown assembled, Includes: Ref. 2 - 12

1шт.

1

G35360

VALVE

ASSEMBLY - control, models with extendable dipper, before backnoe SN 5355084, not shown assembled, Includes: Ref. 2 - 12

1шт.

1

G100196

LOCK VALVE

VALVE ASSEMBLY - control, models with extendable dipper, backhoe SN 5355084 and after, not shown assembled, Includes: Ref. 2 - 12

1шт.

2

REF

INSTRUCTION

VALVE SECTION - outlet, see below

1шт.

3

REF

INSTRUCTION

VALVE SECTION - boom, see Figure 38

1шт.

4

REF

INSTRUCTION

VALVE SECTION - bucket and dipper, see Figure 32

2шт.

5

REF

INSTRUCTION

VALVE SECTION - swing, see Figure 36

1шт.

5a

REF

INSTRUCTION

VALVE SECTION - dipper extension, used in G35360 or G100196 valves only, seep Figure 34

1шт.

6

REF

INSTRUCTION

VALVE SECTION - inlet, see below

1шт.

7

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

- section ports, large

5-6шт.

8

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

- section ports, small

15-18шт.

9

G33964

SHIM,.002" Thk

Section, Port side of valve .002" Thk

5-6шт.

10

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of valve 0.051mm Thk

5-6шт.

11

G34942

TIE-ROD

BOLT - tie, valve sections, 3/8" - 16 NC x 13-3/8", models without extendable dipper

4шт.

11

G34675

TIE-ROD

BOLT - tie, valve sections, 3/8" - 16 NC x 15-3/4", models with extendable dipper

4шт.

12

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

13

G33108

MANIFOLD

VALVE SECTION ASSEMBLY - outlet, Includes: Ref. 14 - 22

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - outlet section

1шт.

15

G33110

PISTON

- regeneration sensing, outlet section

1шт.

16

G34586

SPOOL,22mm OD x 59.87mm L

- regeneration, outlet section

1шт.

19

G33112

SPRING

- spool, outlet section

1шт.

20

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

- internal, outlet section

1шт.

21

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

spool retaining, outlet section, Includes Ref 22 Hex Soc, 1 3/16"-12 ORB

1шт.

22

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- plug, outlet section

1шт.

23

G33102

MANIFOLD

VALVE SECTION ASSEMBLY - inlet, Includes: Ref. 24 - 29

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - inlet section

1шт.

25

G33104

SEAT

- check valve poppet, inlet section

1шт.

26

G33105

VALVE POPPET

POPPET - check valve, inlet section

1шт.

27

G33106

SPRING

- check valve, inlet section

1шт.

28

A39586

PLUG

- check valve, inlet section

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug, inlet section

1шт.
