Запчасти Case 35 (026) - EXTENDABLE DIPPER CYLINDER HYDRAULIC CIRCUIT, 850 AND 850B ONLY

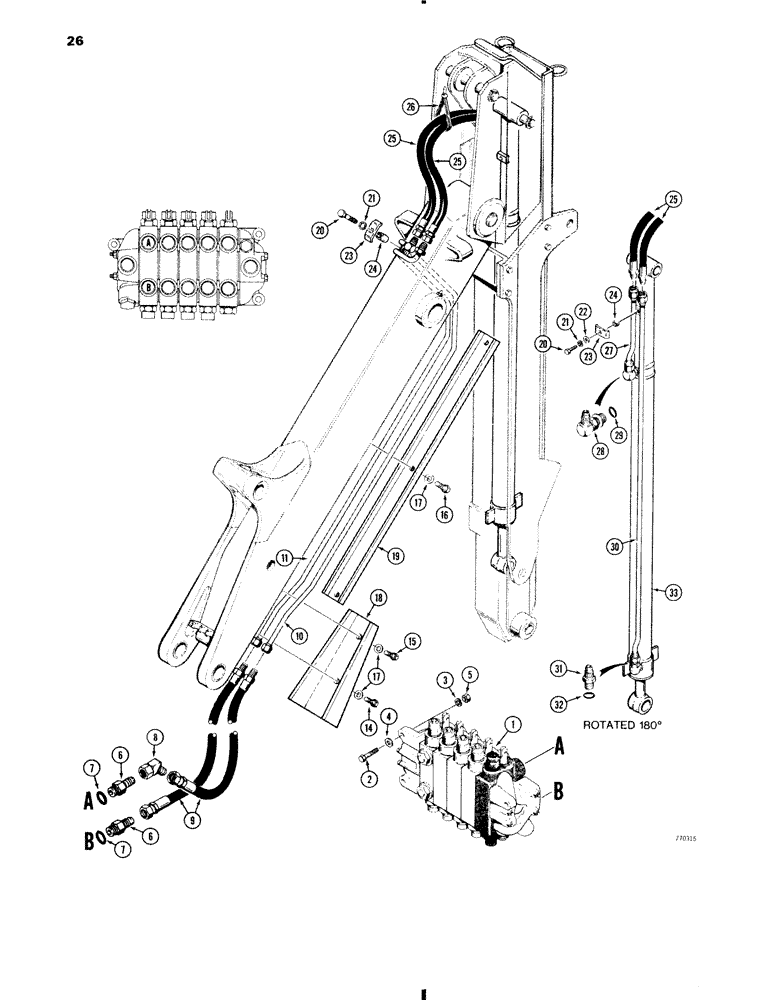

Схема запчастей Case 35 - (026) - EXTENDABLE DIPPER CYLINDER HYDRAULIC CIRCUIT, 850 AND 850B ONLY

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE - backhoe control, parts list Figure 30

1шт.

2

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

92-8

LOCK WASHER,1/2"

3шт.

4

95-8

WASHER,1/2"

flat 1/2"

3шт.

5

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

6

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - straight, male adapter, Incl. Ref. 7

2шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

8

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

FITTING - 45", adjustable, upper port

1шт.

9

D73377

HOSE

- from valve, 52" (1321 mm) long

2шт.

10

D55464

TUBE

- RH

1шт.

11

D55466

TUBE

- LH

1шт.

14

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2" - 13 NC x 1-3/4"

1шт.

15

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

If used Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

15

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

If used Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

16

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2" - 13 NC x 3/4"

3шт.

17

95-8

WASHER,1/2"

flat 1/2"

5шт.

18

D54420

GUARD

- tube, lower

1шт.

19

D54137

GUARD

- tube, upper

1шт.

20

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

195-25

WASHER,3/8"

- flat, 3/8"

1шт.

23

D42504

CLAMP

- tube

2шт.

24

D33552

BUSHING

SPACER - tube clamp

2шт.

25

D32284

HOSE,12.7mm ID x 1016mm L, SAE 100R2

- to cylinder, 40" (1016 mm) long

2шт.

27

D52572

TUBE

- to cylinder closed end

1шт.

28

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

FITTING - 90 degree, adjustable, Incl. Ref. 29

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

30

D52574

TUBE

- to cylinder rod end

1шт.

31

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

FITTING - straight, male adapter, Includes: Ref. 32

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

33

REF

INSTRUCTION

CYLINDER - dipper extension, parts list Figure 68 or 70

1шт.
