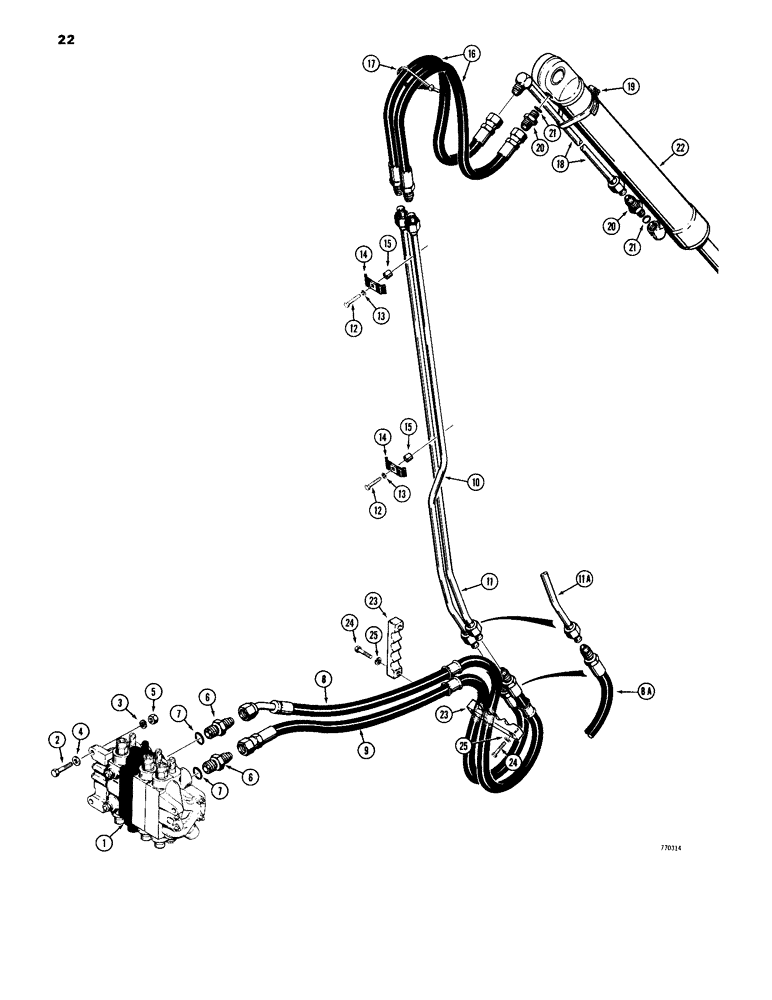

Запчасти Case 35 (022) - BUCKET CYLINDER HYDRAULIC CIRCUIT, MODELS WITHOUT EXTENDABLE DIPPER

1

REF

INSTRUCTION

VALVE - backhoe control, parts list Figure 30

1шт.

2

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

92-8

LOCK WASHER,1/2"

3шт.

4

95-8

WASHER,1/2"

flat 1/2"

3шт.

5

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

6

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - straight, male adapter

2шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

8

D74339

HOSE,15.88mm ID x 1371.6mm L, SAE 100R2

- top valve port, 54" (1372 mm) long, used on backhoe SN 5355844 and after

1шт.

8a

D70871

HOSE

- top valve port, 50" (1270 mm) long, used before backhoe SN 5355844

1шт.

9

D69170

HOSE,15.88mm ID x 1219.2mm L, SAE 100R2

- bottom valve port, 48" (1219 mm) long

1шт.

10

D87421

HYD TUBE,0.75" OD x 4.65, 73.4" L

TUBE - closed end circuit, RH

1шт.

11

D84597

HYD TUBE,0.75" OD x 70, 2.58" L

TUBE - rod end circuit, LH, used on backhoe SN 5355844 and after

1шт.

11a

D73348

HYD TUBE,0.75" OD x 3.77, 72.4" L

TUBE - rod end circuit, LH, used before backhoe SN 5355844

1шт.

12

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

D40236

CLAMP

- tube

2шт.

15

D95801

BUSHING

SPACER - clamp

2шт.

16

D50372

HOSE

- to cylinder, 34" (864 mm) long

2шт.

17

L18331

CABLE TIE,375.9mm L, Nylon

STRAP - bucket cylinder hoses

1шт.

18

D58609

TUBE

- to rod end of cylinder

1шт.

19

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - tube

1шт.

20

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - straight, male adapter, Includes: Ref. 21

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

22

REF

INSTRUCTION

CYLINDER - bucket, parts list Figure 64 or 66

1шт.

23

D50388

CLAMP

- hoses

2шт.

24

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

If used Hex, 1/2"-13 x 2", G5

4шт.

24

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2" - 13 NC x 1-3/4", if used

4шт.

25

92-8

LOCK WASHER,1/2"

4шт.
