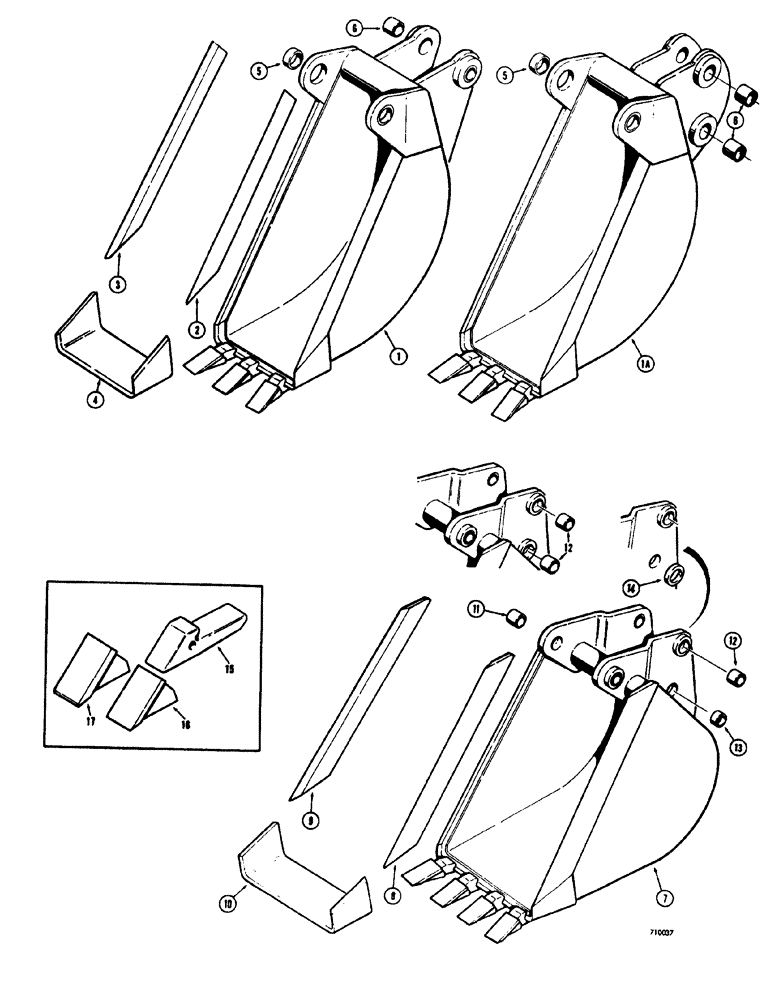

Запчасти Case 34 (114) - BACKHOE BUCKETS (OPTIONAL TYPES)

1

D37472

BUCKET backhoe, trenching, 12 inch, one hole position for bucket link pin, machinery item

1шт.

1a

D52642

BUCKET

BACKHOE trenching, 12 inch, two hole positions for bucket link pin, machinery item

1шт.

2

D29424

EDGE, CUTTING

BLADE, R.H. side, trenching buckets, machinery item

1шт.

3

D29423

EDGE, CUTTING

BLADE, L.H. side, trenching buckets, machinery item

1шт.

4

D37464

EDGE, CUTTING

BLADE center, trenching buckets, machinery item

1шт.

5

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

BUCKET at dipper arm, trenching, machinery item

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

BUCKET link pin hole, (2) used with D37472 bucket, (4) used with D52642 bucket, trenching, machinery item

2-4шт.

7

D37473

BUCKET

SPARE PART BACKHOE trenching, 18 inch, machinery item

1шт.

8

D21606

EDGE, CUTTING

BLADE, R.H. side, trenching buckets, machinery item

1шт.

9

D21605

EDGE, CUTTING

BLADE, L.H. side, trenching buckets, machinery item

1шт.

10

D37642

EDGE, CUTTING

BLADE center, trenching buckets, machinery item

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

BUCKET at dipper arm, trenching, machinery item

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

BUCKET upper and lower bucket link pin hole, used in lower hole only if bucket lug has boss, trenching, machinery item

2-4шт.

13

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

BUCKET lower bucket link pin hole, used if bucket lug does not have boss, trenching, machinery item

2шт.

7

D37474

BUCKET

SPARE PART BACKHOE trenching, 24 inch, machinery item

1шт.

8

D21606

EDGE, CUTTING

BLADE, R.H. side, trenching buckets, machinery item

1шт.

9

D21605

EDGE, CUTTING

BLADE, L.H. side, trenching buckets, machinery item

1шт.

10

D37507

EDGE

BLADE cutting, center, trenching buckets, machinery item

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

BUCKET at dipper arm, trenching, machinery item

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

BUCKET upper and lower bucket link pin hole, used in lower hole only if bucket lug has boss, trenching, machinery item

2-4шт.

13

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

BUCKET lower bucket link pin hole, used if bucket lug does not have boss, trenching, machinery item

1шт.

7

D37475

BUCKET

SPARE PART BACKHOE trenching, 30 inch, machinery item

1шт.

8

D21606

EDGE, CUTTING

BLADE, R.H. side, trenching buckets, machinery item

1шт.

9

D21605

EDGE, CUTTING

BLADE, L.H. side, trenching buckets, machinery item

1шт.

10

D37505

EDGE, CUTTING

BLADE center, trenching buckets, machinery item

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

BUCKET at dipper arm, trenching, machinery item

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

BUCKET upper and lower bucket link pin hole, used in lower hole only if bucket lug has boss, trenching, machinery item

2-4шт.

13

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

BUCKET lower bucket link pin hole, used if bucket lug does not have boss, trenching, machinery item

1шт.

7

D37476

BUCKET

BACKHOE trenching, 36 inch, buckets, machinery item

1шт.

8

D21606

EDGE, CUTTING

BLADE, R.H. side, trenching buckets, machinery item

1шт.

9

D21605

EDGE, CUTTING

BLADE, L.H. side, trenching buckets, machinery item

1шт.

10

D37471

EDGE, CUTTING

BLADE center, trenching buckets, machinery item

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

BUCKETat dipper arm, trenching, machinery item

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

BUCKET upper and lower bucket link pin hole, used in lower hole only if bucket lug has boss, trenching, machinery item

2-4шт.

13

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

BUCKET lower bucket link pin hole, used if bucket lug does not have boss, trenching, machinery item

2шт.

14

D50763

KIT

BOSS trenching bucket, Includes (2) D50760 bosses and instructions sheet, machinery item

1шт.

Boss Kit for D37473, D37474, D37475 and D37476 trenching buckets not originally equipped with bosses.

1шт.

15

D26368

SUPPORT

SHANK tooth, standard

1шт.

Boss Kit for D37473, D37474, D37475 and D37476 trenching buckets not originally equipped with bosses.

1шт.

16

D27748

TOOTH

POINT standard

1шт.

Boss Kit for D37473, D37474, D37475 and D37476 trenching buckets not originally equipped with bosses.

1шт.

17

D36720

TOOTH

POINT service option, heavy duty, standard

1шт.

Boss Kit for D37473, D37474, D37475 and D37476 trenching buckets not originally equipped with bosses.

1шт.
