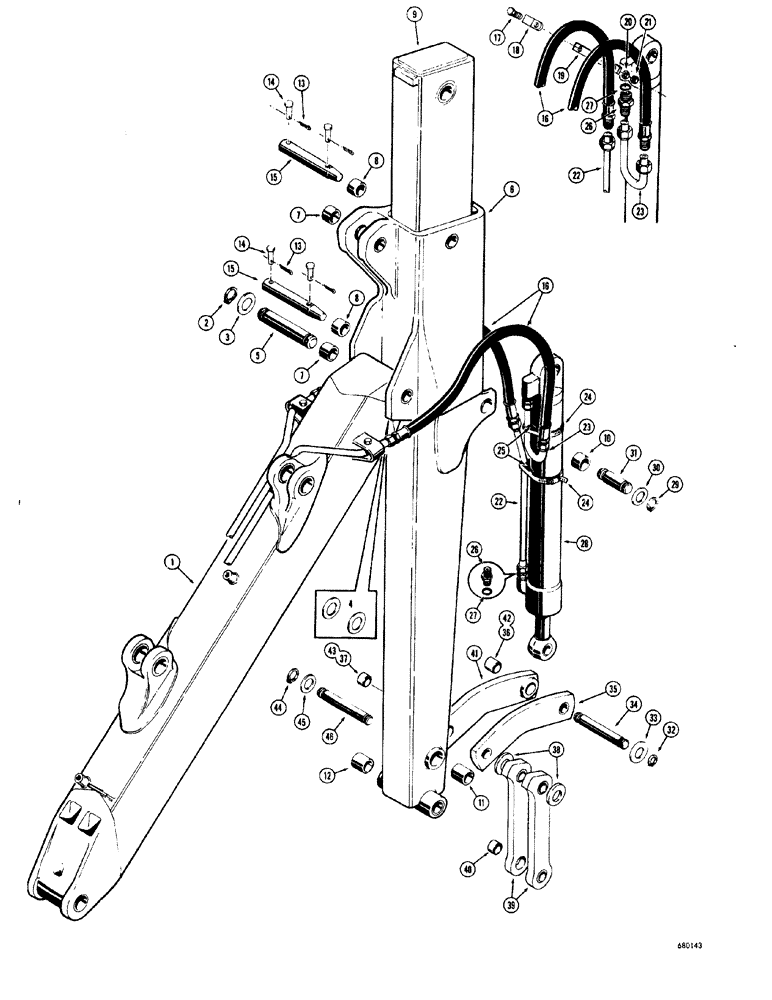

Запчасти Case 34 (110) - EXTENDABLE DIPPER

1

D38482

X

BOOM backhoe, used before backhoe serial no. 1022951, see Figure 106 for bushings and spacers

1шт.

D44363

SPARE PART BACKHOE used on backhoe serial no. 1022951 and after, see Figure 106 for bushings and spacers

1шт.

2

D26919

SNAP RING,#200, Ext

2шт.

3

195-2155

WASHER,2 1/16" x 3" x .109"

FLAT steel, 2-1/16"

2шт.

4

D37449

SHIM,.0747" Thk

1шт.

5

D37609

PIN

BOOM to dipper arm

1шт.

D38900

ASSEMBLY collar, dipper extension

1шт.

6

NSS

NOT SOLD SEPARAT

COLLAR dipper extension

1шт.

7

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

COLLAR at crowd cylinder and boom

4шт.

8

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

COLLAR positioning pin

4шт.

D38906

SPARE PART ASSEMBLY extension

1шт.

9

NSS

NOT SOLD SEPARAT

ARM dipper, extension

1шт.

10

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

ARM dipper, at bucket cylinder

2шт.

11

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

ARM dipper, at bucket link

2шт.

12

D37443

BUSHING,44.68mm ID x 57.15mm OD x 50.8mm L

ARM dipper, at bucket

2шт.

13

132-48

COTTER PIN,1/8" x 1"

4шт.

14

A10123

SPARE PART CLEVIS

4шт.

15

D38902

SPARE PART DIPPER extension positioning

2шт.

16

D40727

SPARE PART to bucket cylinder (60" long)

2шт.

17

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

18

D39138

CLAMP

HOSE

2шт.

19

D39124

SPARE PART BAR space, hose

1шт.

20

95-5

WASHER,3/8" x 7/8" x .083"

WROTstandard, 5/16"

2шт.

21

131-4

LOCK NUT,5/16"-18, GB

2шт.

22

D40647

TUBE

to bucket cylinder, rod end

1шт.

23

D40655

TUBE

to bucket cylinder, closed end

1шт.

24

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

TUBE to cylinder

2шт.

25

D38648

BLOCK

SPACER tube clamp

2шт.

26

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

MALE straight

2шт.

27

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

28

D38492

SPARE PART CYLINDER hydraulic, bucket, 4" I.D. x 27-1/4" stroke, parts list page 177, when stock is exhausted, order D42628 bucket cylinder for service

1шт.

D42628

CYLINDER

HYDRAULIC bucket, 4" I.D. x 27-1/4" stroke, parts list page 177

1шт.

29

D25280

SNAP RING,#175, Ext

2шт.

30

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

HAT steel, 1-13/16"

2шт.

31

D38907

PIN,1.75" OD x 5 5/16 L

BUCKET cylinder to dipper arm

1шт.

32

D25279

SNAP RING,M35, Int

RETAINING

2шт.

33

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

SPECIAL 1/8" thick

2шт.

34

D39256

AXLE PIN,38.1mm OD x 238.13mm L

BUCKET cylinder to bucket linkage

1шт.

35

D37445

LINK

BUCKET cylinder to dipper arm, R.H.

1шт.

36

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

LINK at bucket cylinder

1шт.

37

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

LINK at dipper arm

1шт.

38

D39261

WASHER

SPACER bucket linkage, 5/16" thick

2шт.

39

D37452

LINK

BUCKET, Serial Range: cylinder-bucket

2шт.

40

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

LINK

2шт.

41

D37444

LINK

SPARE PART BUCKET cylinder to dipper arm, L.H.

1шт.

42

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

LINK at bucket cylinder

1шт.

43

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

LINK at dipper arm

1шт.

44

D25279

SNAP RING,M35, Int

RETAING

2шт.

45

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

SPECIAL 1/8" thick

2шт.

46

D39256

AXLE PIN,38.1mm OD x 238.13mm L

BUCKET linkage to dipper arm

1шт.
