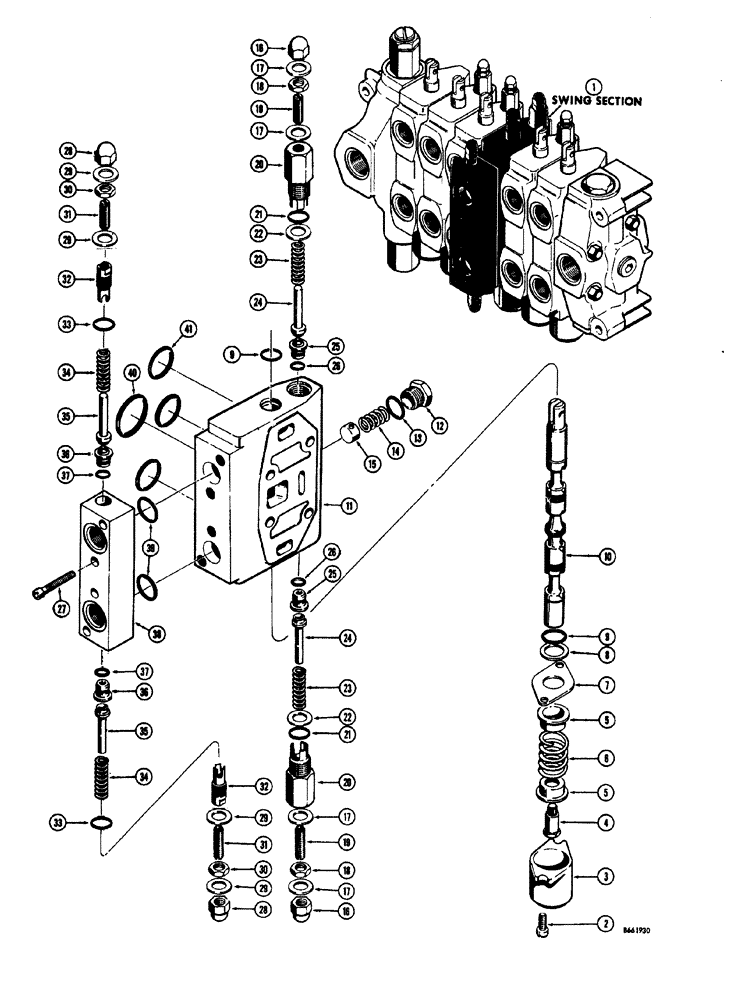

Запчасти Case 34 (196) - D40756 BACKHOE SWING SECTION

1

D40756

KNIFE SECTION

SECTION, KNIFE SWING backhoe control valve

1шт.

2

71-512

SCREW,Slotted Fil Hd, 5/16"-18 x 3/4"

FHMS 5/16" - 18 NC x 3/4"

2шт.

3

D32221

COVER

SECTION swing

1шт.

4

D32128

BOLT (SPREADER)

STRIPPER special

1шт.

5

D32130

GUIDE

SPRING

2шт.

6

D40761

SPARE PART CENTERING

1шт.

7

R20556

SPARE PART RETAINING

1шт.

8

D32215

RING

BACKUP

1шт.

9

D29898

RING

SEAL quad ring

2шт.

10

NSS

NOT SOLD SEPARAT

SPOOL swing section

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING swing section

1шт.

12

39007

CAP

VALVE check

1шт.

13

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL

1шт.

14

R15308

VALVE SPRING

VALVE check

1шт.

15

D45694

SPOOL

POPPET check valve

1шт.

D38606

VALVE

CARTRIDGE secondary relief, not prese, must be set to correct pressure when installed on valve , when stock is exhausted, order D42866 secondary relief

2шт.

D42866

VALVE

CARTRIDGE secondary relief, not preset, must be set to correct pressure when installed on valve

2шт.

16

129-526

CROWN NUT,Low, 3/8" - 24

ACORN 3/8" - 24 NF

1шт.

17

23150

WASHER

GASKET copper

2шт.

18

25-156

JAM NUT,Jam, 3/8"-24, G5

HEX jam, 3/8" - 24 NF

1шт.

19

D38814

ADJUSTMENT SCREW,3/8" - 24

SET special

1шт.

20

NSS

NOT SOLD SEPARAT

BODY cartridge

1шт.

21

D26872

O-RING

SEAL 1/2" I.D. x 5/8" O.D.

1шт.

22

D31450

WASHER

GASKET

1шт.

D42865

VALVE POPPET

KIT seat

1шт.

23

NSS

NOT SOLD SEPARAT

SPRING relief valve

1шт.

24

NSS

NOT SOLD SEPARAT

POPPET relief valve

1шт.

25

NSS

NOT SOLD SEPARAT

SEAT relief valve

1шт.

26

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

Seal (1/4" ID x 3/8" OD)

1шт.

27

61-528

HEX SOC SCREW,5/16"-18 x 1 3/4"

HEX socket head, 5/16" - 18 NC x 1-3/4

4шт.

D40760

SPARE PART ASSEMBLY crossover block, swing section

1шт.

28

129-526

CROWN NUT,Low, 3/8" - 24

ACORN 3/8" - 24 NF

2шт.

29

23150

WASHER

GASKET copper

4шт.

30

25-156

JAM NUT,Jam, 3/8"-24, G5

HEX jam, 3/8" - 24 NF

2шт.

31

D40776

SCREW

SPARE PART SET special

2шт.

32

D40777

SPARE PART BODY relief valve

1шт.

33

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

SEAL 9/16" I.D. x 3/4" O.D.

2шт.

34

D40778

VALVE SPRING

SPRING relief valve

2шт.

D40189

PACKAGE

KIT seat and poppet

1шт.

35

NSS

NOT SOLD SEPARAT

POPPET relief valve

1шт.

36

NSS

NOT SOLD SEPARAT

SEAT relief valve

1шт.

37

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

Seal (1/4" ID x 3/8" OD)

1шт.

38

NSS

NOT SOLD SEPARAT

HOUSING crossover

1шт.

39

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL 1" I.D. x 1-1/4" O.D.

2шт.

40

D32127

O-RING

SEAL 1-13/16" I.D. x 2" O.D.

1шт.

41

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL 1-9/16" I.D. x 1-3/4" O.D.

3шт.
