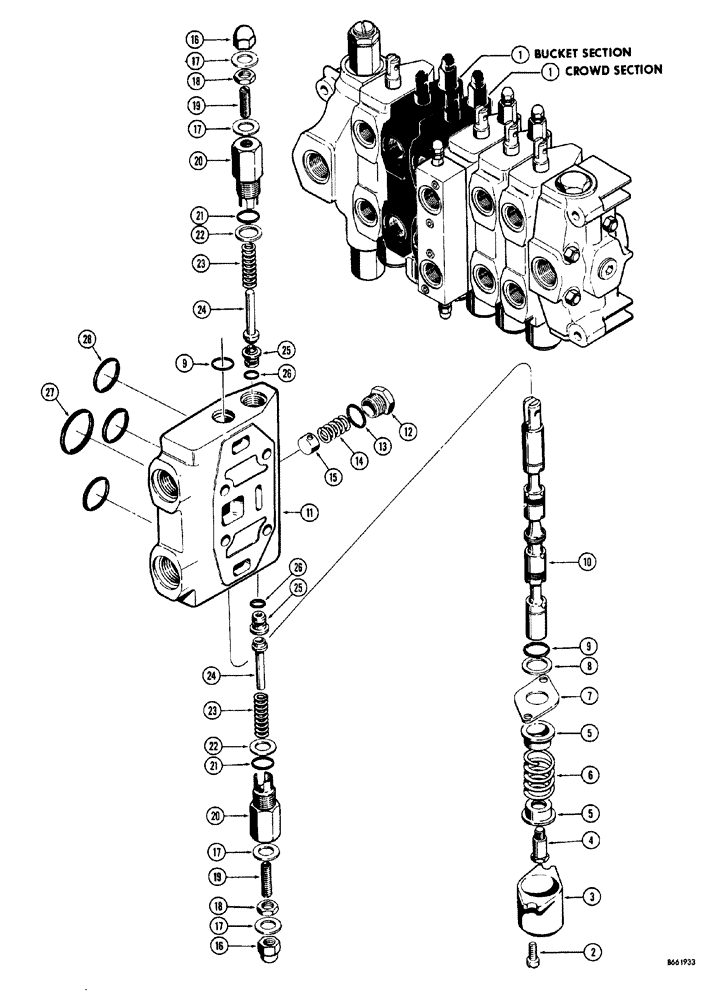

Запчасти Case 34 (194) - D40757 BACKHOE BUCKET AND CROWD SECTION

1

D40757

SPARE PART BUCKET and crowd, backhoe control valve

2шт.

2

71-512

SCREW,Slotted Fil Hd, 5/16"-18 x 3/4"

FHMS 5/16" - 18 NC x 3/4"

2шт.

3

D32221

COVER

SECTION bucket and crowd

1шт.

4

D32128

BOLT (SPREADER)

STRIPPER special

1шт.

5

D32130

GUIDE

SPRING

2шт.

6

D40761

SPARE PART CENTERING

1шт.

7

R20556

SPARE PART RETAINING

1шт.

8

D32215

RING

BACKUP

1шт.

9

D29898

RING

SEAL quad ring

2шт.

10

NSS

NOT SOLD SEPARAT

SPOOL bucket and crowd section

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING bucket and crowd section

1шт.

12

39007

CAP

VALVE check

1шт.

13

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL

1шт.

14

R15308

VALVE SPRING

VALVE check

1шт.

15

D45694

SPOOL

POPPET check valve

1шт.

D38606

VALVE

CARTRIDGEsecondary relief, not preset, must be set to correct pressure when installed on valve , when stock is exhausted, order D42866 secondary relief cartridge for service

2шт.

D42866

VALVE

CARTRIDGE secondary relief, not preset, must be set to correct pressure when installed on valve

2шт.

16

129-526

CROWN NUT,Low, 3/8" - 24

ACORN 3/8" - 24 NF

1шт.

17

23150

WASHER

GASKET copper

2шт.

18

25-156

JAM NUT,Jam, 3/8"-24, G5

HEX jam, 3/8" - 24 NF

1шт.

19

D38814

ADJUSTMENT SCREW,3/8" - 24

SET special

1шт.

20

NSS

NOT SOLD SEPARAT

BODY cartridge

1шт.

21

D26872

O-RING

SEAL 1/2" I.D. x 5/8" O.D.

1шт.

22

D31450

WASHER

GASKET

1шт.

D42865

VALVE POPPET

KITseat

1шт.

23

NSS

NOT SOLD SEPARAT

SPRING relief valve

1шт.

24

NSS

NOT SOLD SEPARAT

POPPET relief valve

1шт.

25

NSS

NOT SOLD SEPARAT

SEAT relief valve

1шт.

26

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

Seal (1/4" ID x 3/8" OD)

1шт.

27

D32127

O-RING

SEAL 1-13/16" I.D. x 2" O.D.

1шт.

28

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL 1-9/16" I.D. x 1-3/4" O.D.

3шт.
