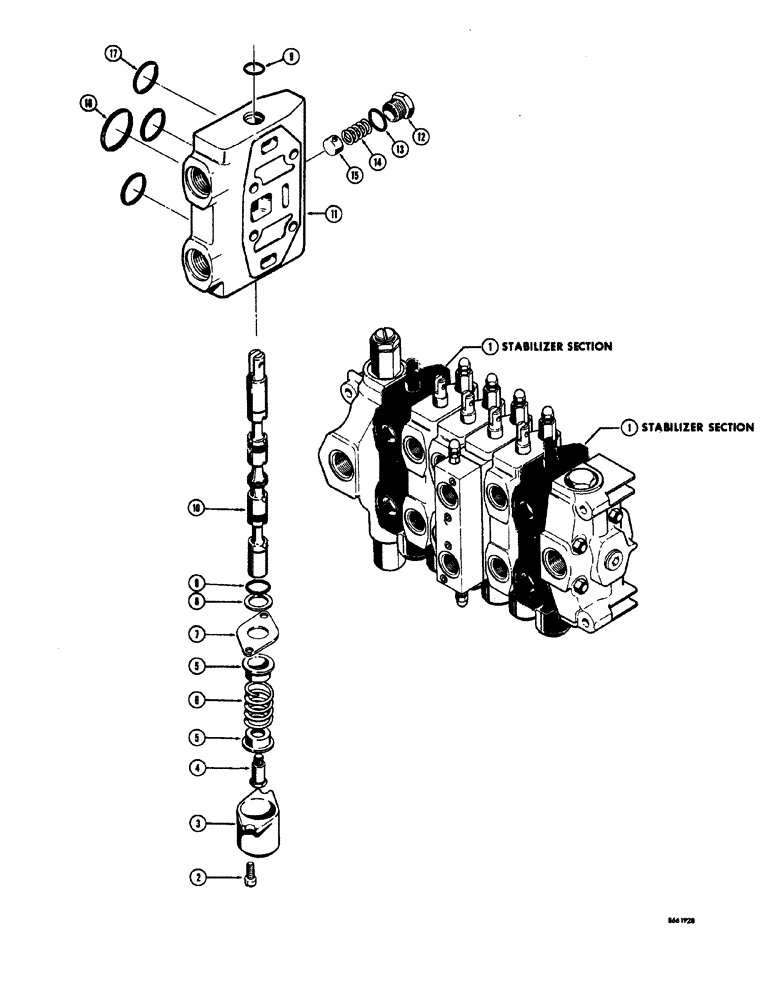

Запчасти Case 34 (192) - D40754 BACKHOE STABILIZER SECTION

1

D40754

SPARE PART STABILIZER backhoe control valve

2шт.

2

71-512

SCREW,Slotted Fil Hd, 5/16"-18 x 3/4"

FHMS 5/16" - 18 NC x 3/4"

2шт.

3

D32221

COVER

SECTION stabilizer

1шт.

4

D32128

BOLT (SPREADER)

STRIPPER special

1шт.

5

D32130

GUIDE

SPRING

2шт.

6

D40761

SPARE PART CENTERING

1шт.

7

R20556

SPARE PART RETAINING

1шт.

8

D32215

RING

BACKUP

1шт.

9

D29898

RING

SEAL quad ring

2шт.

10

NSS

NOT SOLD SEPARAT

SPOOL stabilizer section

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING stabilizer section

1шт.

12

39007

CAP

VALVE check

1шт.

13

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL

1шт.

14

R15308

VALVE SPRING

CHECK

1шт.

15

D45694

SPOOL

POPPET check valve

1шт.

16

D32127

O-RING

SEAL 1-13/16" I.D. x 2" O.D.

1шт.

17

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL 1-9/16" I.D. x 1-3/4" O.D.

3шт.
