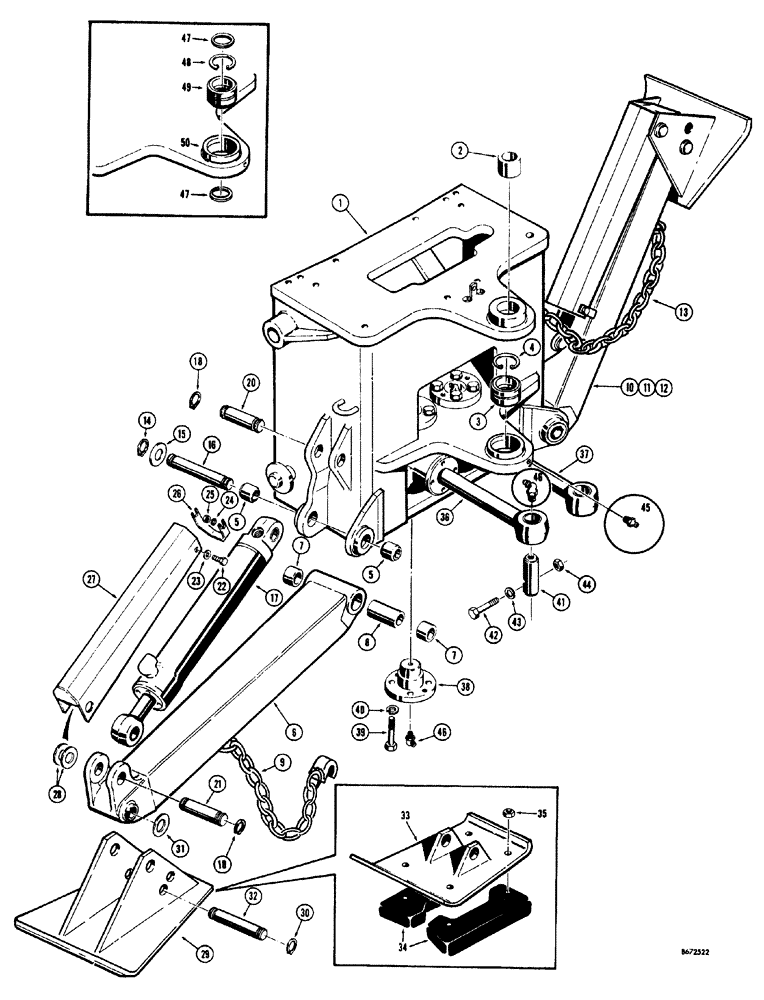

Запчасти Case 34 (102) - MOUNTING FRAME AND STABILIZER (USED BEFORE BACKHOE S.N. 1022951)

1

D41432

FRAME backhoe mounting

1шт.

2

D21927

BUSHING,51.03mm ID x 63.45mm OD x 50.8mm L

UPPER frame to swing tower

1шт.

3

D23601

HOUSING

BUSHING pivotal ball type, see D14016 bushing kit below

2шт.

4

100-21315

SNAP RING,3.156", Int, #315

BUSHING retaining, see D14016 bushing kit below, CLAMP - P-type, attaches to coolant recovery reservoir

1шт.

5

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

LOWER stabilizer bracket

4шт.

6

D37426

SUPPORT ASSY.

LEG stabilizer, R.H.

1шт.

7

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

, Serial Range: LEG-frame

2шт.

8

D38134

BUSHING

SPACER

1шт.

9

D39373

CHAIN (AG)

TRANSPORT

1шт.

10

D37425

SUPPORT ASSY.

LEG stabilizer L.H.

1шт.

11

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

, Serial Range: LEG-frame

2шт.

12

D38134

BUSHING

SPACER

1шт.

13

D39373

CHAIN (AG)

TRANSPORT

1шт.

14

D25280

SNAP RING,#175, Ext

4шт.

15

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

FLAT steel, 1-13/16"

4шт.

16

D37602

PIN

STABILIZER, Serial Range: leg-frame

2шт.

17

D40794

CYLINDER

HYDRAULIC stabilizer, 3-1/2" I.D. x 16-3/8" stroke, parts list page 165

2шт.

18

D25279

SNAP RING,M35, Int

PIN retaining

8шт.

19

RESERVED

1шт.

20

D37606

PIN,38.1mm OD x 103.5mm L

CYLINDER stabilizer, closed end

2шт.

21

D37606

PIN,38.1mm OD x 103.5mm L

CYLINDER stabilizer, rod end, used without stabilizer shield

2шт.

D42611

PIN

CYLINDER stabilizer, rod end, used with stabilizer shield

2шт.

22

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

23

195-21

WASHER,5/16"

4шт.

24

92-5

LOCK WASHER,5/16"

4шт.

25

9635082

NUT,5/16" - 18, Gr 5

4шт.

26

D40931

SPARE PART SHIELD mounting

2шт.

27

D40933

SPARE PART CYLINDER stabilizer

2шт.

28

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

SPECIAL 1/8" thick

4шт.

29

D42614

SPARE PART FOOTstabilizer, cleated

2шт.

30

D26918

SNAP RING,#125, Ext

PIN retaining

4шт.

31

195-2125

WASHER,1 5/16" x 2" x .109"

FLAT steel, 1-5/16"

4шт.

32

D37603

PIN

STABILIZER foot

2шт.

33

D38079

FOOT REST

STABILIZER street or cemetery pad, optional

2шт.

34

D40469

SHOE (ASSY)

PAD rubber, D38079 stabilizer foot , optional

4шт.

35

D29712

SPECIAL NUT

HEX special

8шт.

36

REF

INSTRUCTION

CYLINDER hydraulic, R.H., swing, see Figures 168 and 170 for proper cylinder

1шт.

37

REF

INSTRUCTION

CYLINDER hydraulic, L.H., swing, See Figures 168 and 170 for proper cylinder

1шт.

38

D30724

PIN

SWING, Serial Range: cylinder-frame

4шт.

39

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

16шт.

40

92-8

LOCK WASHER,1/2"

16шт.

41

D30761

PIN

SWING cylinder to swing tower

2шт.

42

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

HHCS 5/8" - 11 NC x 4"

2шт.

43

92-10

LOCK WASHER,5/8"

2шт.

44

25-1010

NUT,5/8"-11, G5

2шт.

45

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

46

219-39

FITTING

GREASE 45°, 1/8" NPT

6шт.

D14016

KIT

BUSHING lower mounting frame

1шт.

47

D26991

BEARING

SPACER bearing

2шт.

48

100-21315

SNAP RING,3.156", Int, #315

BUSHING retaining, CLAMP - P-type, attaches to coolant recovery reservoir

1шт.

49

D23601

HOUSING

BUSHING pivotal ball type

1шт.

50

D42630

BEARING

RETAINER

1шт.
