(188) - D38705 AND D44379 BACKHOE CONTROL VALVES

Запчасти Case 34 (188) - D38705 AND D44379 BACKHOE CONTROL VALVES

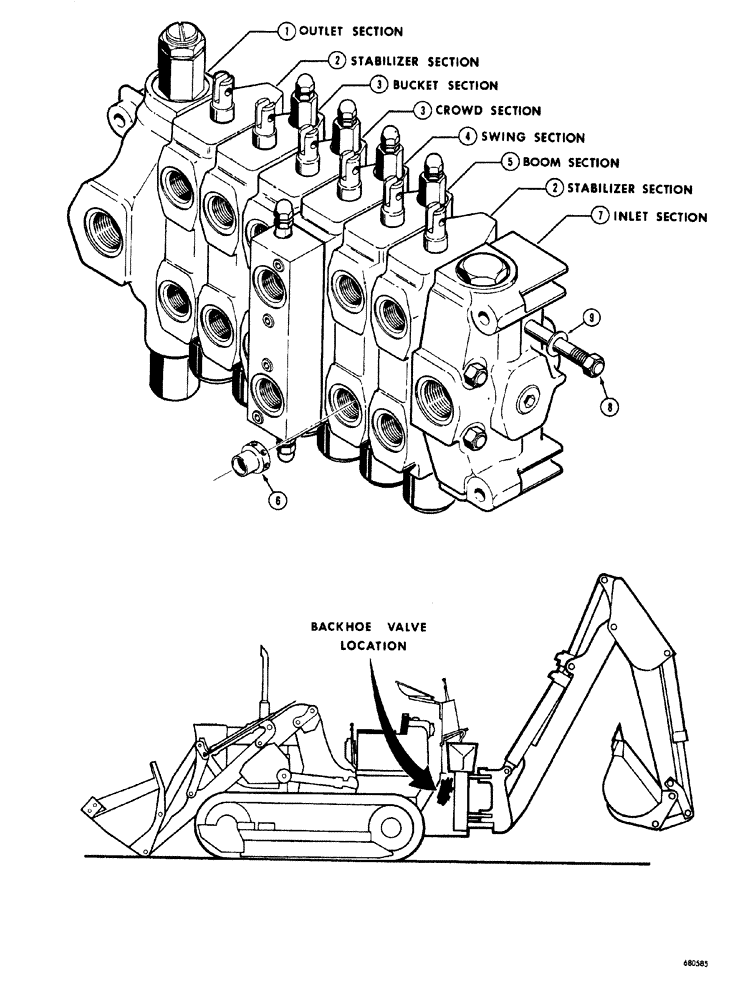

Схема запчастей Case 34 - (188) - D38705 AND D44379 BACKHOE CONTROL VALVES
5
9
2
7
2
3
4
6
8
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

D38705

SPARE PART CONTROL backhoe, order D44379 valve for service

1шт.

D44379

LOCK VALVE

CONTROLbackhoe

1шт.

1

D40758

SECTION outlet, backhoe control valve, order D48112 outlet section for service, parts list page 191

1шт.

D48112

SPARE PART OUTLET backhoe control valve, parts list page 191

1шт.

2

D40754

SPARE PART STABILIZER backhoe control valve, parts list page 193

2шт.

3

D40757

SPARE PART BUCKETand crowd, backhoe control valve, parts list page 195

2шт.

4

D40756

KNIFE SECTION

SECTION, KNIFE SWING backhoe control valve, parts list page 197

1шт.

5

D40755

SPARE PART BOOM backhoe control valve, parts list page 199

1шт.

6

D27565

VALVE

RESTRICTOR boom drop, boom section only

1шт.

7

D40753

SECTION inlet, backhoe control valve, parts list page 191

1шт.

8

D47626

SPARE PART BACKHOE control valve

4шт.

9

195-33

WASHER,1/2"

PLAIN 1/2"

4шт.
