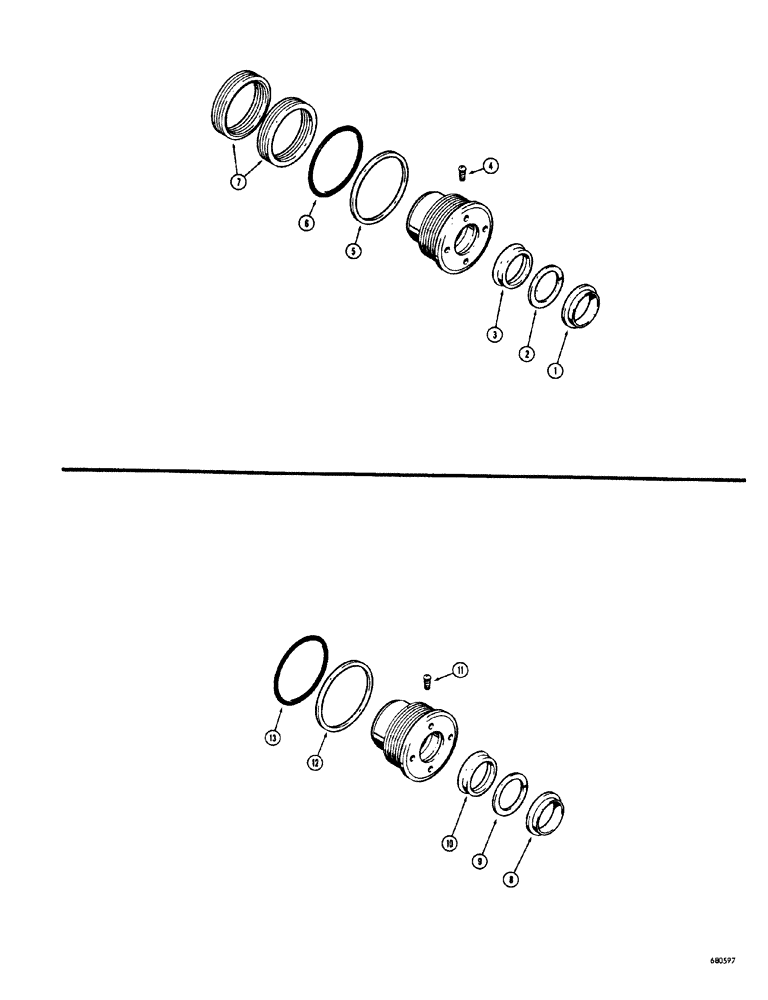

Запчасти Case 34 (186) - CYLINDER PACKING KITS (4-1/2" CYLINDER TUBE ID X 2-1/4" PISTON ROD)

D41211

X

KIT cylinder packing, gland type cylinder

1шт.

1

D39360

WIPER

PISTON rod

1шт.

2

D39539

RING

BACKUP rod seal

1шт.

3

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL piston rod

1шт.

4

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4"

1шт.

5

D42452

RING

BACKUP gland seal

1шт.

6

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

SEAL gland

1шт.

7

D42503

PACKING

PISTON

2шт.

D42878

GLAND

KIT packing

1шт.

8

D39360

WIPER

PISTON rod

1шт.

9

D39539

RING

RING backup, rod seal

1шт.

10

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL piston rod

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW self-tapping, #8 - 32 NC x 1/4"

1шт.

12

D42452

RING

BACKUP gland seal

1шт.

13

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

SEAL gland

1шт.
