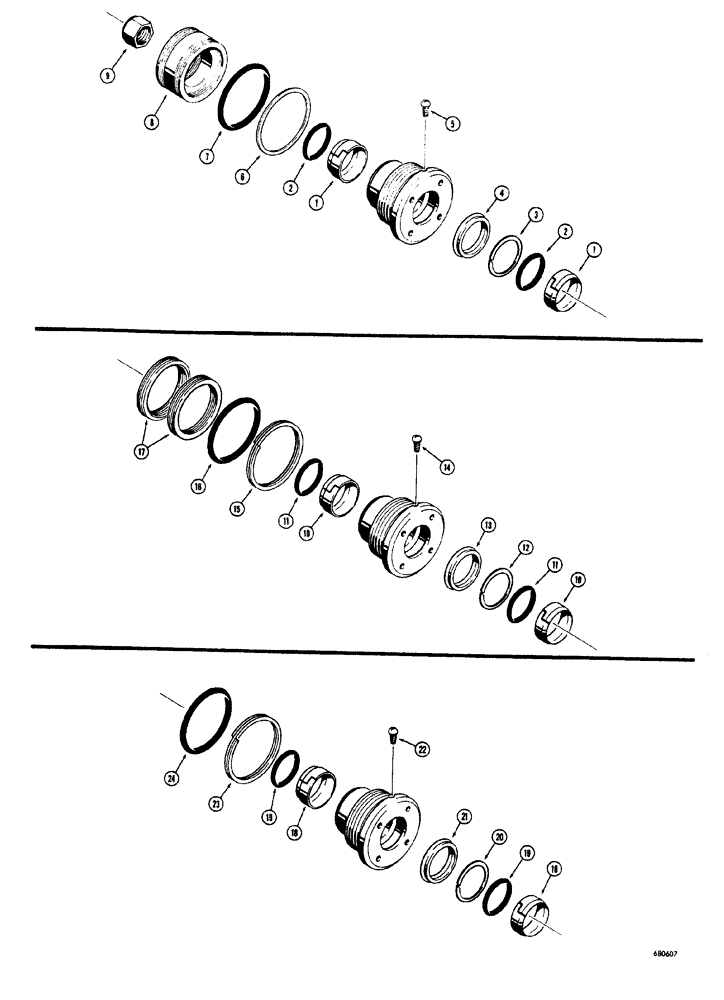

Запчасти Case 34 (182) - CYLINDER PACKING KITS (4" CYLINDER TUBE ID X 2" PISTON ROD)

D37358

GLAND

KIT cylinder packing, type cylinder

1шт.

When kit is exhausted, use D42876 gland packing kit for service. If complete cylinder packings are required, piston packings must be ordered as individual items plus (1) gland packing kit. When servicing an early production cylinder containing a fabric piston packing ring, order (2) D40689 piston packings and (1) D40690 bronze centering ring for service.

1шт.

1

D27380

SCRAPER RING

PISTON rod

2шт.

2

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL wiper

2шт.

3

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

BACKUP piston rod seal

1шт.

4

D36971

RING

SEAL piston rod

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4"

1шт.

6

D27382

RING

BACKUP gland seal

1шт.

7

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL gland

1шт.

8

D36964

PACKING

PISTON

1шт.

9

131-22

LOCK NUT,1 1/4"-12, GB

1шт.

D41401

SEAL KIT

KIT cylinder packing, gland type cylinder, order with 1 - D43113 bronze packing ring when used on cylinders not having bronze packing ring

1шт.

When kit is exhausted, use D42876 gland packing kit for service. If complete cylinder packings are required, piston packings must be ordered as individual items plus (1) gland packing kit. When servicing an early production cylinder containing a fabric piston packing ring, order (2) D40689 piston packings and (1) D40690 bronze centering ring for service.

1шт.

10

D27380

SCRAPER RING

WIPER piston rod

2шт.

11

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL wiper

2шт.

12

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

BACKUP piston rod seal

1шт.

13

D36971

RING

SEAL piston rod

1шт.

14

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4"

1шт.

15

D27382

RING

BACKUP gland seal

1шт.

16

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL gland

1шт.

17

D40689

PACKING

PISTON

2шт.

D42876

GLAND

KIT packing

1шт.

18

D27380

SCRAPER RING

WIPER piston rod

2шт.

19

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL wiper

2шт.

20

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

BACKUP piston rod seal

1шт.

21

D36971

RING

SEAL piston rod

1шт.

22

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4"

1шт.

23

D27382

RING

BACKUP gland seal

1шт.

24

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL gland

1шт.
