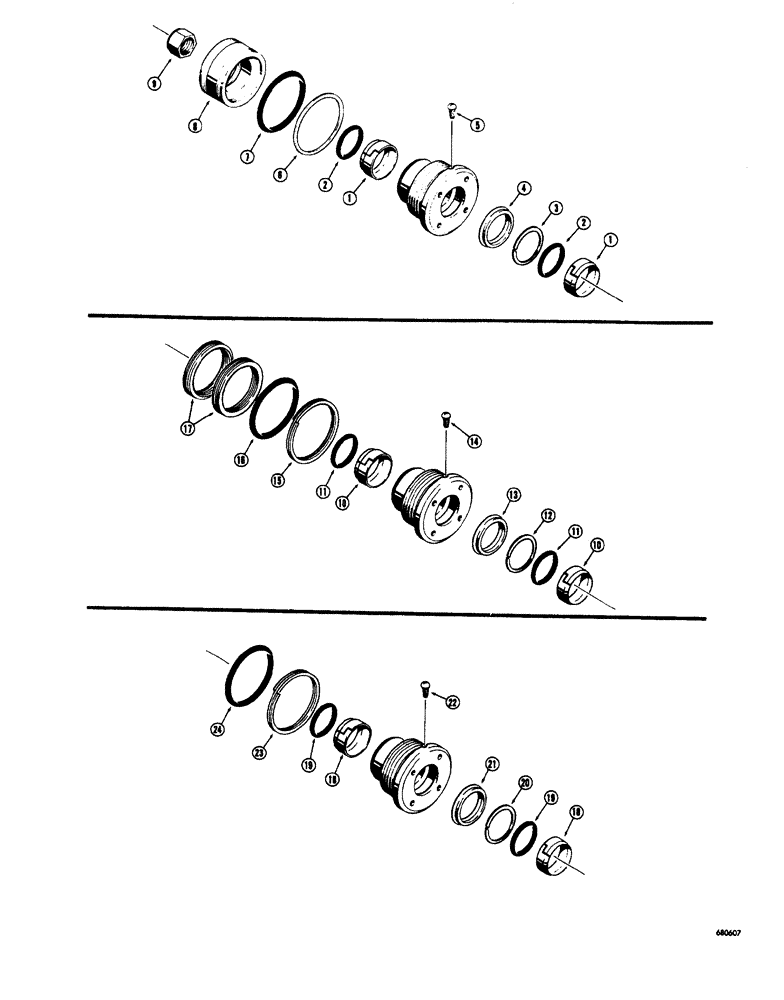

Запчасти Case 34 (180) - CYLINDER PACKING KITS (4" CYLINDER TUBE ID X 1-3/4" PISTON ROD)

D37359

SEAL KIT

KIT cylinder packing, gland type

1шт.

When kit is exhausted, use D42875 gland packing kit for service. If complete cylinder packings are required, piston packings must be ordered as individual items plus (1) gland packing kit. When servicing an early production cylinder containing a fabric piston packing ring, order (2) D40689 piston packing and (1) D40690 bronze centering ring for service.

1шт.

1

D27432

SHIM

PISTON rod

2шт.

2

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL wiper

2шт.

3

D28499

RING

BACKUP piston rod seal

1шт.

4

D36970

CUP

SEAL piston rod

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4"

1шт.

6

D36095

BACK-UP RING

BACKUP gland seal

1шт.

7

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL gland

1шт.

8

D36964

PACKING

PISTON

1шт.

9

131-19

LOCK NUT,1"-14, GB

HEX lock, 1" - 14 NF

1шт.

D41400

X

KIT cylinder packing, gland type, order with 1- D43113 bronze packing ring when used on cylinders not having bronze packing ring

1шт.

When kit is exhausted, use D42875 gland packing kit for service. If complete cylinder packings are required, piston packings must be ordered as individual items plus (1) gland packing kit. When servicing an early production cylinder containing a fabric piston packing ring, order (2) D40689 piston packing and (1) D40690 bronze centering ring for service.

1шт.

10

D27432

SHIM

PISTON rod

2шт.

11

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL wiper

2шт.

12

D28499

RING

BACKUP piston rod seal

1шт.

13

D36970

CUP

SEAL piston rod

1шт.

14

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4"

1шт.

15

D27382

RING

BACKUP gland seal

1шт.

16

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL gland

1шт.

17

D40689

PACKING

PISTON

2шт.

D42875

GASKET KIT

PACKING gland

1шт.

18

D27432

SHIM

PISTON rod

2шт.

19

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL wiper

2шт.

20

D28499

RING

BACKUP piston rod seal

1шт.

21

D36970

CUP

SEAL piston rod

1шт.

22

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4

1шт.

23

D27382

RING

BACKUP gland seal

1шт.

24

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL gland

1шт.
