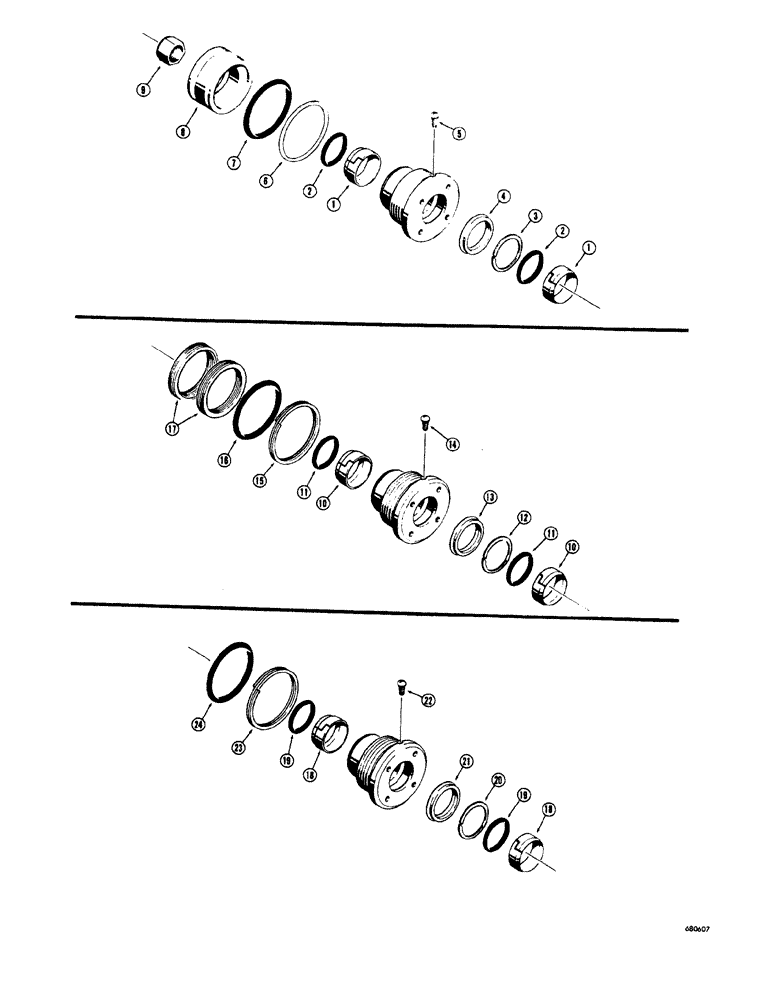

Запчасти Case 34 (178) - CYLINDER PACKING KITS (3-1/2" CYLINDER TUBE ID X 1-3/4" PISTON ROD)

D37356

GLAND

KIT cyliinder packing, type cylinder

1шт.

When kit is exhausted, use D42873 gland packing kit for service. If complete cylinder packings are required, piston packings must be ordered as inividual items plus (1) gland packing kit. When servicing an early production cylinder containing a fabric piston packing ring, order (2) D41278 piston packings and (1) D41279 bronze centering ring for service.

1шт.

1

D27432

SHIM

PISTON rod

2шт.

2

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL

2шт.

3

D28499

RING

BACKUP piston rod seal

1шт.

4

D36970

CUP

SEAL piston rod

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4"

1шт.

6

D36094

WASHER

RING backup, gland seal

1шт.

7

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL gland s

1шт.

8

D36963

PACKING

PISTON

1шт.

9

131-19

LOCK NUT,1"-14, GB

HEX lock, 1" - 14 NF

1шт.

D41399

SEAL KIT

KIT cylinder packing, gland type cylinder, order with 1 - D41279 bronze packing ring when used on cylinders not having bronze packing ring

1шт.

When kit is exhausted, use D42873 gland packing kit for service. If complete cylinder packings are required, piston packings must be ordered as inividual items plus (1) gland packing kit. When servicing an early production cylinder containing a fabric piston packing ring, order (2) D41278 piston packings and (1) D41279 bronze centering ring for service.

1шт.

10

D27432

SHIM

PISTON rod

2шт.

11

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL wiper

2шт.

12

D28499

RING

BACKUP piston rod seal

1шт.

13

D36970

CUP

SEAL piston rod

1шт.

14

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4"

1шт.

15

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

BACKUP gland seal

1шт.

16

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL gland

1шт.

17

D41278

PACKING

PISTON

2шт.

D42873

GASKET KIT

PACKING gland

1шт.

18

D27432

SHIM

PISTON rod

2шт.

19

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL wiper

2шт.

20

D28499

RING

BACKUP piston rod seal

1шт.

21

D36970

CUP

SEAL piston rod

1шт.

22

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4"

1шт.

23

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

BACKUP gland seal

1шт.

24

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL gland

1шт.
