(176) - D38492 AND D42628 BACKHOE BUCKET CYLINDERS

Запчасти Case 34 (176) - D38492 AND D42628 BACKHOE BUCKET CYLINDERS

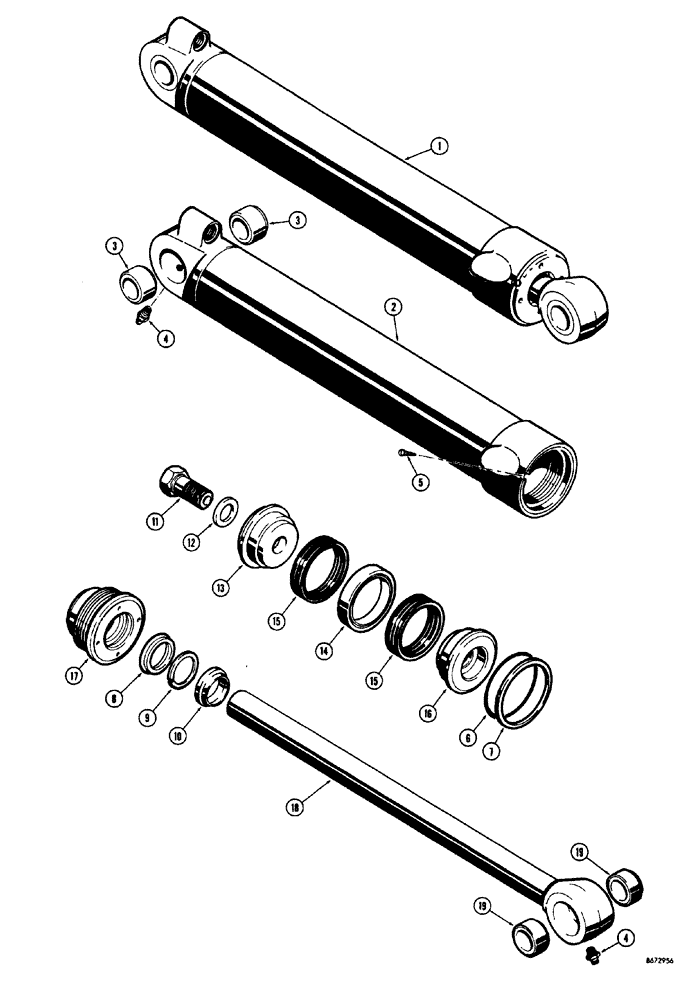

Схема запчастей Case 34 - (176) - D38492 AND D42628 BACKHOE BUCKET CYLINDERS
3
7
2
19
15
12
11
13
3
4
1
18
19
6
17
9
16
14
8
15
5
4
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D38492

SPARE PART CYLINDER hydraulic, bucket, 4" I.D. x 27-1/4" stroke, when stock is exhausted, order D42628 bucket cylinder for service

1шт.

D42628

CYLINDER

HYDRAULIC bucket, 4" I.D. x 27-1/4" stroke

1шт.

2

D38962

SPARE PART TUBE cylinder, when stock is exhausted, order D43351 tube for service

1шт.

D43351

CYLINDER

TUBE

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

TUBE

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

D42877

GLAND

KIT packing

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4"

1шт.

6

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL

1шт.

7

D27382

RING

BACKUP gland seal

1шт.

8

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL rod

1шт.

9

D39539

RING

BACKUP rod seal

1шт.

10

D39360

WIPER

ROD

1шт.

11

D31642

BOLT

SPECIAL

1шт.

12

D95033

WASHER

SPECIAL

1шт.

13

D28370

PISTON

SPLIT bolt end

1шт.

14

D43113

PACKAGE

PISTON

1шт.

15

D43112

PACKING

PISTON chevron

2шт.

16

D38958

PISTON

SPLIT eye end

1шт.

17

D39368

GLAND

ASSEMBLY packing

1шт.

18

D38957

PISTON ROD

ROD piston, 2-1/4" dia.

1шт.

19

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

ROD

2шт.
