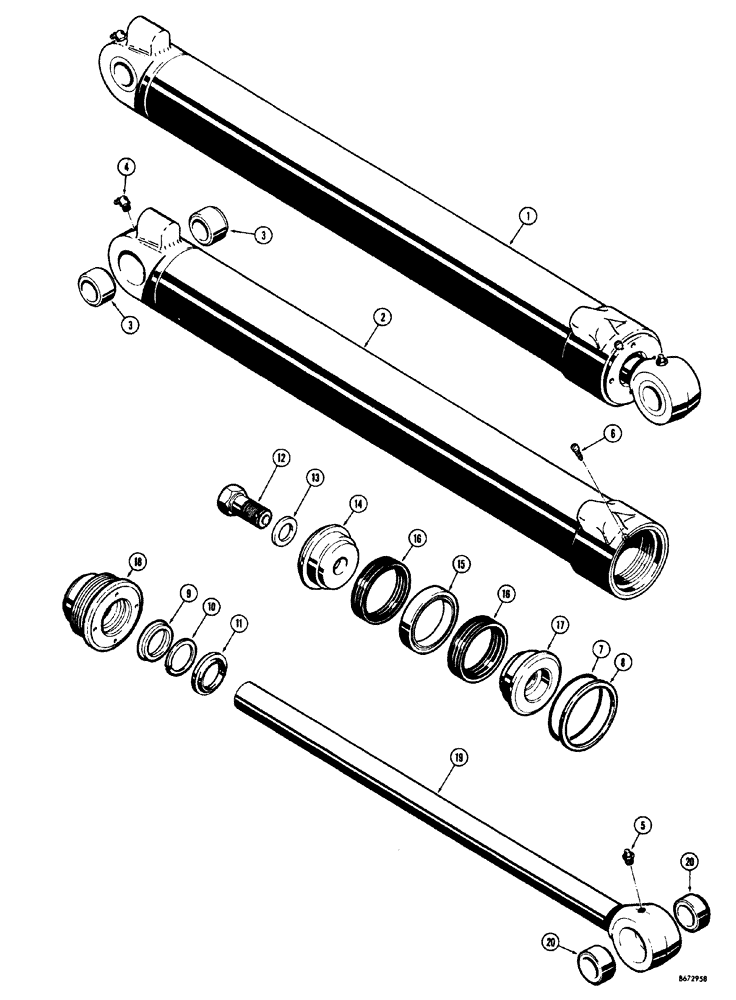

Запчасти Case 34 (174) - D38491 AND D43575 BACKHOE CROWD CYLINDERS

1

D38491

SPARE PART CYLINDER hydraulic, crowd, 4-1/2" I.D. x 35-1/8" stroke, when stock is exhausted, order D43575 crowd cylinder for service

1шт.

D43575

CYLINDER ASSY.

HYDRAULIC crowd, 4-1/2" I.D. 35-1/8" stroke

1шт.

2

D38969

SPARE PART TUBE cylinder, used with D38491 crowd cylinder, when stock is exhausted, order D43576 tube for service

1шт.

D43576

CYLINDER

TUBE cylinder, used with D43575 crowd cylinder

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

TUBE

2шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

D42878

GLAND

KIT packing

1шт.

6

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4"

1шт.

7

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

SEAL gland

1шт.

8

D42452

RING

BACKUP gland seal

1шт.

9

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL rod

1шт.

10

D39539

RING

BACKUP rod seal

1шт.

11

D39360

WIPER

ROD

1шт.

12

D31642

BOLT

SPECIAL

1шт.

13

D95033

WASHER

SPECIAL

1шт.

14

D46931

PISTON

SPLIT bolt end

1шт.

15

D42474

PACKAGE, RINGS

PISTON

1шт.

16

D42503

PACKING

PISTON chevron

2шт.

17

D46425

PISTON

SPLIT eye end

1шт.

18

D39369

GLAND

ASSEMBLY packing

1шт.

19

D38965

HOUSING

ROD piston, 2-1/4" dia.

1шт.

20

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

ROD

2шт.
