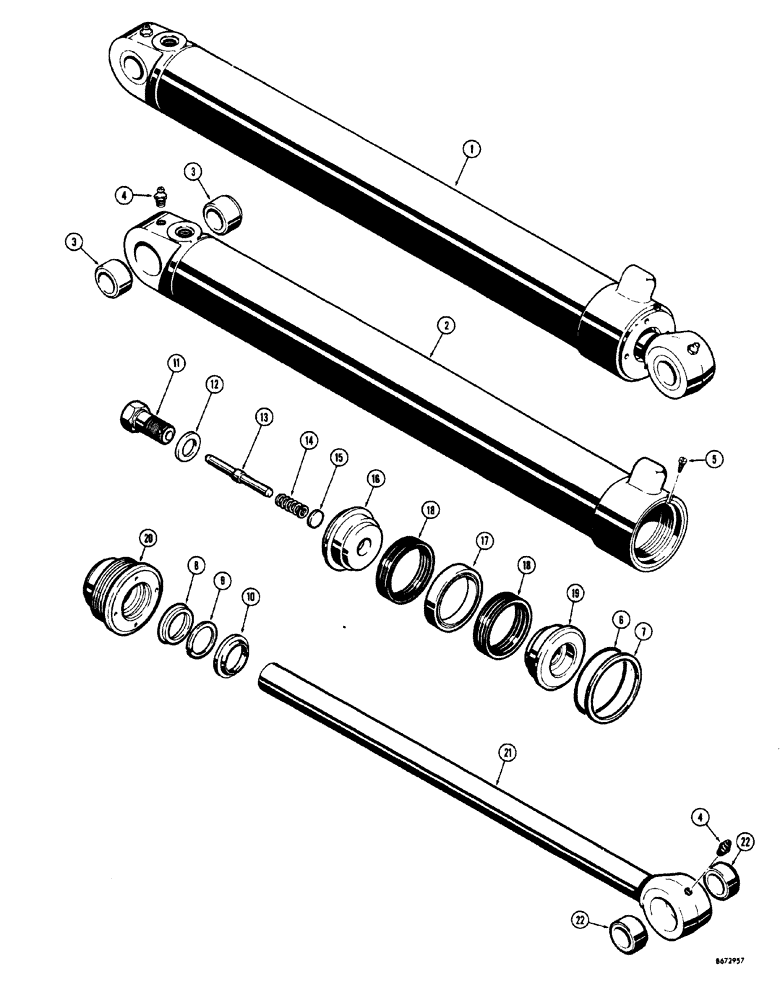

Запчасти Case 34 (172) - D40420 AND D45503 BACKHOE BOOM CYLINDERS

1

D40420

SPARE PART CYLINDER hydraulic, boom, 4-1/2" I.D. x 39-3/16" stroke, when stock is exhausted, order D45503 boom cylinder for service

1шт.

D45503

CYLINDER ASSY.

HYDRAULIC boom, 4-1/2" I.D. x 39-3/16" stroke

1шт.

2

D40419

X

TUBE cylinder, used with D40420 boom cylinder, when stock is exhausted, order D45504 tube for service

1шт.

D45504

CYLINDER

TUBE used with D45503 boom

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

TUBE

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

D42878

GLAND

KIT packing

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4"

1шт.

6

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

SEAL gland

1шт.

7

D42452

RING

BACKUP gland seal

1шт.

8

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL rod

1шт.

9

D39539

RING

BACKUP rod seal

1шт.

10

D39360

WIPER

ROD

1шт.

11

D41359

BOLT,Hex, 1 1/4" - 12 x 63.5mm, Gr 8

SPECIAL used with D40420 boom cylinder

1шт.

D45507

BOLT

SPECIAL used with D45503 boom cylinder

1шт.

12

D95033

WASHER

SPECIAL

1шт.

13

D38679

PIN

PIN restrictor, used with D40420 boom cylinder

1шт.

D45508

PIN

RESTRICTOR used with D45503 boom cylinder

1шт.

14

D38683

SPRING

PIN

1шт.

15

D38684

SPACER

SPACER spring

1шт.

16

D46931

PISTON

SPLIT bolt end

1шт.

17

D42474

PACKAGE, RINGS

PISTON

1шт.

18

D42503

PACKING

PISTON chevron

2шт.

19

D46425

PISTON

SPLIT eye end

1шт.

20

D39369

GLAND

ASSEMBLY packing

1шт.

21

D40416

SPARE PART PISTON 2-1/4" dia.

1шт.

22

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

ROD

2шт.
