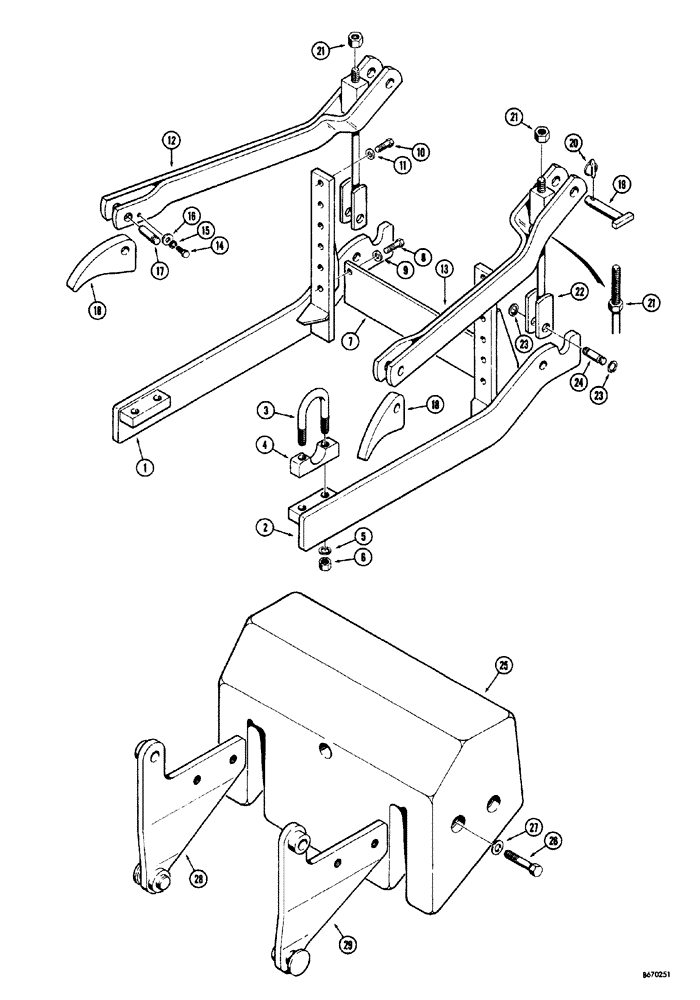

Запчасти Case 34 (100) - BACKHOE MOUNTING PARTS AND COUNTERWEIGHT
№
Артикул
Название
Примечание
Количество
1
D37322
SUPPORT arm, lower, R.H., mounting parts
1шт.
2
D37323
SUPPORT arm, lower, L.H., mounting parts
1шт.
3
D38924
SPARE PART SUPPORT mounting parts
2шт.
4
D31787
CLAMP
SHAFT pivot, mounting parts
2шт.
5
D34666
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
SPECIAL mounting parts
4шт.
6
230-41112
LOCK NUT,3/4"-10, GA
HEX lock, 3/4" - 10 NC, mounting parts
4шт.
7
D37319
SPARE PART CENTER, R.H. to L.H., lower support arm, mounting parts
1шт.
8
113-721
X
HHCS 3/4" - 10 NC x 3", mounting parts
2шт.
9
D34666
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
SPECIAL mounting parts
2шт.
10
113-719
X
HCCS 3/4" - 10 NC x 2-1/4", mounting parts
10шт.
11
D34666
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
SPECIAL mounting parts
10шт.
12
D39496
SPARE PART SUPPORT upper, R.H., mounting parts
1шт.
13
D39497
SUPPORT arm, upper, L.H., mounting parts
1шт.
14
13-1016
BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd
Mounting parts
2шт.
15
192-165
LOCK WASHER,5/8"
Mounting parts
2шт.
16
70523
WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk
SPECIAL pin retaining, mounting parts
2шт.
17
D39423
SPARE PART MOUNTING parts
2шт.
18
D39422
SPARE PART FRAME main, mounting parts
2шт.
19
D38709
PIN
SPARE PART ANCHOR upper support arm to backhoe mounting frame, parts
2шт.
20
D33805
PIN
KLIK retaining, mounting parts
2шт.
21
25-1116
NUT,1"-14, G5
HEX 1" - 14 NF, mounting parts
4шт.
22
D37097
ROD
TENSION upper to lower support arm, mounting parts
2шт.
23
D26918
SNAP RING,#125, Ext
mounting parts #125, Ext
4шт.
24
D33816
PIN
MOUNTING rod to lower support arm, parts
2шт.
25
D38567
COUNTERWEIGHT rear, 2500 Ibs.
1шт.
26
13-1680
CAPSCREW,Hex, 1" - 8 x 5", Gr 5
BOLT, , Counterweight Hex, 1"-8 x 5", G5
4шт.
27
195-53
WASHER,1" x 2" x .134"
PLAIN 1", counterweight
4шт.
28
D38885
SPARE PART COUNTERWEIGHT mounting, L.H.
1шт.
29
D38886
SPARE PART COUNTERWEIGHT mounting, R.H.
1шт.
Выбрано товаров: 29
