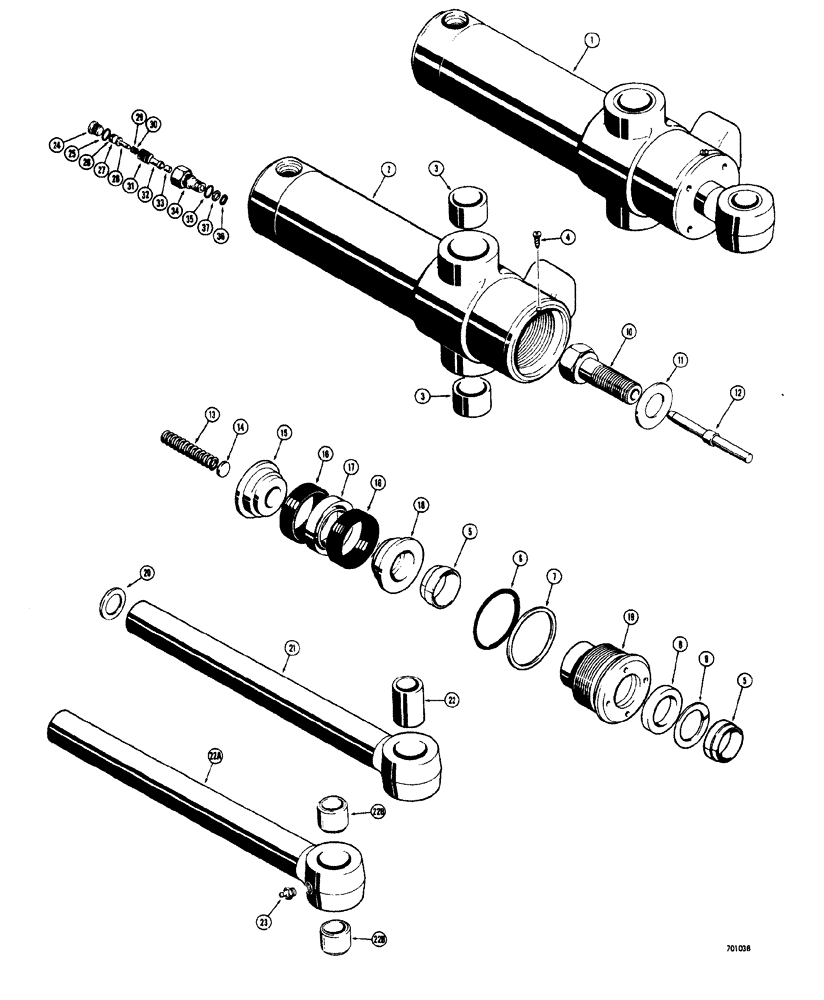

Запчасти Case 34 (170) - BACKHOE SWING CYLINDERS WITH NON-ADJUSTABLE TYPE RELIEF VALVE

1

D47553

SPARE PART SWING, R.H., 4" I.D. x 11" stroke

1шт.

1

D47552

CYLINDER

SWING, L.H., 4" I.D. x 11" stroke

1шт.

2

D47555

TUBE

CYLINDER, R.H.

1шт.

2

D47554

BODY

TUBE cylinder, L.H.

1шт.

3

D30735

BUSHING,51.03mm ID x 60.33mm OD x 28.57mm L

TUBE

2шт.

4

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4"

1шт.

5

D27432

SHIM

ROD

2шт.

6

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL gland

1шт.

7

D27382

RING

BACKUP gland seal

1шт.

8

D36970

CUP

SEAL rod

1шт.

9

D28499

RING

BACKUP rod seal

1шт.

10

D41359

BOLT,Hex, 1 1/4" - 12 x 63.5mm, Gr 8

SPECIAL

1шт.

11

D95033

WASHER

SPECIAL bolt

1шт.

12

D38679

PIN

PIN restrictor

1шт.

13

D38683

SPRING

PIN

1шт.

14

D38684

SPACER

SPACER pin

1шт.

15

D49161

PISTON

SPLIT bolt end half

1шт.

16

D47204

PACKING,89.15mm ID x 100.86mm OD

PISTON chevron

2шт.

17

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

METAL piston packing

1шт.

18

D49160

PISTON

SPLIT rod end half

1шт.

19

G32738

GLAND

PACKING

1шт.

20

D95035

WASHER

SPECIAL rod

1шт.

21

D37736

PISTON ROD

ROD piston, 1-3/4" dia., without grease fitting in rod eye

1шт.

22

D30741

BUSHING,38.33mm ID x 47.63mm OD x 50.8mm L

ROD

1шт.

22a

D49008

ROD

PISTON 1-3/4" dia., uses grease fitting in rod eye

1шт.

22b

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

ROD

2шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

If used

1шт.

D47557

VALVE

CARTRIDGE relief, non-adjustable

1шт.

24

D40354

PLUG

VALVE relief

1шт.

26

D40355

SHIM,.005" Thk

Spring guide

1шт.

27

16917

SHIM

GUIDE spring, .010"

1шт.

28

D37150

GUIDE

SPRING

1шт.

29

D37147

RING

BACKUP spring guide

1шт.

30

D37155

SEAL

"O" RING, spring guide

1шт.

31

D37148

SPRING

PLUNGER

1шт.

32

D37151

PLUNGER

VALVE relief

1шт.

33

D37075

SEAT

PLUNGER

1шт.

34

D47667

CAP

BODY relief valve

1шт.

35

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL valve body to cylinder

1шт.

36

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

SEAL valve body

1шт.

37

D37071

RING

BACKUP valve body seaL

1шт.

25

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Seal, Plug

1шт.
