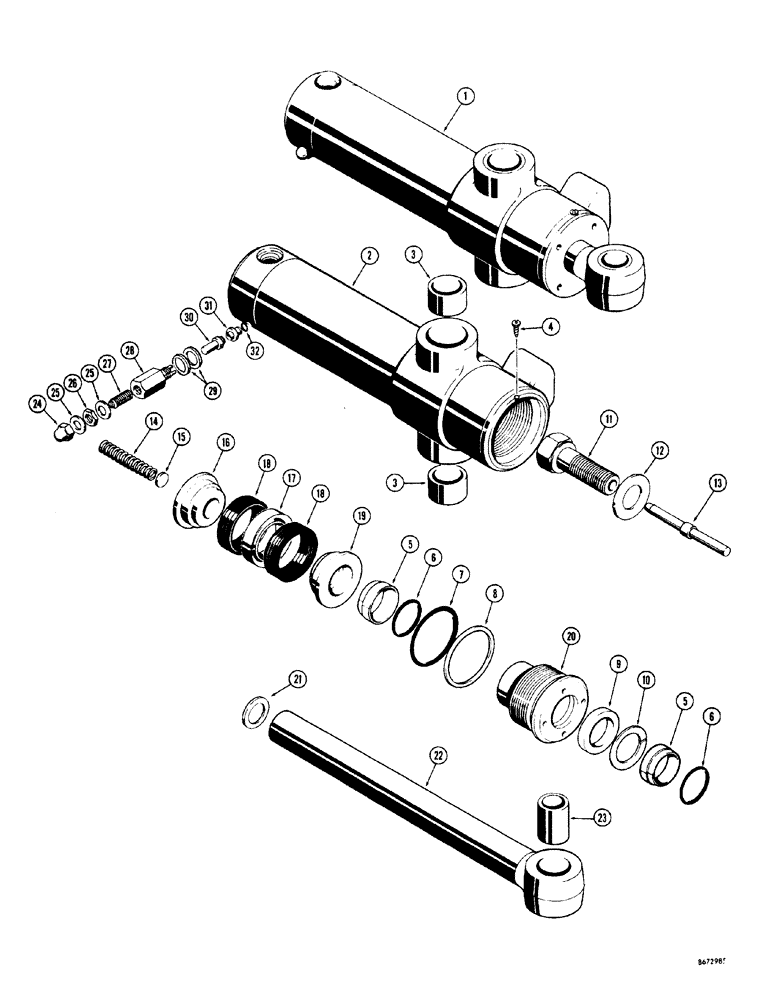

Запчасти Case 34 (168) - D37625 AND D37626 BACKHOE SWING CYLINDERS WITH ADJUSTABLE TYPE RELIEF VALVE

1

D37625

CYLINDER ASSY.

HYDRAULIC swing, L.H., 4" I.D. x 11" stroke

1шт.

D37626

HYDRAULIC CYLINDER

HYDRAULIC swing, R.H., 4" I.D. x 11" stroke

1шт.

2

D37737

CYLINDER

TUBE, L.H.

1шт.

D37738

CYLINDER

TUBE, R.H.

1шт.

3

D30735

BUSHING,51.03mm ID x 60.33mm OD x 28.57mm L

TUBE

2шт.

D42875

GASKET KIT

PACKING gland

1шт.

4

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4"

1шт.

5

D27432

SHIM

ROD

2шт.

6

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL wiper

2шт.

7

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL gland

1шт.

8

D27382

RING

BACKUP gland seal

1шт.

9

D36970

CUP

SEAL rod

1шт.

10

D28499

RING

BACKUP rod seal

1шт.

11

D41359

BOLT,Hex, 1 1/4" - 12 x 63.5mm, Gr 8

SPECIAL

1шт.

12

D95033

WASHER

SPECIAL bolt

1шт.

13

D38679

PIN

PIN restrictor

1шт.

14

D38683

SPRING

PIN

1шт.

15

D38684

SPACER

SPACER spring

1шт.

16

D49161

PISTON

SPLIT bolt end

1шт.

17

D43113

PACKAGE

PISTON

1шт.

18

D43112

PACKING

PISTON chevron

2шт.

19

D49160

PISTON

SPLIT eye end

1шт.

20

G32738

GLAND

PACKING

1шт.

21

D95035

WASHER

SPECIAL rod

1шт.

22

D37736

PISTON ROD

ROD piston, 1-3/4" dia.

1шт.

23

D30741

BUSHING,38.33mm ID x 47.63mm OD x 50.8mm L

ROD

1шт.

D42478

VALVE

CARTRIDGE relief valve, not preset, must be set to correct pressure when installed on cylinder

1шт.

Relief valve has been relocated at closed end of cylinder on late production cyilinders.

1шт.

24

129-526

CROWN NUT,Low, 3/8" - 24

ACORN 3/8" - 24 NF

1шт.

25

23150

WASHER

GASKET copper

2шт.

26

25-156

JAM NUT,Jam, 3/8"-24, G5

HEX jam, 3/8" - 24 NF

1шт.

27

D38814

ADJUSTMENT SCREW,3/8" - 24

SET special

1шт.

28

NSS

NOT SOLD SEPARAT

ASSEMBLY body, cartridge

1шт.

29

16219

GASKET

GASKET special

2шт.

D40187

PACKAGE

KIT seat and poppet

1шт.

30

NSS

NOT SOLD SEPARAT

POPPET cartridge

1шт.

31

NSS

NOT SOLD SEPARAT

SEAT poppet

1шт.

32

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

Seal

1шт.
