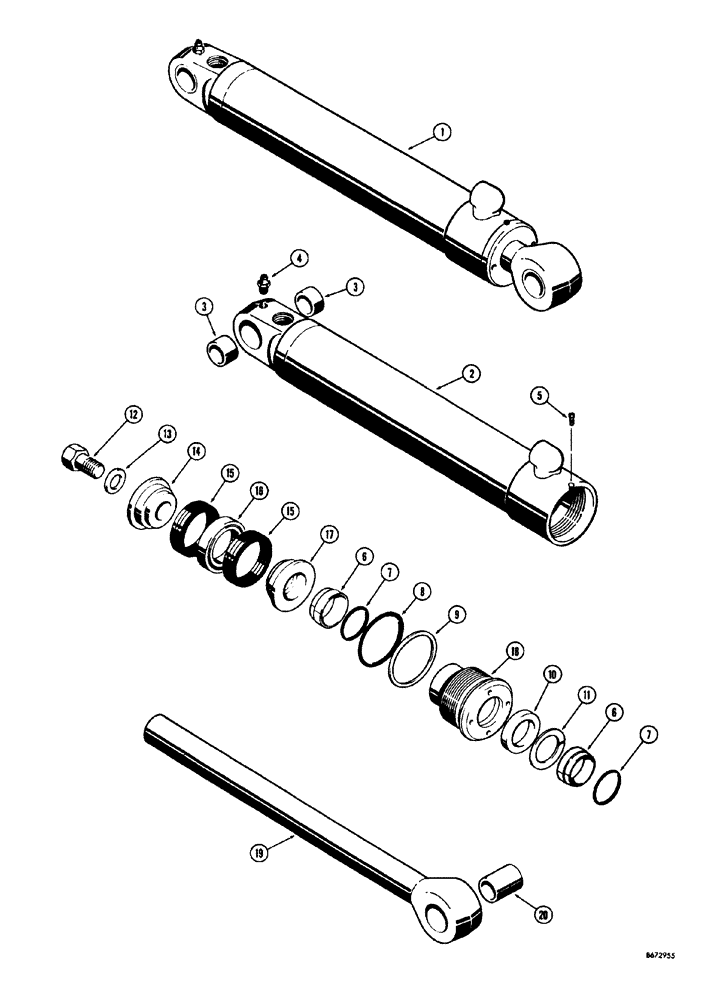

Запчасти Case 34 (166) - BACKHOE STABILIZER CYLINDER USED ON BACKHOE SERIAL NO. 1022951 AND AFTER

1

D42708

SPARE PART STABILIZER 4" I.D. x 21-3/8" stroke

2шт.

2

D42707

CYLINDER

TUBE

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

TUBE

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

D42876

GLAND

KIT packing

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4"

1шт.

6

D27380

SCRAPER RING

WIPER rod

2шт.

7

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL wiper

2шт.

8

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL gland

1шт.

9

D27382

RING

BACKUP gland seal

1шт.

10

D36971

RING

SEAL rod

1шт.

11

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

BACKUP rod seal

1шт.

12

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

Special

1шт.

13

D95033

WASHER

SPECIAL

1шт.

14

D28370

PISTON

SPLIT bolt end

1шт.

15

D43112

PACKING

PISTON chevron

2шт.

16

D43113

PACKAGE

PACKING piston

1шт.

17

D28371

PISTON

SPLIT eye end

1шт.

18

D27386

HEAD

PACKING

1шт.

19

D42703

ROD ASSY.

PISTON 2" dia.

1шт.

20

D42788

BUSHING,44.68mm ID x 53.98mm OD x 28.57mm L

BUSHING rod

1шт.
