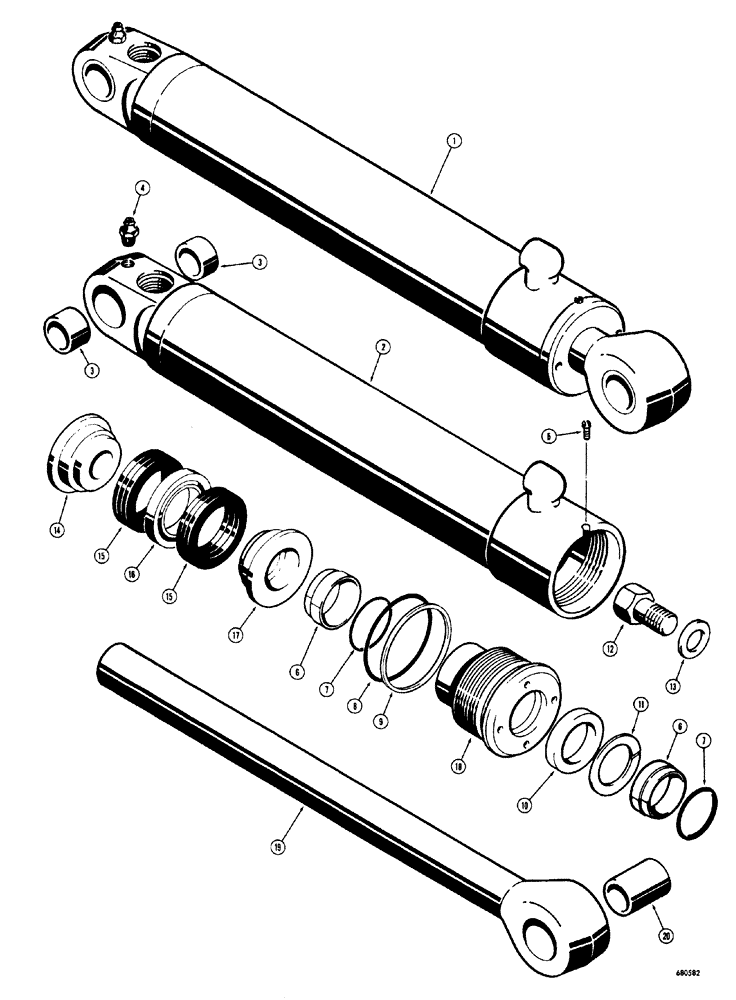

Запчасти Case 34 (164) - BACKHOE STABILIZER CYLINDER USED BEFORE BACKHOE SERIAL NO. 1022951

1

D40794

CYLINDER

HYDRAULIC stabilizer, 3-1/2" I.D. x 16-3/8" stroke

2шт.

2

D37792

TUBE

SPARE PART CYLINDER

1шт.

3

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

TUBE

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

D42873

GASKET KIT

PACKING gland

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4"

1шт.

6

D27432

SHIM

ROD

2шт.

7

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL

2шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL

1шт.

9

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

BACKUP gland seal

1шт.

10

D36970

CUP

SEAL rod

1шт.

11

D28499

RING

BACKUP rod seal

1шт.

12

D32861

BOLT

SPECIAL

1шт.

13

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

SPECIAL

1шт.

14

D28367

PISTON

SPLIT bolt end

1шт.

15

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

PISTON chevron

2шт.

16

D41279

PACKAGE, RINGS

PISTON

1шт.

17

D28369

PISTON

SPLIT eye end

1шт.

18

G32743

GLAND

PACKING

1шт.

19

D37789

ROD

PISTON 1-3/4" dia.

1шт.

20

D30741

BUSHING,38.33mm ID x 47.63mm OD x 50.8mm L

ROD

1шт.
