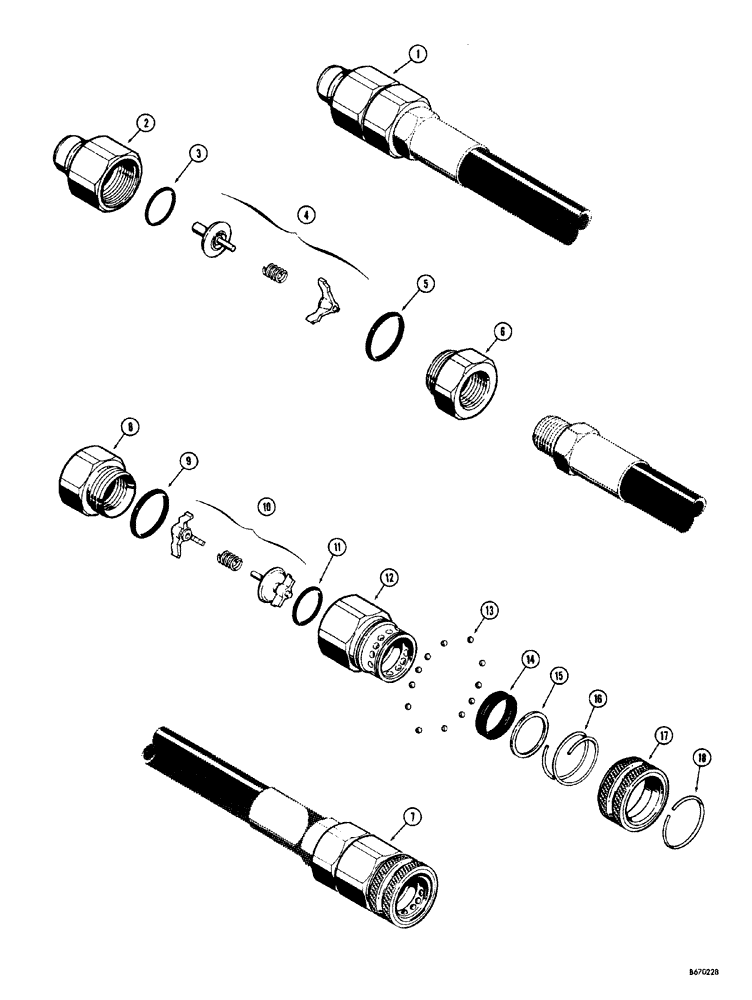

Запчасти Case 34 (162) - HYDRAULIC COUPLINGS

1

D37223

SPARE PART MALE snap-tite, D37223

1шт.

2

D41804

BODY male coupling, D37223

1шт.

3

D41803

O-RING

SEAL valve, D37223

1шт.

4

D41805

ASSEMBLY valve, male coupling, D37223

1шт.

5

D41802

SPARE PART SEAL fitting, D37223

1шт.

6

D41801

FITTING end, D37223

1шт.

7

D37222

COUPLING

FEMALE snap-tite, D37222

1шт.

6

D41801

FITTING end, D37222

1шт.

9

D41802

SPARE PART SEAL fitting, D37222

1шт.

10

D41806

ASSEMBLY valve, female coupling, D37222

1шт.

11

D41803

O-RING

SEAL valve, D37222

1шт.

12

D41807

BODY female coupling, D37222

1шт.

13

D41810

X

KIT ball, Includes: 12, D37222

1шт.

D42852

SEAL ASSY.

KIT seal, female coupling, D37222

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL ring, special, D37222

1шт.

15

NSS

NOT SOLD SEPARAT

RING backup, D37222

1шт.

16

D41808

VALVE SPRING

SLEEVE, D37222

1шт.

17

D41809

SLEEVE ball retaining, D37222

1шт.

18

D41811

RING retaining, D37222

1шт.
