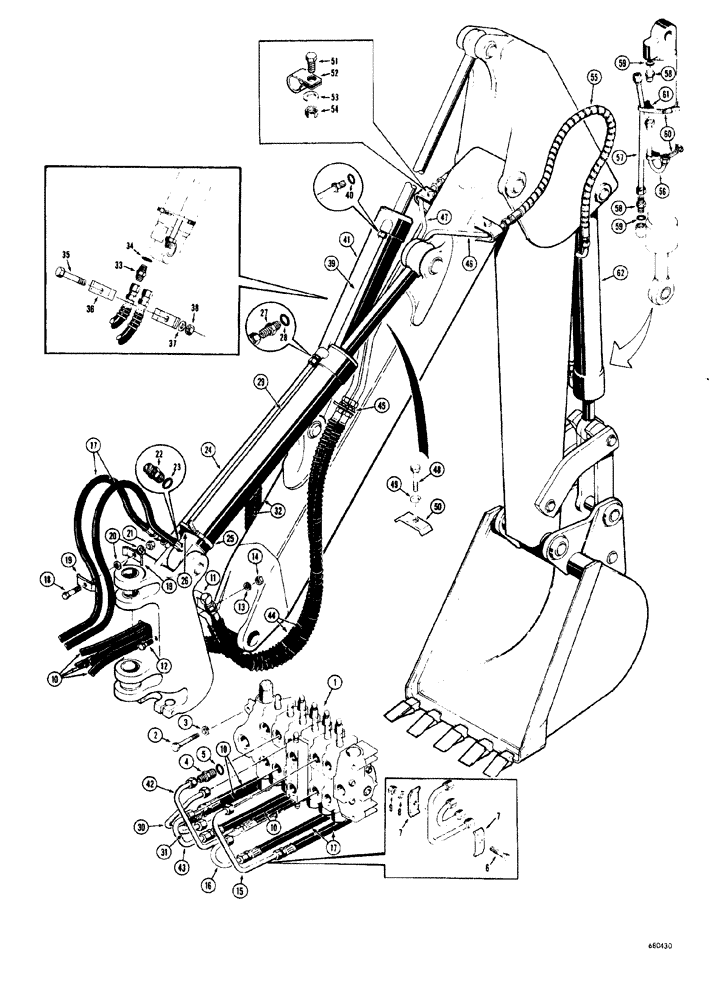

Запчасти Case 34 (158) - BOOM, CROWD AND BUCKET CYLINDER HYDRAULICS USED ON BACKHOE SERIAL NO. 1022951 AND AFTER

1

REF

INSTRUCTION

CONTROL backhoe, see Figure 188 for proper valve

1шт.

2

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

Lower mounting hole in valve inlet section

1шт.

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

Upper mounting hole in valve inlet section, mounting hole in valve outlet section

2шт.

3

92-8

LOCK WASHER,1/2"

3шт.

4

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

MALE straight

6шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

6

13528

SPARE PART HHCS 5/16" - 18 NC x 1-3/4"

3шт.

7

D20045

PLATE ASSY.

CLAMP tube

6шт.

8

95-5

WASHER,3/8" x 7/8" x .083"

WROT standard, 5/16"

3шт.

9

131-4

LOCK NUT,5/16"-18, GB

3шт.

10

D42600

HOSE

CROWD and bucket section ports to manifold, 22-1/2" long

4шт.

11

D44652

MANIFOLD

ROUTING hydraulic

1шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

HEX 3/8" - 16 NC

2шт.

15

D40649

TUBE

SECTION boom cylinder hydraulics, upper port

1шт.

16

D40642

TUBE

SECTION boom cylinder hydraulics, lower port

1шт.

17

D42934

HOSE ASSY.

BOOM section ports to boom cylinder hydraulics, 61" long

2шт.

18

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Boom cylinder hydraulics

1шт.

19

D42833

CLAMP

HOSE boom cylinder hydraulics

2шт.

20

92-7

LOCK WASHER,7/16"

Boom cylinder hydraulics

2шт.

21

131-8

LOCK NUT,7/16"-14, GB

Boom cylinder hydraulics

1шт.

22

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

MALE straight, boom cylinder hydraulics

1шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal, Boom cylinder hydraulics

1шт.

24

D40653

SPARE PART CYLINDER boom, hydraulics, rod end

1шт.

25

214-275

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

TUBE to boom cylinder hydraulics

1шт.

26

D38648

BLOCK

SPACER clamp, boom cylinder hydraulics

1шт.

27

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Male, straight, boom cylinder

1шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal, Boom cylinder hydraulics

1шт.

29

D45503

CYLINDER ASSY.

HYDRAULIC boom cylinder, 4-1/2" I.D. x 39-3/16" stroke

1шт.

30

D40649

TUBE

SECTION crowd cylinder, upper port

1шт.

31

D40642

TUBE

SECTION crowd cylinder, lower port

1шт.

32

D42599

TYRE/TIRE

HOSE manifold to crowd cylinder hydraulics, 46" long

2шт.

33

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

MALE straight, crowd cylinder hydraulics

1шт.

34

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal, Crowd cylinder hydraulics

1шт.

35

13532

SPARE PART

HHCS 5/16" - 18 NC x 2", crowd cylinder hydraulics

1шт.

36

D33316

CLAMP

HOSE crowd cylinder hydraulics

2шт.

37

195-21

WASHER,5/16"

Crowd cylinder hydraulics

1шт.

38

131-4

LOCK NUT,5/16"-18, GB

Crowd cylinder hydraulics

1шт.

39

D40644

SPARE PART CYLINDER crowd, hydraulics, rod end

1шт.

40

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal, Crowd cylinder hydraulics

1шт.

41

D43575

CYLINDER ASSY.

HYDRAULIC crowd cylinder, 4-1/2" I.D. x 35-1/8" stroke, parts list page 175

1шт.

42

D40640

SPARE PART SECTION bucket cylinder hydraulics, upper port

1шт.

43

D40651

TUBE

SECTION bucket cylinder hydraulics lower port

1шт.

44

D44131

HOSE ASSY.

MANIFOLD to bucket cylinder hydraulics, 57" long

2шт.

45

D26231

NUT

HEX jam, special, bucket cylinder hdyraulics

2шт.

46

D44132

SPARE PART VALVE to bucket cylinder hydraulics, R.H.

1шт.

47

D44134

SPARE PART VALVE to bucket cylinder hydraulics, L.H.

1шт.

48

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bucket cylinder hydraulics

1шт.

49

92-6

LOCK WASHER,3/8"

bucket cylinder hydraulics

1шт.

50

D40236

CLAMP

TUBE bucket cylinder hydraulics

1шт.

51

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Bucket cylinder hydraulics

2шт.

52

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

TUBE bucket cylinder hydraulics

2шт.

53

195-21

WASHER,5/16"

Bucket cylinder hydraulics

2шт.

54

131-4

LOCK NUT,5/16"-18, GB

Bucket cylinder hydraulics

2шт.

55

D40657

HOSE ASSY.

VALVE to bucket cylinder, 40" long, bucket cylinder hydraulics

2шт.

56

D40655

TUBE

CYLINDER bucket, hydraulics, closed end

1шт.

57

D40647

TUBE

CYLINDER bucket, hydraulics, rod end

1шт.

58

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

MALE straight, bucket cylinder hydraulics

2шт.

59

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal, Bucket cylinder hydraulics

1шт.

60

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

TUBE to bucket cylinder hydraulics

2шт.

61

D38648

BLOCK

SPACER camp, bucket cylinder hydraulics

2шт.

62

D42628

CYLINDER

HYDRAULIC bucket cylinder, 4" I.D. x 27-1/4" stroke, parts list page 177

1шт.
