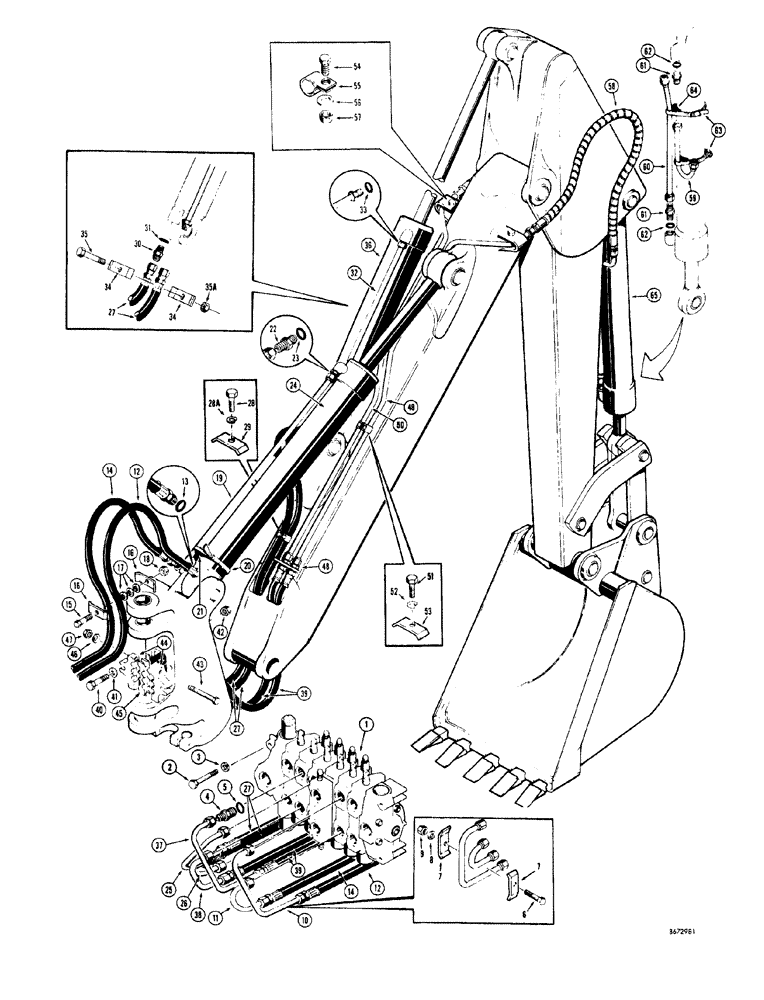

Запчасти Case 34 (154) - BOOM, CROWD AND BUCKET CYLINDER HYDRAULICS USED BEFORE SERIAL NO. 1022951

1

REF

INSTRUCTION

VALVE backhoe control, see Figure 188 for proper valve

1шт.

2

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

Lower mounting hole in valve inlet section

1шт.

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

Upper mounting hole in valve inlet section, mounting hole in valve outlet section

2шт.

3

92-8

LOCK WASHER,1/2"

3шт.

4

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

MALE straight

6шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

6

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS 5/16" - 18 NC x 1-3/4"

3шт.

7

D20045

PLATE ASSY.

CLAMP tube

6шт.

8

95-5

WASHER,3/8" x 7/8" x .083"

WROT standard, 5/16"

3шт.

9

131-4

LOCK NUT,5/16"-18, GB

3шт.

10

D40649

TUBE

SECTION boom, upper port, cylinder hydraulics

1шт.

11

D40642

TUBE

SECTION boom, lower port, cylinder hydraulics

1шт.

12

D40636

X

HOSE upper boom section port to boom cylinder hydraulics, closed end, 58-1/2" long

1шт.

13

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

14

D40637

X

HOSE lower boom section port to boom cylinder hdraulics rod end, 57" long

1шт.

15

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Boom cylinder hydraulics

1шт.

16

R15257

CLAMP

HOSE boom cylinder hydraulics

2шт.

17

95-6

WASHER,3/8"

Wrot standard, boom cylinder hydraulics

1шт.

18

131-6

LOCK NUT,3/8"-16, GC

HEX lock, 3/8" - 16 NC, boom cylinder hydraulics

1шт.

19

D40653

SPARE PART CYLINDER boom hydraulics, rod end

1шт.

20

214-275

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

TUBE to boom cylinder hydraulics

1шт.

21

D38648

BLOCK

SPACER clamp, boom cylinder hydraulics

1шт.

22

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Male, straight, boom cylinder

1шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal, Boom cylinder hydraulics

1шт.

24

D40420

SPARE PART CYLINDER hydraulic, boom, 4-1/2" I.D. x 39-3/16" stroke, parts list page 173, when stock is exhausted, order D45503 boom cylinder for service

1шт.

D45503

CYLINDER ASSY.

HYDRAULIC boom cylinder, 4-1/2" I.D. x 39-3/16" stroke, parts list page 173

1шт.

25

D40649

TUBE

SECTION crowd cylinder, upper port

1шт.

26

D40642

TUBE

SECTION crowd cylinder, lower port

1шт.

27

D40634

HOSE

VALVE to crowd cylinder hydraulics, 74-1/2" long

2шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Crowd cylinder hydraulics

1шт.

28a

92-6

LOCK WASHER,3/8"

crowd cylinder hydraulics

1шт.

29

D41160

CLAMP

HOSE crowd cylinder hydraulics

1шт.

30

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

MALE straight, crowd cylinder hydraulics

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal, Crowd cylinder hydraulics

1шт.

32

D40644

SPARE PART CYLINDER crowd, hydraulics, rod end

1шт.

33

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal, Crowd cylinder hydraulics

1шт.

34

D33316

CLAMP

HOSE crowd cylinder hydraulics

2шт.

35

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Crowd cylinder hydraulics

1шт.

35a

131-4

LOCK NUT,5/16"-18, GB

Crowd cylinder hydraulics

1шт.

36

D38491

SPARE PART CYLINDER hydraulic, crowd, 4-1/2" I.D. x 35-1/8" stroke, parts list page 175, when stock is exhausted, order D43575 boom cylinder for service

5 1шт.

D43575

CYLINDER ASSY.

HYDRAULIC cylinder, crowd, 4-1/2" I.D. x 35-1/2" stroke, parts list page 175

1шт.

37

D40640

SPARE PART SECTION bucket cylinder hydraulics, upper port

1шт.

38

D40651

TUBE

SECTION bucket cyllinder hydraulics, lower port

1шт.

39

D40635

HOSE

VALVE to bucket cylinder hydraulics, 58" long

2шт.

40

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Bucket cylinder hydraulics

2шт.

41

195-21

WASHER,5/16"

Bucket cylinder hydraulics

2шт.

42

131-4

LOCK NUT,5/16"-18, GB

Bucket cylinder hydraulics

2шт.

43

13-548

CAP,Hex, 5/16" - 18 x 3", Gr 5

BOLT, Bucket cylinder hydraulics

2шт.

44

D40659

SPARE PART HOSE outer, bucket cylinder hydraulics

2шт.

45

D40795

SPARE PART CLAMP hose, center, bucket cylinder hydraulics

1шт.

46

195-21

WASHER,5/16"

Bucket cylinder hydraulics

2шт.

47

131-4

LOCK NUT,5/16"-18, GB

Bucket cylinder hydraulics

2шт.

48

D26231

NUT

HEX jam, special, bucket cylinder hydraulics

2шт.

49

D40632

TUBE

VALVE to bucket cylinder hydraulics, R.H.

1шт.

50

D40630

TUBE

VALVE to bucket cylinder hydraulics, L.H.

1шт.

51

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bucket cylinder hydraulics

1шт.

52

92-6

LOCK WASHER,3/8"

bucket cylinder hydraulics

1шт.

53

D40236

CLAMP

TUBE bucket cylinder hydraulics

1шт.

54

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Bucket cylinder hydraulics

2шт.

55

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

TUBE bucket cylinder hydraulics

2шт.

56

195-21

WASHER,5/16"

Bucket cylinder hydraulics

2шт.

57

131-4

LOCK NUT,5/16"-18, GB

Bucket cylinder hydraulics

2шт.

58

D40657

HOSE ASSY.

VALVE to bucket cylinder hydraulics, 40" long

2шт.

59

D40655

TUBE

CYLINDER hydraulics, bucket, closed end

1шт.

60

D40647

TUBE

CYLINDER hydraulics, bucket, rod end

1шт.

61

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

MALE straight, bucket cylinder hdyraulics

2шт.

62

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal, Bucket cylinder hydraulics

1шт.

63

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

TUBE to bucket cylinder hdyraulics

2шт.

64

D38648

BLOCK

SPACER clamp, bucket cylinder hydraulics

2шт.

65

D38492

SPARE PART CYLINDER hydraulic, bucket, 4" I.D. x 27-1/4" stroke, parts list page 176, when stock is exhausted, order D42628 bucket cylinder for service

1шт.

D42628

CYLINDER

HYDRAULIC bucket cylinder, 4" I.D. x 27-1/4" stroke, parts list page 177

1шт.
