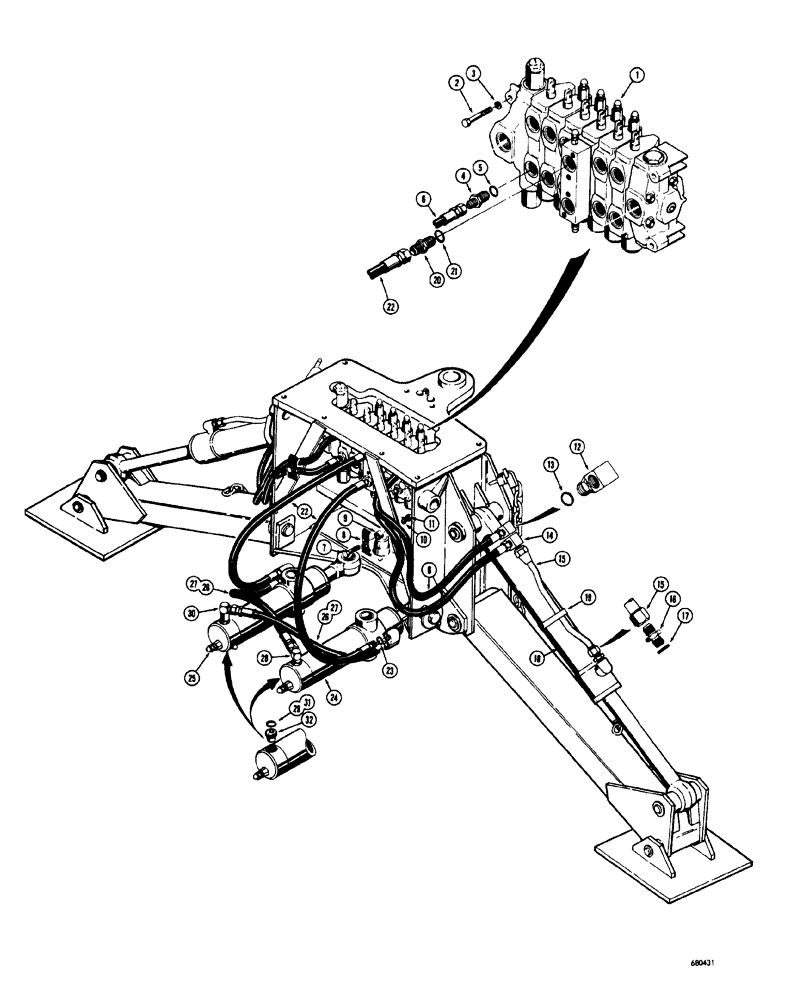

Запчасти Case 34 (152) - SWING AND STABILIZER CYLINDER HYDRAULICS USED ON BACKHOE SERIAL NO. 1022951 AND AFTER

1

REF

INSTRUCTION

VALVE backhoe control, see Figure 188 for proper valve

1шт.

2

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

Lower mounting hole in valve inlet section

1шт.

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

Upper mounting hole in valve inlet section, mounting hole in valve outlet section

2шт.

3

92-8

LOCK WASHER,1/2"

3шт.

4

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

stabilizer cylinder hydraulics

4шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal, Stabilizer cylinder hydraulics

1шт.

6

D40809

HOSE

VALVE to stabilizer cylinder hydraulics, 33-1/2" long

4шт.

7

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Stabilizer cylinder hydraulics

2шт.

8

D33316

CLAMP

HOSE stabilizer cylinder hydraulics

2шт.

9

D33829

BUSHING

SPACER clamp, stabilizer cylinder hydraulics

2шт.

10

95-5

WASHER,3/8" x 7/8" x .083"

WROT standard, 5/16", stabilizer cylinder hydraulics

2шт.

11

131-4

LOCK NUT,5/16"-18, GB

Stabilizer cylinder hydraulics

2шт.

12

D23974

ELBOW

ADJUSTABLE, 90°, stabilizer cylinder hydraulics - closed end

2шт.

13

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL stabilizer cylinder hydraulics

1шт.

14

D26361

FITTING

ELBOW female, 90°, stabilizer cylinder hydraulics

2шт.

15

D43921

SPARE PART TUBE valve to stabilizer cylinder hydraulics, rod end

2шт.

16

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

MALE straight, stabilizer cylinder hydraulics

2шт.

17

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL stabilizer cylinder hydraulics

1шт.

18

D42708

SPARE PART STABILIZER cylinder hydraulics, 4" I.D. x 21-3/8" stroke, parts list page 167

2шт.

19

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

HOSE stabilizer cylinder hydraulics

2шт.

20

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

swing cylinder hydraulics

2шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal, Swing cylinder hydraulics

1шт.

22

D37219

HOSE

VALVE to swing cylinder hydraulics, 30" long

2шт.

24

REF

INSTRUCTION

CYLINDER hydraulic, R.H. swing, 4" I.D. x 11" stroke, see Figures 168 and 170 for proper cylinder

1шт.

25

REF

INSTRUCTION

CYLINDER hydraulic, L.H. swing, 4" I.D. x 11" stroke, see Figures 168 and 170 for proper cylinder

1шт.

26

D39140

HOSE,12.7mm ID x 609.6mm L, SAE 100R2

CROSSOVER swing cylinder hydraulics, 23-1/2" long

2шт.

28

D25667

ELBOW

SPARE PART ADJUSTABLE 90°, R.H. swing cylinder hydraulics

1шт.

29

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL swing cylinder hydraulics

1шт.

30

D36934

FITTING

ELBOW adjustable, 90°, L.H. swing cylinder hydraulics

1шт.

31

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL swing cylinder hydraulics

1шт.

32

D41462

FITTING

RESTRICTOR flow control, swing cylinder hydraulics

2шт.

23

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Seal, Swing cylinder hydraulics

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Seal, Swing cylinder hydraulics

1шт.
