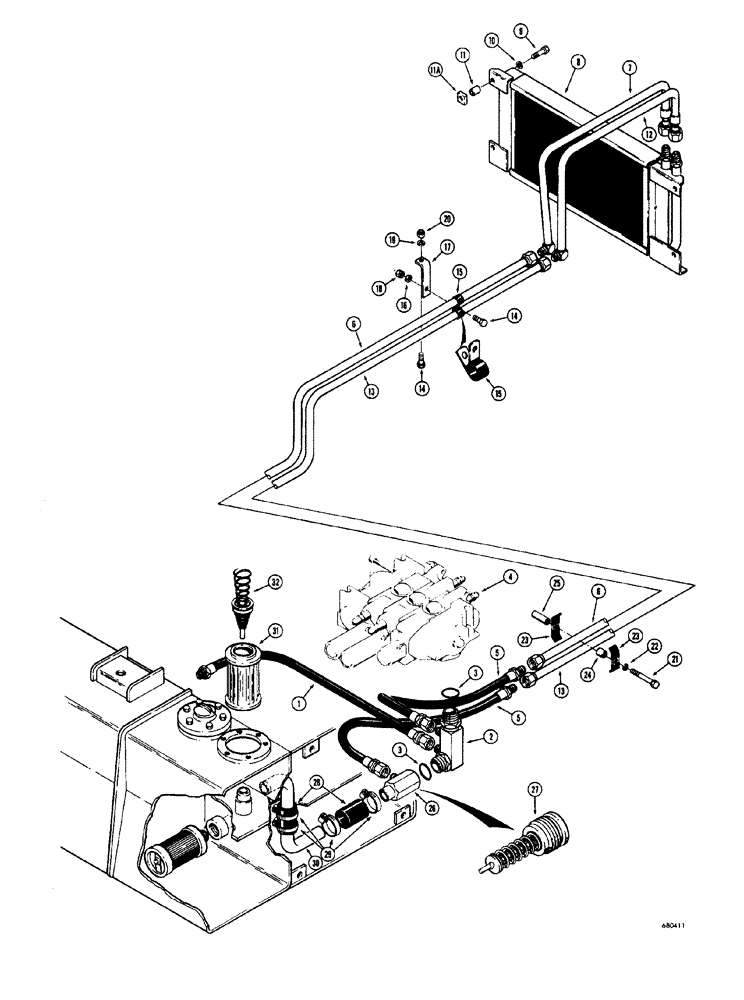

Запчасти Case 34 (148) - HYDRAULIC OIL COOLING SYSTEM

1

D40728

HOSE return from backhoe control valve, 35" long

1шт.

2

D44237

MANIFOLD

OIL hydraulic

1шт.

3

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL

2шт.

4

REF

INSTRUCTION

VALVE equipment control, see 1150 crawler parts catalog for proper valve

1шт.

5

D30850

HOSE ASSY.

COOLER intake and return, 43" long

2шт.

6

D44369

SPARE PART COOLER intake, rear

1шт.

7

D44373

SPARE PART COOLER intake, front

1шт.

8

D43926

SPARE PART OIL

1шт.

9

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

10

92-5

LOCK WASHER,5/16"

4шт.

11

D44594

SPACER

MOUNTING cooler

4шт.

11a

25-285

SQUARE NUT,Sq, 5/16"-18

SQUARE 5/16" - 18 NC

4шт.

12

D44371

SPARE PART COOLER return, front

1шт.

13

D44367

SPARE PART COOLER return, rear

1шт.

14

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

15

49855

CLAMP

TUBE

2шт.

16

195-21

WASHER,5/16"

1шт.

17

D44365

BRACKET tube mounting

1шт.

18

131-4

LOCK NUT,5/16"-18, GB

1шт.

19

92-5

LOCK WASHER,5/16"

1шт.

20

9635082

NUT,5/16" - 18, Gr 5

1шт.

21

13-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

HHCS 5/16" - 18 NC x 3-3/4"

1шт.

22

92-5

LOCK WASHER,5/16"

1шт.

23

D33316

CLAMP

TUBE

2шт.

24

D36040

BUSHING

SPACER tube

1шт.

25

D44595

SPACER, Serial Range: tube-panel

1шт.

D44406

VALVE bypass

1шт.

26

D44407

SPARE PART BYPASS

1шт.

27

D44564

SPARE PART BYPASS

1шт.

28

D42942

HOSE

PRESSURE low

2шт.

29

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

30

D44496

TUBE return line

1шт.

31

D35995

STRAINER ELEMENT

FILTER return line

1шт.

32

D35996

VALVE PRESSURE RELIE

VALVE relief

1шт.
