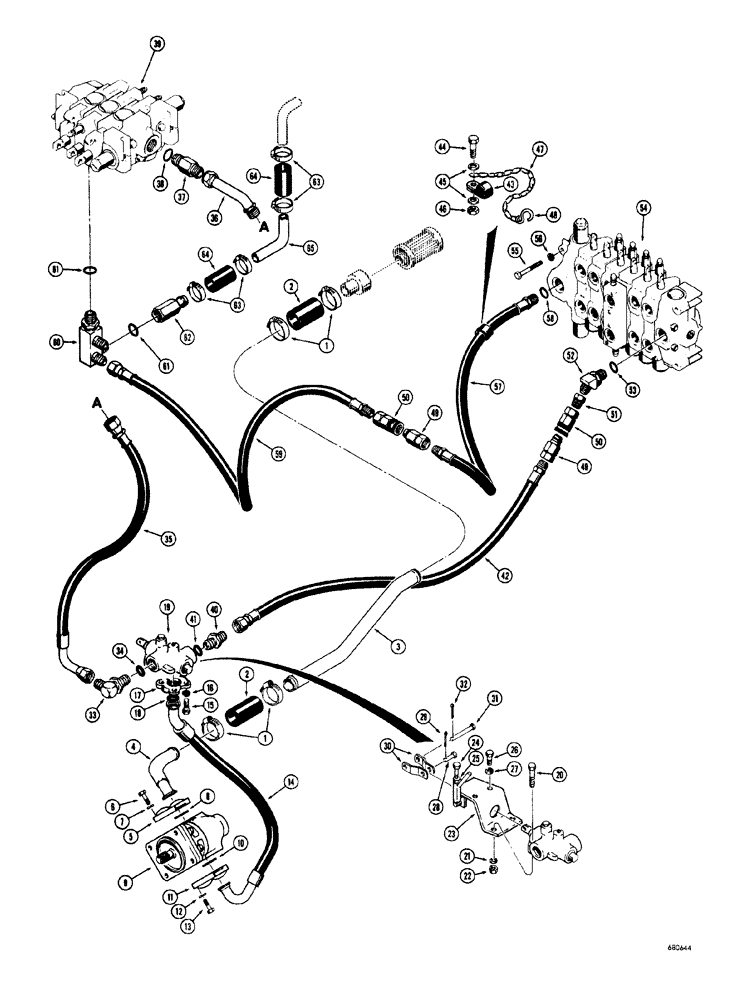

Запчасти Case 34 (142) - BASIC BACKHOE HYDRAULICS (USED BACKHOE SERIAL NO. 1022951 AND AFTER

1

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

HOSE

4шт.

2

D43354

HOSE

PRESSURE low

2шт.

3

D43330

SPARE PART HYDRAULIC reservoir to pump, suction

1шт.

4

D45873

TUBE

SPECIAL

1шт.

5

A14157

FLANGE

SPLIT

2шт.

6

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

7

92-8

LOCK WASHER,1/2"

4шт.

8

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL

1шт.

9

D43382

HYDRAULIC PUMP

45 G.P.M. at 1850 R.P.M. at 1250 P.S.I., dozer models only, see model 1150 crawler parts catalog for breakdown

1шт.

D43363

PUMP

HYDRAULIC, 54 G.P.M. at 1850 R.P.M. at 1650 P.S.I., loader models only, see model 1150 crawler parts catalog for breakdown

1шт.

10

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL

1шт.

11

A14157

FLANGE

SPLIT

2шт.

12

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

13

92-8

LOCK WASHER,1/2"

4шт.

14

D44514

SPARE PART SPECIAL pump to diversion valve, 32" long

1шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

A12306

FLANGE

SPLIT

2шт.

18

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

SEAL

1шт.

19

A19957

VALVE

DIVERSION parts list page 201

1шт.

20

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

21

92-8

LOCK WASHER,1/2"

2шт.

22

25-108

NUT,1/2"-13, G5

Hex

2шт.

23

D36564

BRACKET

MOUNTING valve

1шт.

24

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

25

9635082

NUT,5/16" - 18, Gr 5

1шт.

26

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

27

92-8

LOCK WASHER,1/2"

2шт.

28

141-5

CLEVIS PIN,7/16" x 1.190"

LINK

1шт.

29

132-25

COTTER PIN,3/32" x 5/8"

1шт.

30

D36557

DRAG LINK

, Serial Range: VALVE-lever

2шт.

31

141-3

CLEVIS PIN,5/16" x .940"

Link

1шт.

32

132-25

COTTER PIN,3/32" x 5/8"

1шт.

33

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Male

1шт.

34

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

35

D44513

SPARE PART DIVERSION valve to equipment control valve, 39" long

1шт.

36

NLS

NO LONGER SERVICED

TUBE diversion valve to equipment control valve

1шт.

37

D43379

ADAPTER

CONNECTOR male, special

1шт.

38

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL

1шт.

39

REF

INSTRUCTION

VALVE loader or dozer control, see model 1150 crawler parts catalog for proper valve

1шт.

40

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Male, Straight

1шт.

41

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

42

D40675

SPARE PART

HOSE diversion valve to backhoe control valve, 84" long

1шт.

43

49773

CLAMP

HOSE

2шт.

44

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

45

195-25

WASHER,3/8"

4шт.

46

25-106

NUT,3/8"-16, G5

HEX 3/8" - 16 NC

2шт.

47

35393

AXLE-SHAFT, ARTICULA

SPARE PART HOSE suspension

2шт.

48

A30706

SPARE PART CHAIN

2шт.

49

D37223

SPARE PART DISCONNECT quick, male, parts list page 163

2шт.

50

D37222

COUPLING

DISCONNECT quick, female, parts list page 163

2шт.

51

221-604

REDUCER,Hex, 1" x 3/4" NPT

REDUCING

1шт.

52

D38887

ELBOW UNION

Union Elbow MALE 45°

1шт.

53

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

54

REF

INSTRUCTION

VALVE backhoe control, see Figure 188 for proper valve

1шт.

55

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

Lower mounting hole in valve inlet section

1шт.

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

Upper mounting hole in valve inlet section, mounting hole in valve outlet section

2шт.

56

92-8

LOCK WASHER,1/2"

3шт.

57

D40677

SPARE PART BACKHOE valve to loader or dozer valve, 41" long

1шт.

58

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

59

D40728

HOSE backhoe valve to loader or dozer valve, 35" long

1шт.

60

D44237

MANIFOLD

HYDRAULIC

1шт.

61

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL

2шт.

62

D44406

VALVE bypass

1шт.

63

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

64

D42942

HOSE

PRESSURE low

2шт.

65

D44496

TUBE loader or dozer valve to hydraulic reservoir

1шт.
