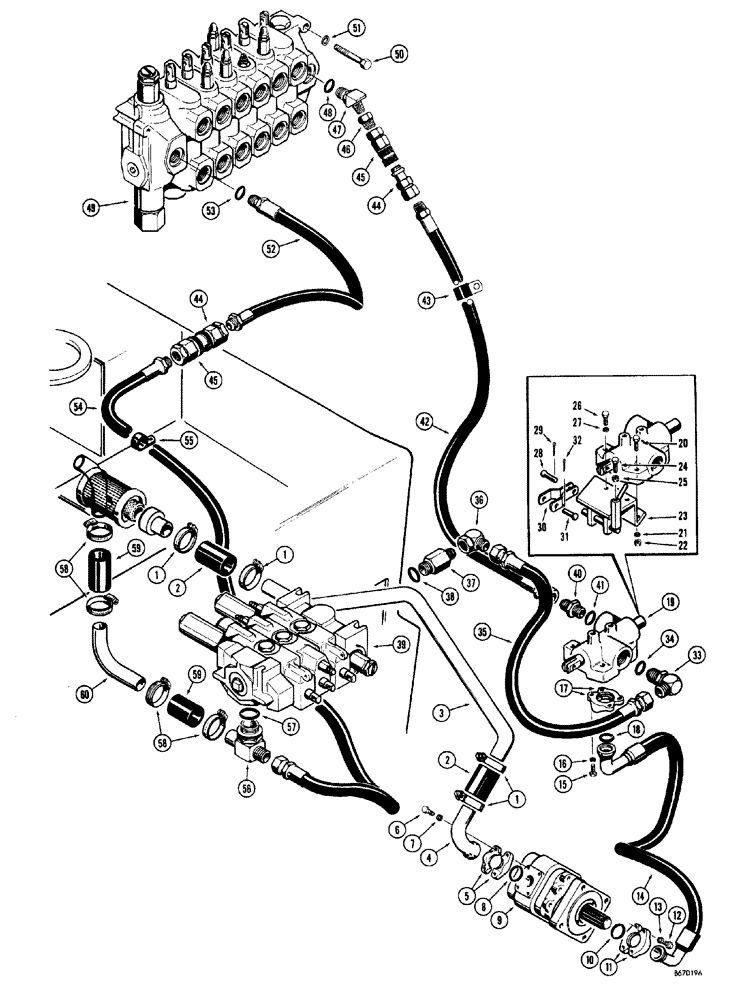

Запчасти Case 34 (138) - BASIC BACKHOE HYDRAULICS (USED BEFORE BACKHOE SERIAL NO. 1022951)

1

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

2

R14169

HOSE

PRESSURE low

2шт.

3

D35998

BUSHING

Tube, hydraulic reservoir to pump, suction

1шт.

4

D35993

FITTING

SPECIAL 90

1шт.

5

A14157

FLANGE

SPLIT

2шт.

6

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

7

92-8

LOCK WASHER,1/2"

4шт.

8

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL

1шт.

9

D40285

SPARE PART 45 G.P.M. at 1800 R.P.M. at 2000 P.S.I., dozer models only, see model 1150 crawler parts catalog for breakdown

1шт.

A16690

PUMP, HYDRAULIC

47 G.P.M. at 1800 R.P.M. at 2000 P.S.I., loader models only, see model 1150 crawler parts catalog for breakdown

1шт.

10

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL

1шт.

11

A12301

CLAMP,Half

SPLIT

2шт.

12

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

4шт.

13

92-7

LOCK WASHER,7/16"

4шт.

14

D39132

HOSE ASSY.

SPECIAL pump to diversion valve, 32" long

1шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

A12306

FLANGE

SPLIT

2шт.

18

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

SEAL

1шт.

19

A19957

VALVE

DIVERSION parts list page 201

1шт.

20

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

21

92-8

LOCK WASHER,1/2"

2шт.

22

25-108

NUT,1/2"-13, G5

Hex

2шт.

23

D36564

BRACKET

MOUNTING valve

1шт.

24

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

25

9635082

NUT,5/16" - 18, Gr 5

1шт.

26

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

27

92-8

LOCK WASHER,1/2"

2шт.

28

141-5

CLEVIS PIN,7/16" x 1.190"

LINK

1шт.

29

132-21

SPARE PART PIN cotter, 3/32" dia. x 5/8"

1шт.

30

D36557

DRAG LINK

, Serial Range: VALVE-lever

2шт.

31

141-3

CLEVIS PIN,5/16" x .940"

Link

1шт.

32

132-25

COTTER PIN,3/32" x 5/8"

1шт.

33

R21880

ELBOW

MALE, 90°

1шт.

34

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

35

D36555

SPARE PART DIVERSION valve to equipment control valve, 44" long

1шт.

36

D25183

ELBOW

SPECIAL 90°

1шт.

37

D35999

SPARE PART CONNECTOR male, special

1шт.

38

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL

1шт.

39

REF

INSTRUCTION

VALVE loador or dozer control, see model 1150 crawler parts catalog for proper valve

1шт.

40

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Male, Straight

1шт.

41

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

42

D40675

SPARE PART

HOSE diversion valve to backhoe control valve, 84" long

1шт.

43

49773

CLAMP

HOSE

1шт.

44

D37223

SPARE PART DISCONNECTquick, male, parts list page 163

2шт.

45

D37222

COUPLING

DISCONNECT quick, female, parts list page 163

2шт.

46

221-604

REDUCER,Hex, 1" x 3/4" NPT

REDUCING

1шт.

47

D38887

ELBOW UNION

Union Elbow MALE 45°

1шт.

48

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

49

REF

INSTRUCTION

VALVE backhoe control, see Figure188 for proper valve

1шт.

50

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

Lower mounting hole in valve inlet section

1шт.

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

Upper mounting hole in valve inlet section, mounting hole in valve outlet section

2шт.

51

92-8

LOCK WASHER,1/2"

3шт.

52

D40677

SPARE PART BACKHOE valve to loader or dozer valve, 41" long

1шт.

53

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

54

D40728

HOSE backhoe valve to loader or dozer valve, 35" long

1шт.

55

49773

CLAMP

HOSE

1шт.

56

D40780

TEE special

1шт.

57

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL

1шт.

58

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

59

D36350

HOSE

PRESSURE low

2шт.

60

D35997

SPARE PART LOADER or dozer valve to hydraulic reservoir

1шт.
