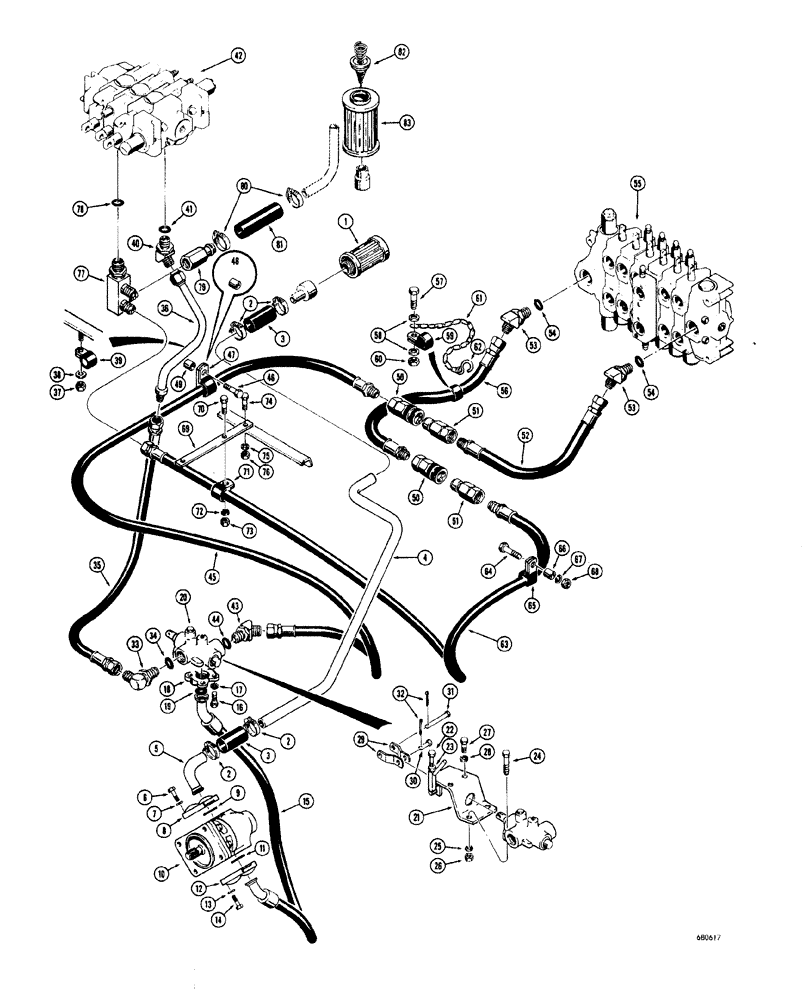

Запчасти Case 34 (134) - BASIC BACKHOE HYDRAULICS

1

D33557

FILTER, ELEMENT

ELEMENT, FILTER TANK hydraulic, suction line

1шт.

2

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

3

R14169

HOSE

PRESSURE low

2шт.

4

D39764

TUBE

TANK to pump, suction

1шт.

5

D35993

FITTING

STEM hose, 90°

1шт.

6

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

7

92-8

LOCK WASHER,1/2"

4шт.

8

A14157

FLANGE

SPLIT

2шт.

9

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL pump inlet

1шт.

10

D42531

HYDRAULIC PUMP

PUMP hydraulic, 37 G.P.M. at 1780 R.P.M. at 2000 P.S.I., tyrone #20250-CG, see 850 parts catalog for parts list

1шт.

11

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL pump outlet

1шт.

12

A12301

CLAMP,Half

SPLIT

2шт.

13

92-7

LOCK WASHER,7/16"

4шт.

14

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

4шт.

15

D39132

HOSE ASSY.

SPECIAL pump to diversion valve, 32" Iong

1шт.

16

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

17

92-6

LOCK WASHER,3/8"

4шт.

18

A12306

FLANGE

SPLIT

2шт.

19

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

SEAL

1шт.

20

A19957

VALVE

DIVERSION parts list page 201

1шт.

21

D36564

BRACKET

MOUNTING valve

1шт.

22

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

23

9635082

NUT,5/16" - 18, Gr 5

1шт.

24

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

25

92-8

LOCK WASHER,1/2"

2шт.

26

25-108

NUT,1/2"-13, G5

Hex

2шт.

27

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

28

92-8

LOCK WASHER,1/2"

2шт.

29

D36557

DRAG LINK

, Serial Range: VALVE-lever

2шт.

30

141-5

CLEVIS PIN,7/16" x 1.190"

LINK

1шт.

31

141-3

CLEVIS PIN,5/16" x .940"

Link

1шт.

32

132-25

COTTER PIN,3/32" x 5/8"

2шт.

33

R21880

ELBOW

ADJUSTABLE, 90°

1шт.

34

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

35

D36555

SPARE PART DIVERSION valve to equipment valve, 44" long

1шт.

36

D39765

SPARE PART, Serial Range: PUMP-valve

1шт.

37

131-4

LOCK NUT,5/16"-18, GB

1шт.

38

195-21

WASHER,5/16"

1шт.

39

49789

CLAMP

SPARE PART TUBE

1шт.

40

D39767

SPARE PART ADJUSTABLE 45°, special

1шт.

41

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL

1шт.

42

REF

INSTRUCTION

VALVE equipment control, see 850 crawler parts catalog for proper valve

1шт.

43

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ELBOW adjustable, 45°

1шт.

44

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

45

D41351

HOSE

DIVERSION valve to backhoe control valve, 62" long

1шт.

46

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

1шт.

47

D34163

CLAMP

HOSE

1шт.

48

D44282

SPACER clamp

1шт.

49

D44283

SPACER clamp

1шт.

50

D37222

COUPLING

DISCONNECT quick, female, parts list page 163

2шт.

51

D37223

SPARE PART DISCONNECT quick, male, parts list page 163

2шт.

52

D41528

HOSE ASSY.

DISCONNECTquick to inlet section at backhoe control valve, 24" long

1шт.

56

D41530

HOSE ASSY.

OUTLET section of backhoe control valve to quick disconnect, 26-1/2" long

1шт.

57

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

58

195-25

WASHER,3/8"

4шт.

59

D30474

CLAMP

HOSE

2шт.

60

25-106

NUT,3/8"-16, G5

HEX 3/8" - 16 NC

2шт.

61

35393

AXLE-SHAFT, ARTICULA

SPARE PART SUSPENSION hose

2шт.

62

A30706

SPARE PART CHAIN

2шт.

63

D41529

SPARE PART HOSE quick disconnect to equipment control valve, 68-1/2" long

1шт.

64

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1шт.

65

D30474

CLAMP

HOSE

1шт.

66

D34032

SPACER

HOSE

1шт.

67

92-8

LOCK WASHER,1/2"

1шт.

68

25-108

NUT,1/2"-13, G5

Hex

1шт.

69

D43276

BRACKET hose

1шт.

70

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

71

D30474

CLAMP

HOSE

1шт.

72

92-8

LOCK WASHER,1/2"

1шт.

73

25-108

NUT,1/2"-13, G5

Hex

1шт.

74

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

75

92-6

LOCK WASHER,3/8"

2шт.

76

25-106

NUT,3/8"-16, G5

HEX 3/8" - 16 NC

2шт.

77

D44237

MANIFOLD

SPECIAL

1шт.

78

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL

2шт.

79

D45616

LOCK VALVE

BYPASS

1шт.

80

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

81

D40107

HOSE

PRESSURE low

1шт.

82

D35996

VALVE PRESSURE RELIE

VALVE pressure relief

1шт.

83

D35995

STRAINER ELEMENT

FILTER hydraulic tank, return line

1шт.
