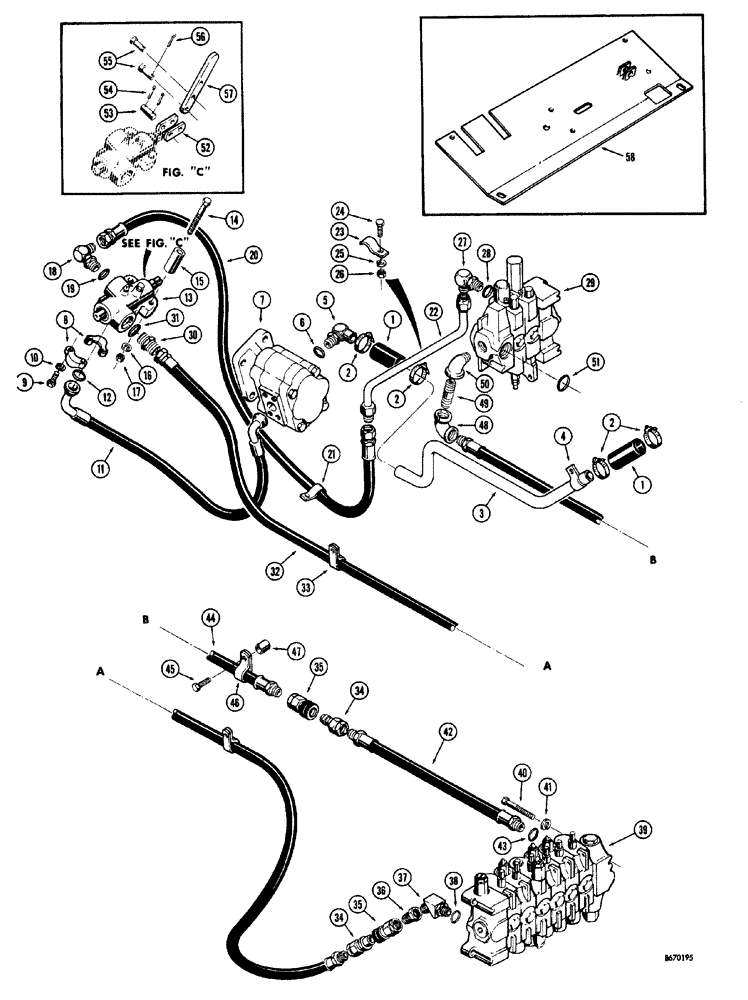

Запчасти Case 34 (130) - BASIC BACKHOE HYDRAULICS

1

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

SUCTION at reservoir

2шт.

2

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

3

D30477

TUBE, Serial Range: reservoir-pump

1шт.

4

D30488

SPARE PART TUBE

1шт.

5

D30511

FITTING

ELBOW adjustable, 90°

1шт.

6

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL

1шт.

7

D31206

PUMP

HYDRAULIC 28-1/2 G.P.M., at 1900 R.P.M. at 1875 P.S.I., commercial shearing #B230-4, see 750 crawler parts catalog for parts list

1шт.

8

A12306

FLANGE

SPLIT

4шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

10

92-6

LOCK WASHER,3/8"

8шт.

11

D34048

SPARE PART PUMP to diverter valve, 36" long

1шт.

12

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

SEAL

2шт.

13

A19957

VALVE

DIVERTER parts list page 201

1шт.

14

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

2шт.

15

D34061

SPACER valve mounting

2шт.

16

92-8

LOCK WASHER,1/2"

2шт.

17

25-108

NUT,1/2"-13, G5

Hex

2шт.

18

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adjustable

1шт.

19

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

20

D34050

HOSE ASSY.

DIVERTER valve to loader or dozer valve, 49" long

1шт.

21

49773

CLAMP

HOSE

1шт.

22

D30476

SPARE PART VALVE at loader or dozer

1шт.

23

49782

SPARE PART CLAMP tube

1шт.

24

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

25

92-5

LOCK WASHER,5/16"

1шт.

26

9635082

NUT,5/16" - 18, Gr 5

1шт.

27

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adjustable, used with two spool valves

1шт.

D32134

ELBOW UNION

Union Elbow ELBOW adjustable, 90°, used with three spool valves

1шт.

28

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

29

REF

INSTRUCTION

VALVE loader or dozer control, see 750 crawler parts catalog for proper valve

1шт.

30

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Male, Straight

1шт.

31

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

32

D40675

SPARE PART

HOSE diverter valve to backhoe control valve, 84" long

1шт.

33

49773

CLAMP

HOSE

2шт.

34

D37223

SPARE PART DISCONNECT quick, male, parts list page 163

2шт.

35

D37222

COUPLING

DISCONNECT quick, female, parts list page 163

2шт.

36

221-604

REDUCER,Hex, 1" x 3/4" NPT

REDUCING

1шт.

37

D38887

ELBOW UNION

Union Elbow MALE 45 °

1шт.

38

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

39

REF

INSTRUCTION

VALVE backhoe control, see Figure 188 for proper valve

1шт.

40

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

Lower mounting hole in valve inlet section

1шт.

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

Upper mounting hole in valve inlet section, mounting hole in valve outlet section

2шт.

41

92-8

LOCK WASHER,1/2"

3шт.

42

D40677

SPARE PART BACKHOE valve to loader or dozer valve, 41" long

1шт.

43

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

44

D40676

HOSE at loader or dozer valve, 30" long

1шт.

45

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

1шт.

46

49773

CLAMP

HOSE

1шт.

47

D34032

SPACER

CLAMP

1шт.

48

221-378

ELBOW,90 Degree, 3/4" NPT

ELBOW pipe, 90°

1шт.

49

221-217

PIPE,Nipple, 3/4" NPT x 3"

PIPE 3/4" x 3"

1шт.

50

221-1405

ELBOW,45 Degree, 3/4"-14, NPT

ELBOW street, 45

1шт.

51

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL

1шт.

52

D34056

LINK diverter valve spool

2шт.

53

D34036

PIN link, at valve

1шт.

54

132-27

COTTER PIN,3/32" x 7/8"

2шт.

55

B18292

AXLE PIN

PIVOT linkage

2шт.

56

132-25

COTTER PIN,3/32" x 5/8"

2шт.

57

D34057

LEVER

CONTROL diverter valve

1шт.

58

D34069

PLATE floor, front

1шт.
