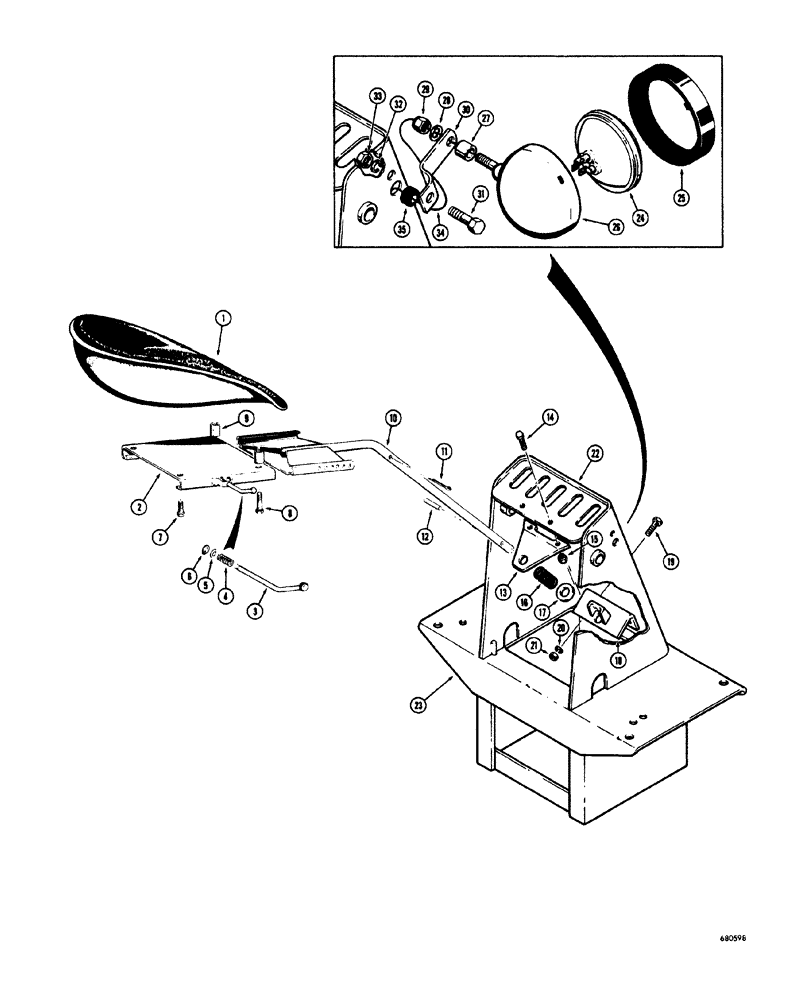

Запчасти Case 34 (128) - SWING DOWN BACKHOE SEAT AND D35913 TAILLIGHT ASSEMBLY

D31309

SEAT

ASSEMBLY backhoe, swing down

1шт.

1

NSS

NOT SOLD SEPARAT

SEAT padded

1шт.

2

D31308

ADJUSTER

SEAT slide, upper

1шт.

3

D40765

LEVER

SEAT adjusting

1шт.

4

D40766

SPRING

LEVER

1шт.

5

195-21

WASHER,5/16"

1шт.

6

A27810

CIRCLIP,#X31, .243" Dia, E-Type

Ring, Retaining, #X31, .243" Dia, E-Type

1шт.

7

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

8

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS 5/16" - 18 NC x 1-3/4"

2шт.

9

D31306

SPACER

SLIDE

2шт.

10

D32380

SEAT

ROD support

1шт.

11

132-95

COTTER PIN,3/16" x 1 1/2"

1шт.

12

138-207

LOCK PIN,1/2" x 2 1/4", Slotted

1шт.

13

D38322

PLATE

MOUNTING seat

1шт.

14

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

15

131-354

LOCK NUT,1/2"-13, GA

HEX lock, 1/2"- 13 NC

2шт.

16

D25773

SPRING

ROD

1шт.

17

B18275

WASHER

SPRING retaining

1шт.

18

D38323

SPARE PART MOUNTING seat

1шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

25-106

NUT,3/8"-16, G5

HEX 3/8" - 16 NC

2шт.

22

D38311

BOOM

CONSOLE backhoe control

1шт.

23

D42590

SPARE PART EXTENSION backhoe control tower, 850 only

1шт.

D42591

SPARE PART EXTENSION backhoe control tower, 1150 only

1шт.

D35913

LAMP

ASSEMBLY taillight, 24 volt, used only on 850 and 1150 crawlers

1шт.

24

D37920

LAMP

LIGHT sealed beam, 24 volt, used only on 850 and 1150 crawlers

1шт.

25

A25210

MOUNTING PARTS

RETAINER light, rubber, used only on 850 and 1150 crawlers

1шт.

26

NSS

NOT SOLD SEPARAT

SHELL light, used only on 850 and 1150 crawlers

1шт.

27

D37048

BUSHING

NYLON used only on 850 and 1150 crawlers

1шт.

28

D37049

WASHER

SPECIAL used only on 850 and 1150 crawlers

1шт.

29

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

HEX lock, 1/2" - 20 NF, used only on 850 and 1150 crawlers

1шт.

30

NLS

NO LONGER SERVICED

BRACKET light mounting, used only on 850 and 1150 crawlers

1шт.

31

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Used only on 850 and 1150 crawlers

1шт.

32

92-8

LOCK WASHER,1/2"

Used only on 850 and 1150 crawlers

1шт.

33

25-108

NUT,1/2"-13, G5

Hex, Used only on 850 and 1150 crawlers

1шт.

34

G13223

WIRE light, used only on 850 and 1150 crawlers

1шт.

35

D37936

GROMMET

WIRE used only on 850 and 1150 crawlers

1шт.
